High Quality Osseocolla / Pastern/ Lime Glue Powder Pulverizer

• Type：Flour Mill
• Application：Flour
• Voltage：380V
• Appearance：Vertical
• Press Materials：Corn
• Press Series：Fourth

=== Base Info ===

• Model NO.：ACM
• Condition：New
• Customized：Customized
• Main Material：304 Stainless Steel for Food Grade
• Certificate：Ce
• Bearing：FAG
• Knife Material：Imported
• Spare Parts：Available
• Transport Package：Wooden Pallet
• Specification：ISO9001
• Trademark：LEAP
• Origin：China
• HS Code：8479820090
• Production Capacity：100 Set,Month

=== Description ===
ACM-5ACM-15ACM-30ACM-50ACM-60ACM-100ACM-120ParameterMatched Powder(kw)Grinding Plate41122304590110Classifying wheel0.750.7545.57.51115Feeder0.350.370.550.550.551.11.1Air Flow(m3/h)250-5001200-20002200-36003500-55004000-75007500-150009000-18000Rotation Speed (r/min)Grinding plate9000560046004200290021001800Classifying wheel900-3500750-2800700-2800650-2600600-2400500-2000400-1800Pulverizatin Fineness(μm)5-300Dimension(l×w×h)mm690×690×7701300×650×7501640×960×10302000×1200×13002000×1200×13002400×1500×16002400×2200×2600N.W(kg)30060010001600200030003500Work Included

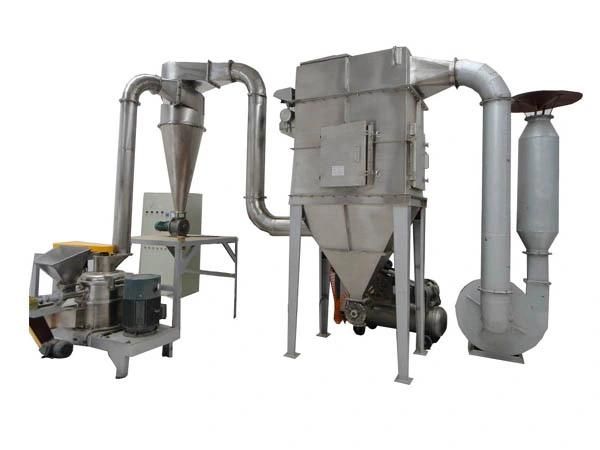

Design and supply of a ACM Complete Milling system for the production .This includes design and supply of all ancillary items necessary for proper operation of the offered equipment including, but not limited to:
- Feed Bin and Feed Screw
- ACM-60 Pulverizing Mill
- Cyclones
- Bag filters/pulse dust collector with rotary valve
- Draft Fan
- Pipes /bracket
- One product collection systems with rotary valve
- Electrical Cabinet
 Related Engineering Cases

Technical support
Upon receiving the deposit, we will offer the following technical services:
1. Design for your production line flow and equipment layout, free of charge;
2. Provide foundation drawings of customer-ordered grinding mills and drawings of related parts, etc;
3. Technical parameters of peripheral equipment will be supplied;
4. Free technical suggestions on adjusting of equipment layout and application.
5. Equipment upgrading (customers need to pay the cost);

Quality assurance
1. Strictly conforming to ISO9001-2000 quality management system;
2. Strict control from purchasing inspection, process inspection to final proofing;
3. Established several QC departments to execute quality control regulations;
4. Detailed quality control examples:
(1) Complete files for quality control and quality feedback;
(2) Strict inspection for the components of our grinding mills, to assure products free of damage and avoid rust-eaten and paint peeling off later on.
(3) Only qualified components will be assembled and total equipment must be inspected completely before sale.

After sale service
1. We will send our technician to the site for guiding equipment installation and commissioning.
2. During the installation and commissioning, we offer operator training service.
3. The quality assurance date is one year after commissioning. And after that, we will collect the cost if provide repairing for your equipment.
4. Maintenance for equipment failure caused by improper handling (appropriate cost will be collected).
5. We offer the components with favorable price and perdurable maintenance.
6. If equipment repairing is needed after quality assurance date is expired, we will collect maintenance cost.
