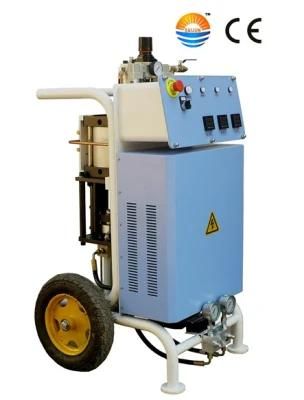

High Pressure PU Machine (FD-411)

=== Base Info ===

=== Description ===

Basic Info.

Model NO. FD-411 Type of Gun Spray and Injection Max Length of Hose 90m(295feet) HS Code 8477800000 Production Capacity 50 Sets /Month

Product Description

Standard configuration
Proportion Fixed Mainframe 1 set

Self-cleaning spray gun 1 set

Feeding pump 2 sets

Heating hose 49.2 feet (15m)

Connecting hose from feeding pump to machine 10 feet(3m)

Connecting hose from heating hose to gun 5 feet(1.5m)

Rings and Tools

Technical Data
The ratio of raw material 1: 1(Fixed)

The viscosity range of raw material 200-1000CPS (Under the operate temperature)

Output 10kg/minuter

Heater power 4500W*2

Heating hose power 1000W

Operate temperature 0° C-70° C

Clean mode Self-clean by air

Power Single phase 220V 50Hz 50A

Pneumatic source 1Mpa 1.32m³ /min

Machine size 800mm*700mm*1150mm

1450mm*400mm*550mm

Gross weight 220KG
