Horizontal Hydraulic Plastic Packing Baler

=== Base Info ===

=== Description ===

Basic Info.

Model NO. BYB-150 Computerized Computerized Certification CE Name Plastic Baler Used for Compacting Waste Plastic Transport Package Nude Cargo Specification 1100*830mm Trademark QIANGYE Origin China HS Code 8479820090 Production Capacity 50 Sets/Year

Product Description

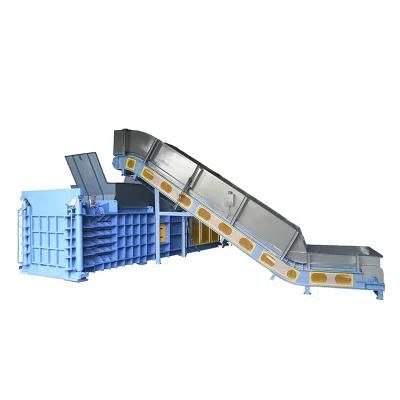

Semi-automatic Horizontal Waste Plastic Packing Baler

* It is closed type hydraulic baler with lifting open-end door, no need to shift balers timely after package, it can push bags continuously.
* It has high strength output door, hydraulic automatic open-end door, convenient operation and safety.
* It configures with PLC program and electric button control, operated simply and equipped with automatic feeding detection, can compress bale automatically.
* The baling length can be set at random, and provides bundling reminder device.
* Artificial packing, pre-install strapping design, it only thread each wire or bundling rope around bale one time to complete skein, save labor.
* Block size and voltage can be customized according to customers' reasonable requirements. Bales weight depends on different materials.
* It has three phase voltage and safety interlock device, simple operation, can connect with pipeline or conveyor line to feed material directly, improve working efficiency.
* The British imported seals, improve the service life of the cylinder.
* Oil pipe joint uses cone links without gasket, has no phenomenon of oil leak.
* Uses Taiwan imported superposition valve group.
* The motor connects with pump directly to ensure 100% concentricity and prolong the service life of the pump.
* Adopt unique concave type of multi-point cutter design to improve the cutting efficiency and prolong service life of the cutter.
* German hydraulic technology to save energy and protect environment.
* Adopt the vessel classification of welding process, to ensure the equipment more stable and reliable.



Model	Capacity	Bale Weight	Bale Qty	Bale Size(L*W*H)
BYB-50T	0.5 to 1.2 Tons/hr	100 to 150 KGS	5 to 8 Bales/hr	(800-1500)*900*600
BYB-60T	1.2 to 1.6 Tons/hr	150 to 200 KGS	5 to 8 Bales/hr	(800-1500)*700*900
BYB-80T	1.2 to 1.6 Tons/hr	150 to 200 KGS	5 to 8 Bales/hr	(800-1500)*914*660
BYB-100T	1.0 to 2.0 Tons/hr	200 to 250 KGS	5 to 8 Bales/hr	(800-1500)*914*830
BYB-120T	2.0 to 4.8 Tons/hr	450 to 600 KGS	5 to 8 Bales/hr	(800-1500)*1100*830
BYB-150T	2.5 to 5.6 Tons/hr	550 to 700 KGS	5 to 8 Bales/hr	(800-1500)*1100*830
BYB-200T	3.0 to 6.0 Tons/hr	600 to 750 KGS	5 to 8 Bales/hr	(800-1500)*1100*830

Note: capacity is based on plastic materials. Bale size can be changed as per buyer's request.
