Not Concentrated 100% Natural Fruit Juice Processing Production Machine

  • Voltage:380V
  • Power:15kw

=== Base Info ===

  • Model NO.:CXP-FRT
  • Customized:Customized
  • Material:Stainless Steel SUS304,SUS316
  • Transport Package:Standard Ocean Packing
  • Specification:100 Tons per day
  • Trademark:Chase
  • Origin:Shanghai
  • Production Capacity:1 Set Per 3 Months
  • Package size per unit product:220.00cm * 260.00cm * 320.00cm
  • Gross weight per unit product:600.000kg

=== Description ===

Basic Info.

Model NO. CXP-FRT Customized Customized Material Stainless Steel SUS304/SUS316 Transport Package Standard Ocean Packing Specification 100 Tons per day Trademark Chase Origin Shanghai Production Capacity 1 Set Per 3 Months

Packaging & Delivery

Package size per unit product 220.00cm * 260.00cm * 320.00cm Gross weight per unit product 600.000kg

Product Description

Not Concentrated 100% Natural Fruit Juice Processing Production Machine

Product Description
Aseptic Filling Machine is the star product of Shanghai Chase. In the past 14 years, our factory has manufactured dozens of fruits juice processing machine for over 30 countries, which won a good reputation. With senior engineers and experienced technicians, shanghai chase is confident to provide our customers superior product with fair price.

Main Features:
1. Customization: 20 Ton/D - 1500 Ton/D available.
2. High juice yield: Up to 95%.
3. Low temperature evaporation resulting improved quality of products.
4. Very fair price as we are manufacuture but not trader.
5. All accessories from world famous brand.


Production Flow
Not Concentrated 100% Natural Fruit Juice Processing Production Machine

Equipment List
Receiving and Elevating
Not Concentrated 100% Natural Fruit Juice Processing Production Machine
1. It is advisable to install cement pools in the plant, which provides the processing line with a constant flow of raw material.
2. Fresh and ripe tomatoes cannot be stored for over 24 hours at temperature of over 30°c.
3. Chain and plate elevators are normally used  for tomatoes elevating, which do little harm to tomatoes. The elevators are equipped with sprayers, letting the tomatoes be re-washed during the processing of elevating.
4. Motors are equipped with stainless steel protective shield, which keep the motors from rain and snow in outdoor.

Washing and Sorting
Not Concentrated 100% Natural Fruit Juice Processing Production Machine

1. Bubble washing machine/floating washing machine washes the tomatoes by floating water, which comes from bubble generator quipped at the bottom of the machine. There is no damage brought by bubble washing while the tomatoes are thorough washed.
2. Waste and sand sink to the bottom and are discharged by our special design.
3. Rolling bar design & speed adjustable.
4. The machine is equipped with waste conveying system, sending the waste directly to tank.

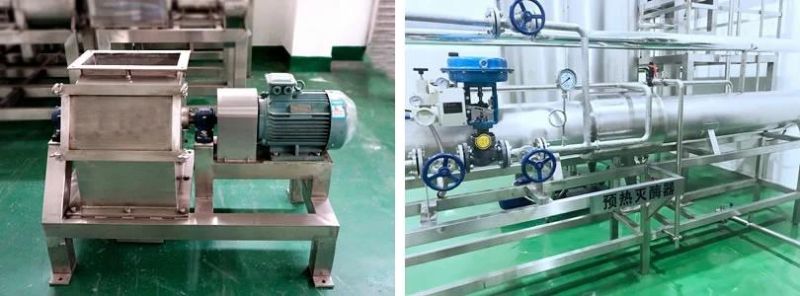

Chopping and Preheating
Not Concentrated 100% Natural Fruit Juice Processing Production Machine

1. Supper-high intensity
2. Crossed blades  design (rather than harmer slice design, which does harm to materials) litter heat generating during chopping work helps protect vitamins in tomatoes.
3. This process helps pectin inside tomatoes, which gives natural in consistency to the tomato paste.
4.
Ii-feed at normal temperature and outlet at 60-90°c. Temperature adjustable.

Refining and Evaporating
Not Concentrated 100% Natural Fruit Juice Processing Production Machine

1. Rotated speed can go as 1470r/min, which generates large centrifugal force and helps increase the juice yield.
2. Every blade goes through dynamic balance test, with the feature of lower noise and smoother operation.
3.
Forced circulation evaporator: Continuous concentration under vacuum and low temperature.


Sterilizing and Aseptic Filling
Not Concentrated 100% Natural Fruit Juice Processing Production Machine

1. Tube-in-tube sterilizer, which contains heating, sterilizing and cooking section  is mainly compose of tube in tube heating-exchanger and feeding pump.
2. Four layers. Auto backtrack of no enough sterilized.

3. Mainly composed of aseptic filling head (single/double), operation system, computer controlling system, weight measurer, operation, platform, and etc.
4. Package forms can be various kinds as customers request


Not Concentrated 100% Natural Fruit Juice Processing Production Machine

Raw material handling capacity(t/d)601502505007501000125015002000
Evaporation FormDouble
vacuum
Double
vacuum
Three vacuumThree vacuumThree vacuumThree vacuumThree vacuumThree vacuumThree vacuum
Water Consumption7.113.121.644.365.744.365.965.979.08
Power(kw)83.8151.5412.4636.2955.41291.61411.11558.11869.7
Steam Consumption(t/h)1.6653.875.229.1415.0120.224.6229.1534,.98
Compressed Air Consumption(t/h)66.266.266.272.272.172.272.272.286.84
Cooling Water Consumtion(t/h)1253173075858251075141016301956
