Hf130y Crawler DTH Drilling Rig for Water Well

=== Base Info ===

=== Description ===

Basic Info.

Model NO. HF130Y Drilling Way Impactor Pipe Diameter 76mm/89mm Bore Diameter ( Screw ) 130-400mm for Rock F=6-20 Host Power 56kw Rotation Speed 0-70r/Min Dimension 4460*1950*2460(mm) Weight 4360kg Bore Diameter(Hammer) 90-310mm Bore Depth 20-120m Transport Package Wooden Case or as Your Requirement Specification CE Trademark Hanfa Origin Zhengzhou City Production Capacity 20sets/Month

Product Description

Product Description
Introduction
1. HF130Y hydraulic crawler drill rig, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection.
2. The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good.
3. HF130Y drilling rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency
4. The drilling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc




Technical Data




Bore diameter(hammer)	90-310mm
Bore depth	20-120m
Air consumption	10-26m³/min
Air pressure	0.7-1.6Mpa(medium) 1.6-2.46Mpa(high)
Pipe diameter	76mm/89mm
For rock	F=6-20
Bore diameter(screw)	Max 400mm
Bore depth	0-30m
Screw pipe diameter	130-400mm
Once promotion	2000mm
Skid pitch	100°
Swinging angle of skid	Left and right total 40°
Rotation speed	0-70r/min
Host power	56KW
Climb ability	35°
Dimension(L*W*H)	4460*1950*2460(mm)
Weight	4360Kg
Walk speed	0-2.5km/h

Working Site





Company Introduction

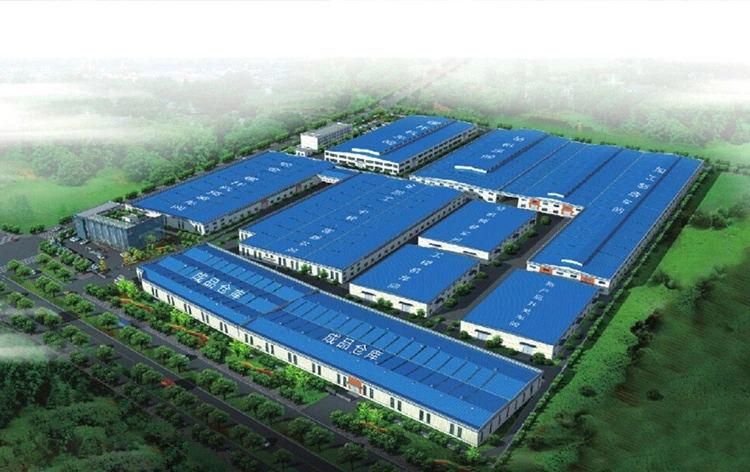

Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and
highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.





1. More than 30 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
