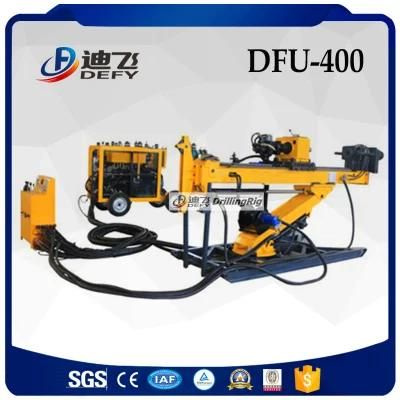

2022 Hot Sale Underground Exploration Drill Rig for Sale

=== Base Info ===

=== Description ===


         Drilling depth
Φ55.5*1500 BQ
500m
Φ69.9*1500 NQ
400m
Φ88.9*1500 HQ
250m
Φ114.3*1500 PQ
150m
The range of spindle rotating speed
490-1200rpm
Rated rotating torque of spindle
1492 N·m
Spindle stroke
1800mm(63 inch)
The max. Lifting force of drill head
110KN
The max. Feeding force of drill head
56KN
The mast inclined angle
15-90°
 Power
explosion~proof electric motor 75KW,1500rpm
 Dimensions
3730×1290×1850mm (L*W*H)
How to choose a suitable drilling rig?
1. What will you do using drilling rig?
---For water project, core sample, soil test, mineral prospect or others?
2. The depth you need?
---For water well, generally, 30-200m. For core sample, 30-600m, even more.
3. Any requirements to hole diameter?
---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call it inversely proportional.
4. Working land condition?
A. soil, sand, weathered land, etc. soft stratum.
B. soil, sand, soft and hard rock stratum, mixed one.
C. Mainly hard rock, like granite.

Based on the above information, experienced engineers will help you recommend suitable machine and price. If you have special demands, please tell us in advance.
