Rubber and Plastic Industry Laboratory 200 Ml Mixer Torque Rheometer

/ 2022-07-04

=== Base Info ===

=== Description ===

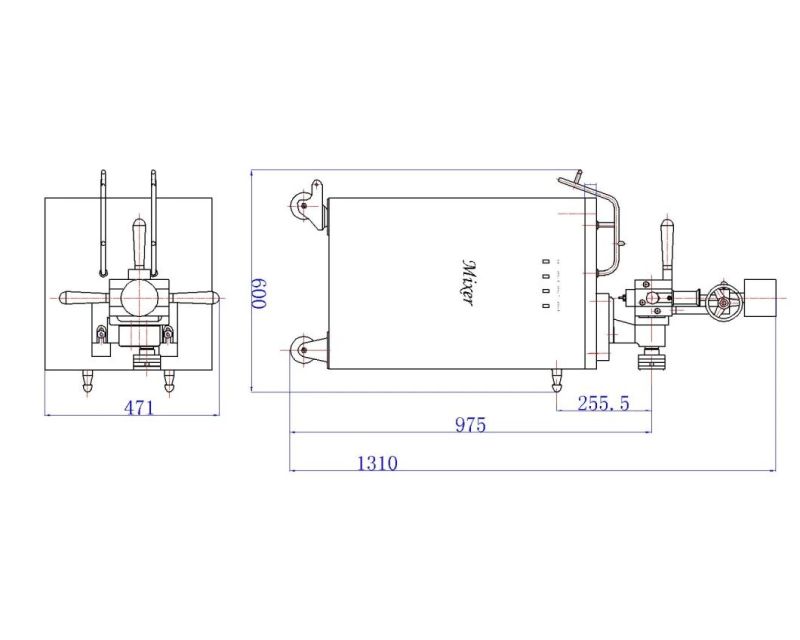

650×600×1800 mm

Types of rotors

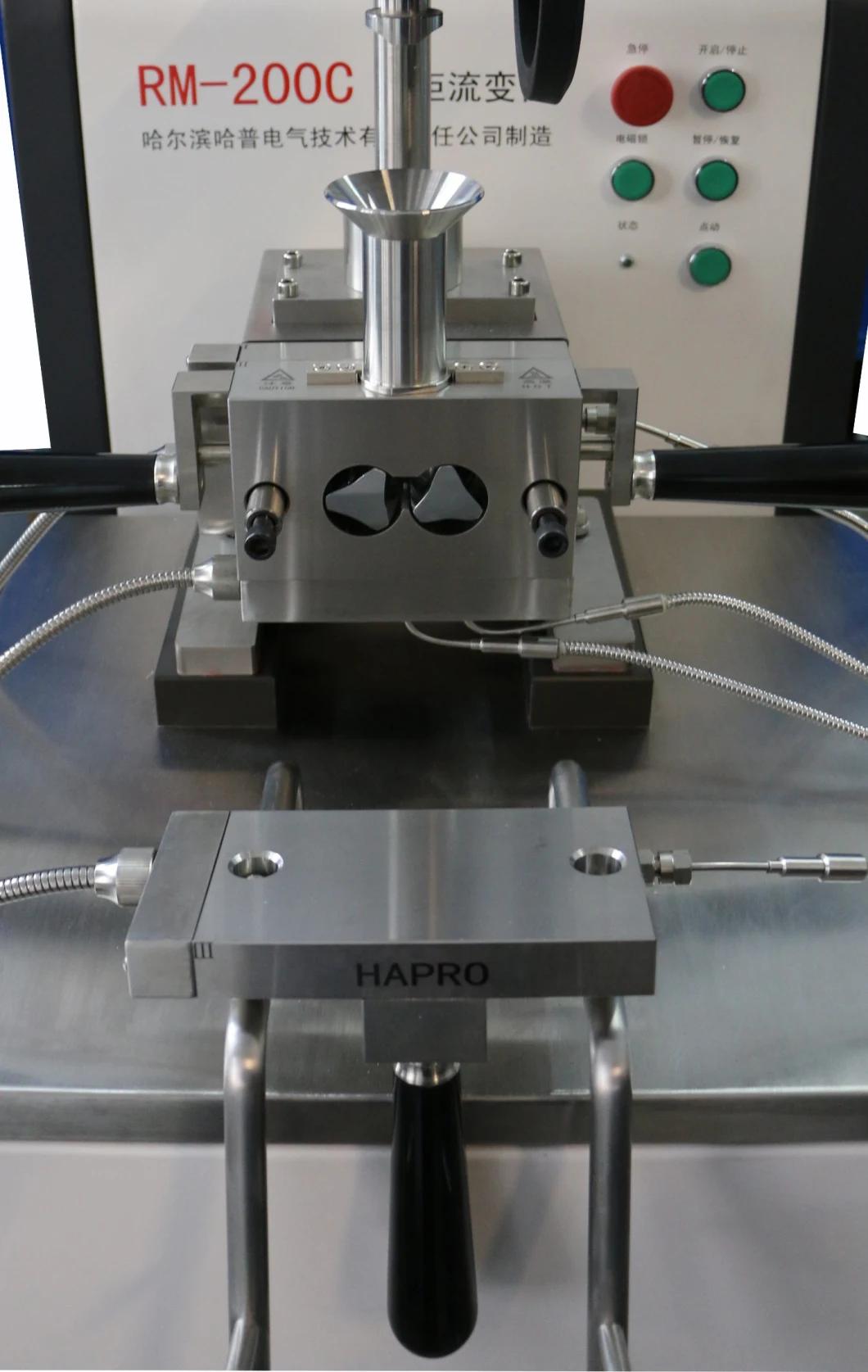

Rotor is the core component of Mixer System. Different structural type of rotors are suitable for different mixing process and directly affect the products quality ,efficiency and energy consumption. Now, we have developed five kinds of rotors for the plastic and rubber materials ,as illustrated below. The rotors are made of special steel ,counter-rotation towards each other at the speed ratio of 3: 2 provide for excellent compounding and high shear mixing characteristics .

Photo	Name	Function
	Roller	It is usually used for testing thermoplastic materials and compounding with additives.
	Banbury	It is usually used for testing natural and synthetic elastomers with regard to flow and cure behavior, compounding with additives .
	Cam	It is usually used for testing thermo-plastic polymer, ceramic composites, food and other high-torque materials.
	Delta	It is usually used for testing cross-linking thermo-set polymer .
	Sigma	It is usually used for testing food, medicine, and plastisol materials, which have low-torque.
