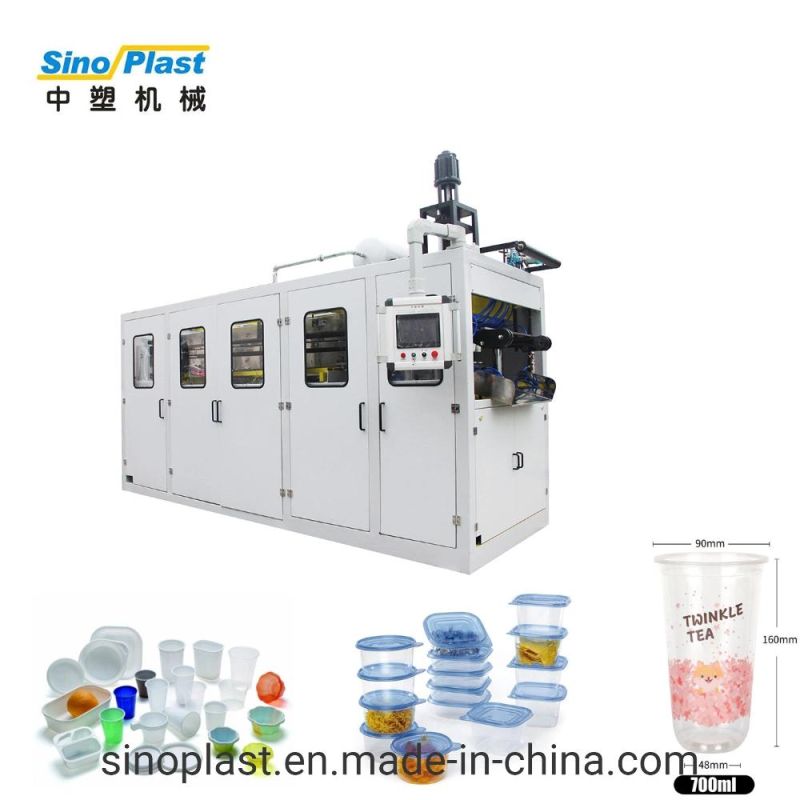

SPE-760A Servomotor Plastic Cup Thermoforming Machine
Automatic Plastic Cup/Glass Thermoforming Machine



I. Usage:

SPE-760A Automatic Cam Plastic Cup Thermoforming Machine is mainly used to from PP/HIPS/PET/PVC/PLA sheet into various kinds of disposable plastic cups, such as hot/cold drinking cup, ice-cream cup, yogurt cup, milk cup, jelly cup, juice cup,etc. It could also make some regular shape products, such as plate, bowl, cover, dish, box, etc with different moulds.

II. Main Features:
1) The stretching of plugs inside of the upper mould are controlled by air cylinder.
2) The sheet feeding is driven by pin chain. The pin chain is controlled by motor with inverter and the feeding length can be set through touch screen.
3) It adopts four pillars to fix the mould. We could adopt four pillars to fix the mould.
4) The top mould is fixed and the bottom mould is driven by mechanical system which is driven by 11KW servomotor. For example, one cycle is 180°, (half circle), 0° represents the bottom mold goes to the lowest position and 180° represents the bottom mold goes to the highest position. Our bottom mold can be stopped at any position (0°-180°) without go down to 0° (the lowest position). When you make shallow products, for example, lids, plates, etc the speed will be faster.

5) The production process include sheet feeding, heating, plugs stretching, forming and in-mould cutting and blow final products out.
6) The machines is controlled by PLC and touch screen.

III. Machine List:
1. Forming Machine1 set
2. Electrical Control Cabinet 1 set
3. Waste Sheet Rewinder1 set

IV. Main Technical Parameter:
ModelSPE-760A
Max. Forming Area760 x 320 mm
ExampleCup Top Dia.=75mm, 24cavities/mold
Running Speed15-32 cycles/min(according to sheet thickness, material used and product shape)
Approx. Sheet width for feeding500 - 660 mm in rolls
Mode of Cutting ArrangementIn mould automatic
Sheet Thickness Range0.20 - 2.0 mm
Required MaterialPLA, PP, GPPS, HIPS, PET, PVC
Max. Forming Depth160 mm (Can be customer design)
Bottom Mold Movement11KW Servomotor
Max. Sheet Reel Dia.800 mm
Heating SystemTop + bottom (10x9+9x9=171pcs), 800W/pc
Heating with IR Ceramic Heater
Temperature Control MethodTemperature Controller and Temperature Control Module
Water Consumption0.5-1.0m³/h(recycled)
Air Consumption3.6m³/min, 0.6-0.8Mpa
Sheet Feeding Method2.2KW Motor
Plug Stretching MethodAir Cylinder
Approx. Dimension4500×1600×2200mm
Approx. Weight6500Kg
