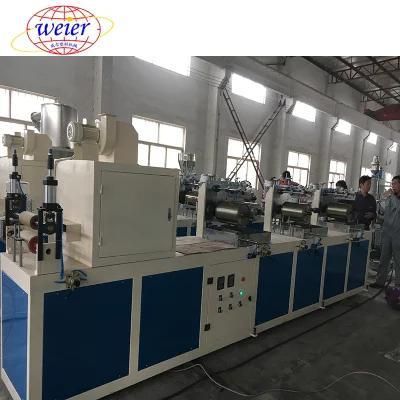

PVC Double Outlet Furniture Dege Band Extrusion Machine with Three Color Printer

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SJSZ45/90 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Non-Computerized Plastic Extruder Name PVC Edge Banding Single Screw Extruder Machine Type PVC Edge Banding Production Line Raw Material PVC+Chemicals, Additives as Per Production Process Width of Edge Bands 15-55mm Thickness of PVC Edge Banding 0.4-3mm Extrusion Output 50kg/H-250kg/H Final Product Furniture Suitable Resin PVC Powder Line Speed 2-15m/Min Edge Band with 17-45mm Transport Package as Per Export Standard Specification SJ-65/28, SJ-45/90 Trademark WEIER Origin Qingdao, China HS Code 84772090 Production Capacity 200setsYear

Product Description

PVC double outlet furniture dege band extrusion machine with three color printer

Summarization

Suitable resin: PVC powder

Edge band with:  17-45MM

Edge band thickness: 0.6-2 MM

Line speed:  2-15m/min

Max output: 40-50kg/h

Air consumption: 0.6m³/min, pressure : 0.2-0.7MPA

Water cycle: 0.8m³/min

Power supply:380±10%, 50Hz, control: 220V±10

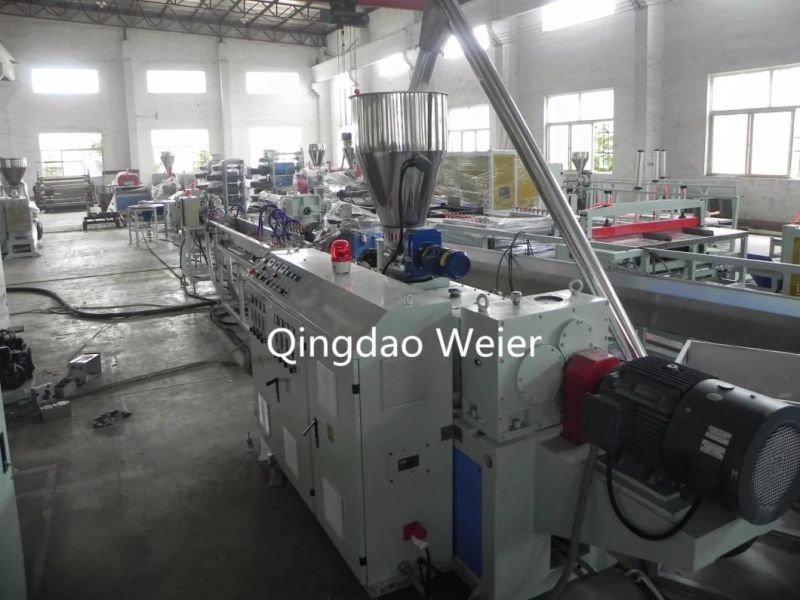

SJ-45/90 double screw extrusion mahcine

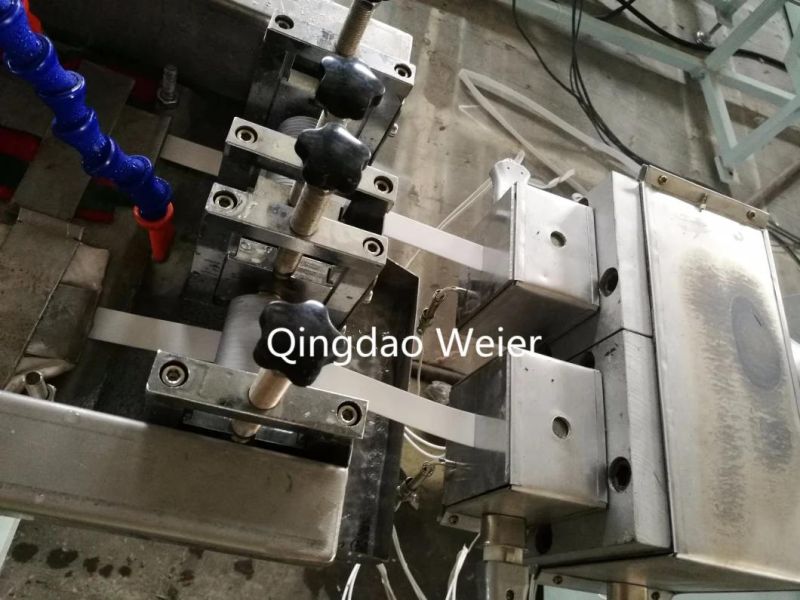

Double outet Mould

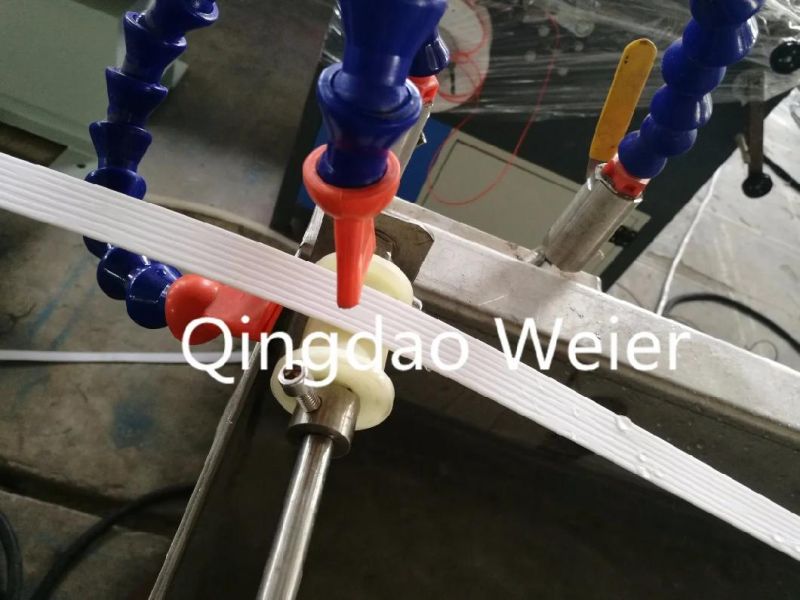

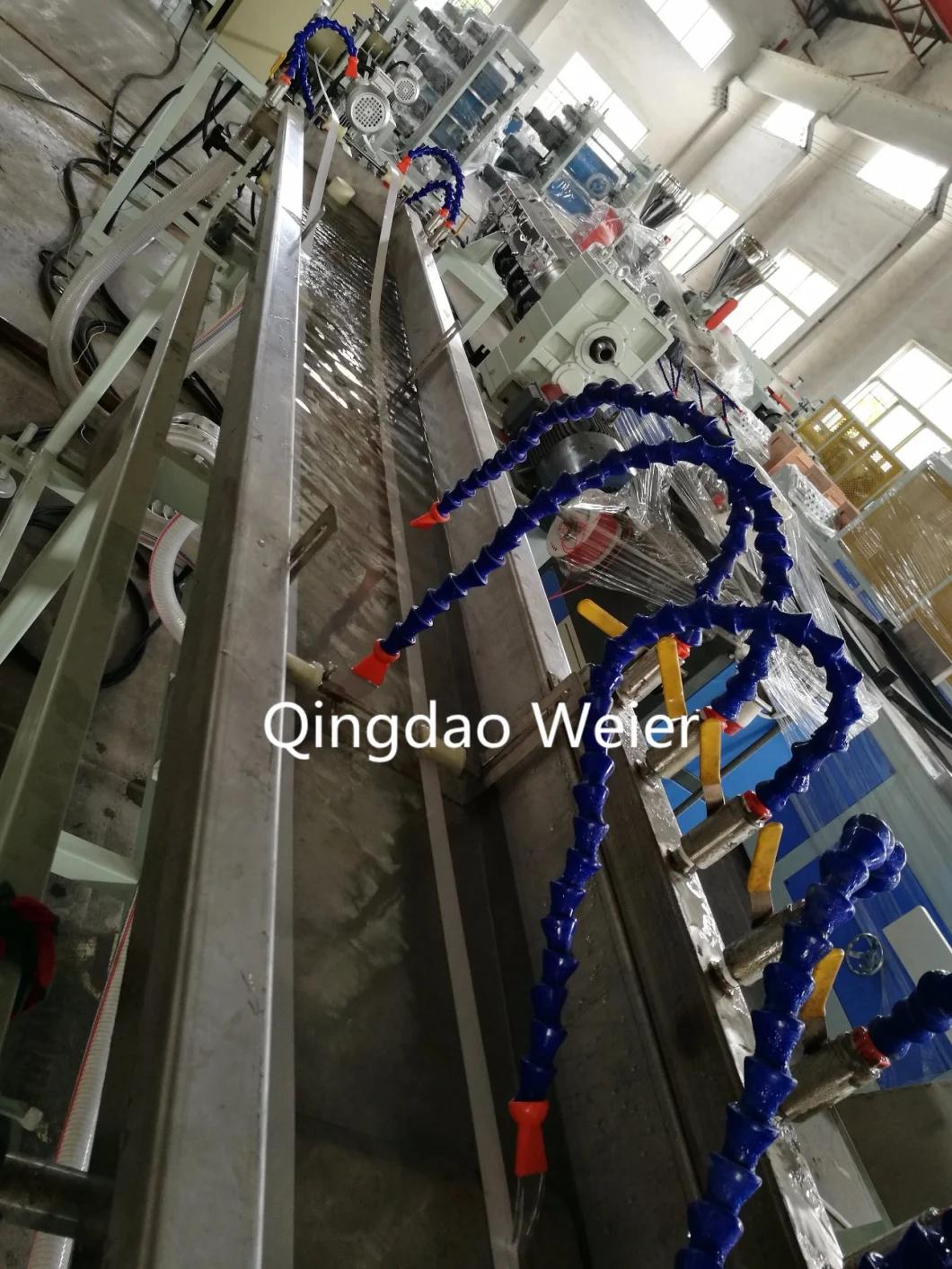

Water cooling tank

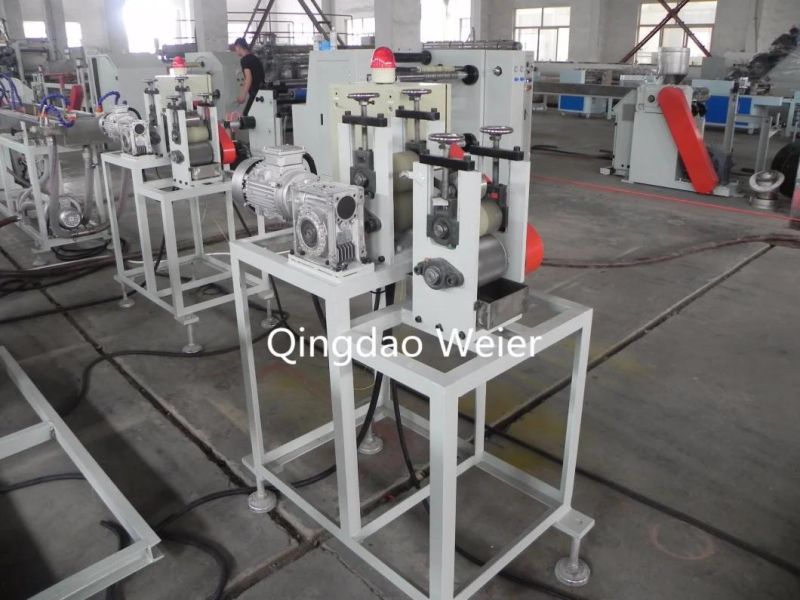

Emboss and haul off machine

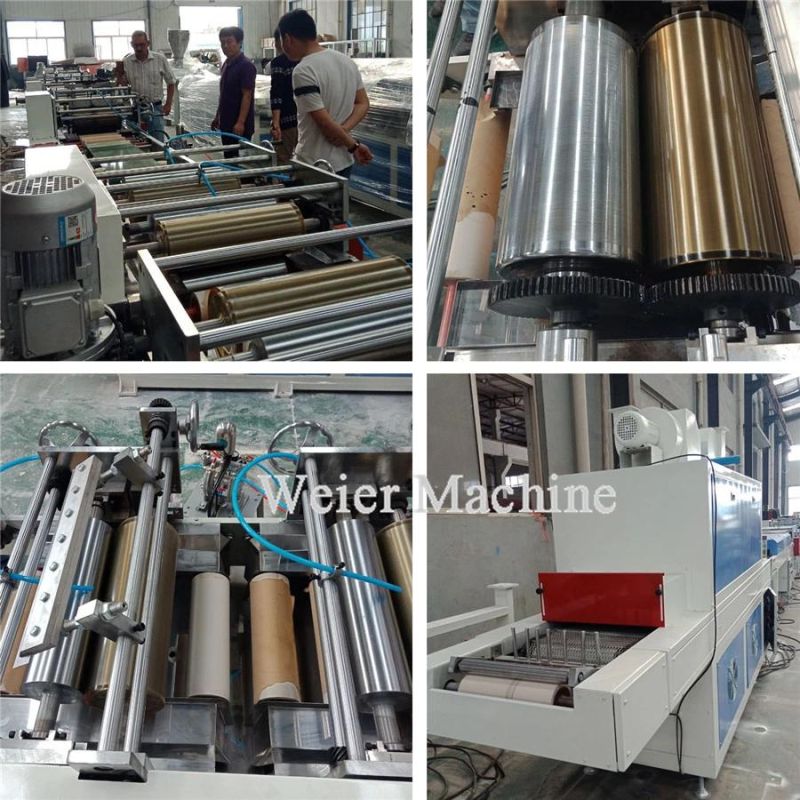

Three color printer for PVC edge band

Model:     Three color printing Max Priting width:   400mmPrinting speed:   2-25m/minElectric heating power:   3.2kwSolidifying power:    3*5kwTransmission power:   0.75kwTotal power:   24.5kwPower supply :   220V 50Hz(60Hz as per clients need)Total length:   25M


Our Service

Pre-sale
We provide presales service in various forms, for example, making investment budget, manufacturing
planning, etc. so that customers make a reasonable plan with less cost.

Investment budgeting---We provide services of product profit analysis, recommendation of machine and
auxiliary equipment and relevant budgeting, human resources allocation and budgeting.

Plant Planning---We provide the mounting dimension of the equipment base, design of equipment layout,
workshop ventilation, water transmission etc.


On-sale
Detailed design of workshop lay-out
Technological information of provided products
Schedule about design, manufacture and installation
Working & Producing process
Training courses for the technician team so that the installation is safe and standard

After-sale
For customers buying our products, we provide them training so that they can use and maintain the
machine independently.
We will offer to customers technical support in time. If needed, we will offer on-line guidance
and assistance.
We can provide free technical guidance if customers need new equipment, add or rebuild equipment.
We will prioritize the product upgrading of previous customers.

Packing details
1.The machine body is covered by waterproof film firstly, and then fixed on exported wooden
pallets with bolts and wires.
2.The electric controlling parts and spare parts are loaded separately in wooden box.
3.The auxiliary equipments are packaged in wooden box as well.
4.All wooden material is fumigation certificated and safe for exporting to all over the world.
wooden packaging is 49.5USD/m3.

Our Company
Qingdao Weier Plastic Machinery Co., LTD is the director member of WPC (Plastic &Wood
Production Council of Chinese Plastic Community), now we are Plastic Engineering Technology
Research Institute of Qingdao Science and Technology University Test and Industrialization center.

  We cooperated with many domestic universities to develop special plastic machines to meet
domestic and foreign customer's requirement and have a strong association with many
macromolecule and chemical majors of many universities. At the same time we bring in and
absorb advanced processing engineering of foreign plastic machines to realize chain service
of technique and machines.
