9060 CO2 Laser Engraving Machine Laser Cutting Machine

• Cooling System：Water Cooling
• Technical Class：Pulse Laser
• Applicable Material：Nonmetal
• Structure Type：Desktop
• Laser Classification：Solid Laser
• Laser Technology：Laser Control Fault Cutting

=== Base Info ===

• Model NO.：J-9060
• Transport Package：Plywood Case
• Specification：135x94x59cm
• Trademark：Refine
• Origin：China
• HS Code：8479
• Production Capacity：1000 Set,Sets Per Month

=== Description ===

Basic Info.

Model NO. J-9060 Transport Package Plywood Case Specification 135x94x59cm Trademark Refine Origin China HS Code 8479 Production Capacity 1000 Set/Sets Per Month

Product Description

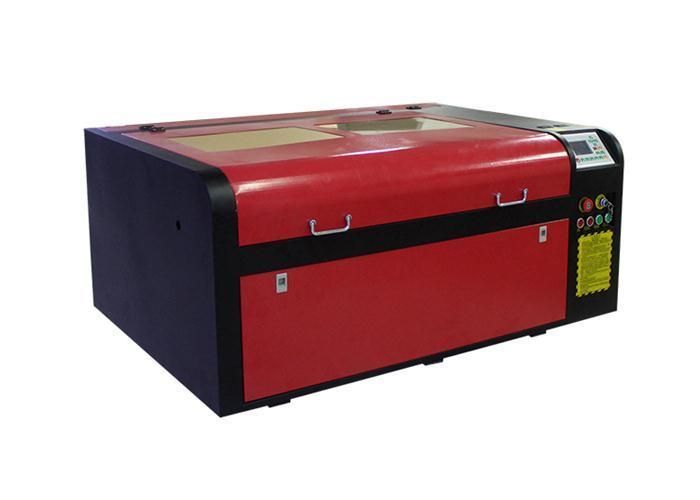

9060 CO2 laser engraving machine laser cutting machine



Laser cutting and engraving machine for professional use
Cut and engrave non-metallic materials with a maximum depth of 7mm
Works with materials in acrylic, leather, rubber for stamp, eva, mdf, glass, jeans, bamboo, porcelain etc.
Supports CAD and CorelDraw files
It features an aluminum cutting table that reduces damage to the material due to laser reflection
Cutting table with waste tank
Safety alarm in case of overheating
Large memory capacity making it possible to work offline Motorized up-down platform.


Tech information:

Model	J9060
Laser  type	Hermetic C02 glass tube
Support software	Ruida software support CAD output
min carving character	words2*2cm/Number 1*1cm
working area	900*600mm
working speed	0-1000mm/s
cutting depth	0-15mm
cooling way	water cooling
Work enviroment	5-40ºC    5-95% humidity










Specifications:
Cutting area: 900x600mm
Laser Power: 60W/80W
Power Supply: 60W/80W
Laser System: Laserwork (RuiDa)
Reflective lens F25: Internal
Focus F20 Lens: Internal
Cooler: Professional Cooling Cw3000
Maximum processing speed: 30000mm / min.
Maximum scanning accuracy: 2500dpi
Memory capacity: 128mb
Position accuracy: 0.01mm
Supported image formats: HPGL / BMP / DXF / NC / DWG / PLT
Cutting thickness: 7 mm
Packing size :135x94x59cm
Gross wet: 160kg  Net weight:105kg


FAQ:

1.Q:Why should you choose us?
A:If you choose us, you will get best quality, best service, best price, best warranty.

2.Q:I'm not familiar with the machine.
A:You just need to tell us materials, working size and thickness. I will recommend you the right machine.

3.How to operate the machine
A:We will deliver English manual and video with the machine to you. If you still need our help, please contact us.

4.Q:How can I get the sample to check you quality ?
A:If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.

5.Q:Do the machine can be customized according my requirements?
A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.

6.Q:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available.
