800 kg/h double filter drum auto combined oil press machine

• After-sales Service：video support
• Warranty：1 year
• Type：Efficient Fine Filter Oil Press
• Application：All
• Voltage：380V
• Appearance：Horizontal

=== Base Info ===

• Model NO.：6yl-165B
• Press Materials：All Oil Seeds
• Press Series：Fifth
• Condition：New
• Customized：Customized
• Feature：Double Filter Drum
• Capacity：700-800kg,H
• Delivery Time：5days
• Power：30+2.2kw
• Transport Package：Wooden Box
• Specification：CE
• Trademark：VIC
• Origin：China
• HS Code：847920000
• Production Capacity：1000PCS,Month

=== Description ===

Basic Info.

Model NO. 6yl-165B Press Materials All Oil Seeds Press Series Fifth Condition New Customized Customized Feature Double Filter Drum Capacity 700-800kg/H Delivery Time 5days Power 30+2.2kw Transport Package Wooden Box Specification CE Trademark VIC Origin China HS Code 847920000 Production Capacity 1000PCS/Month

Product Description

800 kg/h double filter drum auto combined oil press machine
Application:
6YL-B screw oil press is a new type oil press produced to meet customers' requirement for raw oilseeds pressing both hot press and cold press. Its characterized by its reasonable structural design, advanced performance and features.

It is suitable for both direct pressing with pre-processing or not from oil crops such as rape seed, peanut, sunflower seed etc depends on oil seeds. The machine is more advanced up to now with large throughput, high output rate, the finaly oil is pure without impurity and foam. If its equipped with our automatic loading machine could completely realize automatic production.

Advantage of combined oil press machine:1.Simple and easy operation,one key to start without other operating
2.High oil yield to the highest 97%
3.Reliable transmission systems are mostly helical gears with greater torque
4. Pure copper motors are more powerful and less failure rate
5. Reasonable design and configuration of strip and round row ensure faster oil output and higher oil yield
6. Stainless steel oil guide plate is cleaner and more sanitary
7 Advanced automatic stirring forced feeding system ensures the uniformity and continuity of feeding
8.Convenient and labor-saving adjustment and disassembly system facilitates product adjustment and maintenance
9.The vacuum filter system makes the oil quality better.
 Technical data:

Model	6YL-80B	6YL-100B	6YL-120B	6YL-160B	6YL-165B
Capacity	100kg/h	200kg/h	300kg/h	500kg/h	800kg/h
Power	5.5kw+0.75kw	7.5kw+1.1kw	15kw+1.1kw	18.5kw+2.2kw	30kw+2.2kw
Size(mm)	1450x700x1700	1900x1375x1700	2200x1500x1900	2200x1700x1910	2200x1700x1910
Weight	850kgs	1000kgs	1200kgs	1400kgs	1600kgs

Main sturucture:

More pictures and details
Helical gear reducer transmits more torque and presses more cleanly

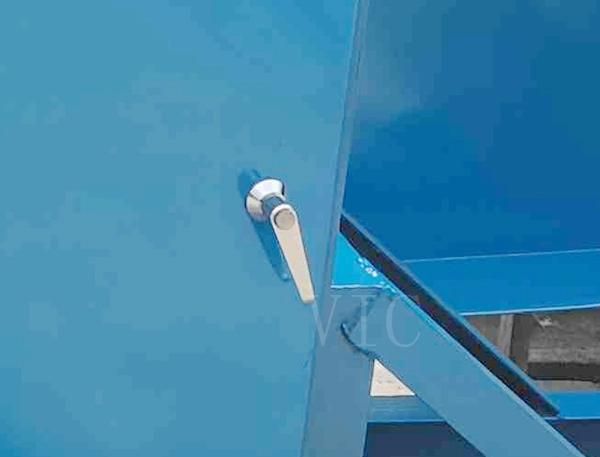

Push-type locking stainless steel handle is more convenient to use

Longer adjustment wrench saves effort

Stainless steel lid with observation window is safe and convenient

Double filter cartridge with filter cloth and copper valve is more efficient

The bottom-mounted vacuum unit saves space and safe



Package

Our facatory
