Sjsz110/220 Conical Twin-Screw Lvt/PVC/WPC/Spc Flooring Production Line/Making ...

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SJSZ110/220 Engagement System Conical Meshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Screw Design Conical Twin-Screw Weight ~44.5 Tons Power 485-750kw Per Line Voltage 220-415V / 50-60Hz 3 Phase Function Flooring Sheet Extrusion Certificate Ce, ISO, TUV, UL, CSA Transport Package Wooden Case Packing or Film Specification Production Line layout: 50m (L) * 5m (W) * 8m (H) Trademark Boyu Origin Wuxi China Production Capacity 200 Lines Per Year

Product Description

      SJSZ110/220 Conical Twin-Screw SPC Flooring Production Line



 I. Design parameters


No.	Items	Description
01	Operation conditions	380V/3 phases/60Hz. (or customizable as per different country's standard voltage )
02	Materials used	PVC powder, calcium carbonate, stabilizer, lubricant, small materials. Main Material and proportion: PVC: CaCo3 = 1:1 :2~3
03	Extrusion rate	Daily capacity: 25-32 Tons/ 24 hours  about 3000m2/ day for 4mm finished SPC flooring
04	Product specifications	Maximum width is 1050mm, thickness =2-9mm. Normal finished board width: 980mm      Normal finished board thickness: δ=1.5~4.0mm
05	Total power of whole machine line	About 700KW (The exact total power may something  floating as per different configuration requirements

II.Equipment List & Quantity


No.	Equipment Name	Quantity	Remark
01	Φ110/220 Conical twin-screw extruder	1 Set
02	Extrusion die	1 Set
03	Five-roller calender	1 Set
04	Film unwinding mechanism & magnetic powder controller	2 Units	For two working position
05	Oil roller heating system (integral)	1 Set	4 units
06	Cooling bracket	1 unit
07	Longitudinal edge cutting mechanism	1 unit
08	Traction machine	2 sets
09	Length meter	1 Set
10	Plate shearing machine	1 set
11	Automatic plate lifting and stacking system	1 unit
12	Electric control cabinet	1 unit
13	Cooing water spray tank	1 unit
14	wear layer pre-heat device	1 unit

III.Production Flow

Material mixing → Extruder → Calender→ Cut-to-length →Stacking →UV coating →Saw cutting →
Slick slotting →Backing limitation →QC inspection → Packing

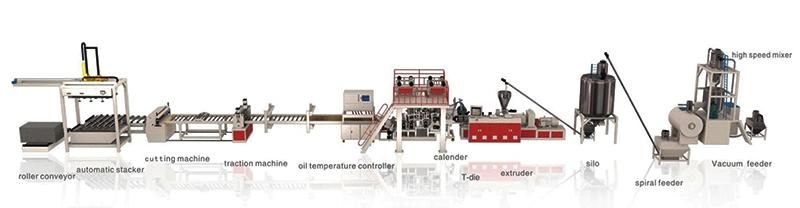

IV. Machine Line Layout


V. Advantages of BOYU WPC Production Machine Line




VI.Services



 VII. Project Case







VII. Boyu Company Profile





VIII. Patents Certificates


BoYu On-line EIR Technology - United States Patent




BoYu On-line EIR Technology - Europe & Taiwan Patents
