PP Pet PS Lid Making Machine with Crossing Hole

=== Base Info ===

=== Description ===

Basic Info.

Model NO. TF-5528 Servo Motor Yaskawa, Japan Transport Package Thermforming Machine Wrap with Film Specification thermforming machine was according to CE standard Trademark Y. E Origin Zhejiang Ruian HS Code 847740 Production Capacity 20sets Thermoforming Machine Per Month

Product Description

Application:
It is suitable to form various plastic cup lids, bowl and container with the materials of PP, PS, EPS, PVC, PET.

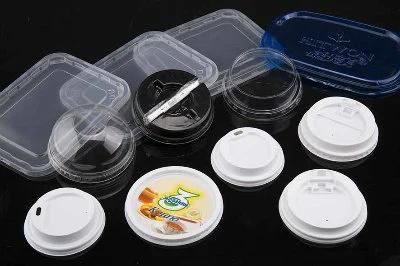

lids can be made on the machine, like coffee cup lid, drink cup lid, yogurt cup lid, food box lid,


Features:
1. To finish the forming, punching and cutting--stacking in one machine, it can save your time and energy.
2. Combination of mechanical, electrical and pneumatic components with PLC auto-control and inverter control create efficient and energy conservation.
3. Touch screen makes the simple, safe and automatic operation. PLC and touch screen adopt Mitsubishi.
4. Upper or lower mold forming method.
5. Feeding servo makes accurate and durable operation.
6. With automatic stacking for lid and container, max 50pcs for stacking on machine. The finished product can be packed directly, save time and labor.
7. High speed as 25circles/min for PP material for stable production. High output for production.

Specification:

Model	TF5528
Max. Forming Area	550*280 mm
Depth of Draw under sheet	60mm Max
Depth of Draw above sheet	60mm Max
Suitable material	PET PP PS EPS PVC
Sheet Width	350-460 mm
Material Thickness Range	0.2-2 mm
Material Roll Diameter	1100 mm
Maximum Rewinding diameter:	700 mm
Cycles per Minute	25 stable production
Power Supply	3-N AC380V±15V
Air Pressure	0.7 Mpa
Cooling	water cooling
Heating power	50 kw
Dimension(L×W×H)	3000*1850*2100 (mm)
Weight	3500kg

PP lid and container forming machine with stacking in our workshop:

Updated 4th generation Automatic PP lid making machine/ Thermoformadora para tapas:


Lid machine shipment:
