V-Belt Drive Electric Control System 1200mm Width FRP Panel Production Line

=== Base Info ===

=== Description ===
Model   SMC1000AModel        SMC1000B(Single Chopped Fiber)     High-end Version        SMC1000B(Double Chopped Fiber)      High-end VersionMax. Sheet Width1150mm1150mmSheet Thickness1-4mm1-4mmDensity1-5g/m²1-5g/m²Single Class Capacity24Ton28TonChain Belt Deviation Rectification ControlPLC ControlPLC ControlFiber Content18-45%18-45%Fiber LengthMax. 25.4mm or multipleone for min. 12.7mmthe other for min. 25.4mmSuitable Viscosity15-48pas15-48pasTotal Power7kw10kwMachine Dimension         (LxWxH)8.5mx2.2mx2.5m10.5mx2.2mx2.5mMachine Weight5t7tCapacity per hour3.5ton4ton
FEATURES AT A GLANCE




ADVANTAGE
1. It adopts advanced mechanical structures & technilogy. 2.It has achieved domestic advanced level with advanced technology and reasonable craft, high degree automation and high outputs.
3. It is PLC digital control,including resin feeding.It can achieve vacuum charging resin to doctor blade.Even mixture, easy cleaning
and more automation.
4. Easy operation, low noise, obvious electricity conservation, small size, compact structure, low energy consumption, high
durability, good looking, etc.
combined with powder collector to absorb the harmful substances to keep the healthy of the worker and prolong the service life of the machine.
5. Increase the operation rate of the material and lower the cost

OUR FACTORY

APPLICATION

A new kind of thermosetting plastic moulding machine
Used for manufacturing of Molding Materials such as automobile spare parts, electrical components, dinner tables and chairs, ship
devices, refragerator, manhole cover and agruculture facilities,etc, widely used in automotive industry, rail vehicles,
construction, electrical, communication engineering, catering appliances, sports equipment etc

It is used to produce Sheet Molding Compound (SMC) which is a new type of thermosetting plastic.

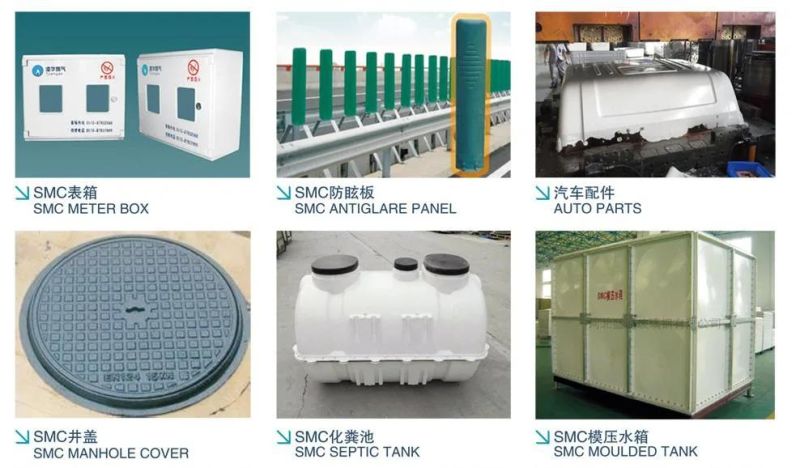

Finished Products

Packaging&Logostics


Quality Inspection&After-sales Service

1. The warranty period for the machine will be one year after the SMC sheet machine is delivered to the customer.2 You can send the technician to the factory to test the machine after the production is finished;
When the SMC sheet machine passed the test, we will stuff the machine into the container and arrange shipment3. I necessary, we can provide technical support and engineer to your factory to help you with installation&debugging


Exhibition
