LDPE LLDPE High Capacity Three Layer Coextruding Film Blowing Machine with Auto Winder

=== Base Info ===

=== Description ===
MLLDPE  LLDPE LDPE  EVAPower of main motor11kw×311kw15kw×11kw15kw/18.5kw/15kwMax. Extrusion Output90kg /h100kg /h120kg /hMatrix specificationφ 200mmφ 250mmφ 300mmSingle-face Thickness of film0.02 -0.10mm0.02 -0.10mm0.02 -0.10mmMax. Reduced diameter of film800mm1000mm1200mmelectric capacity70kw80kw90kwMachine of weight18000kg20000kg22000kgOverall diameter(L×W×H)8800×4600× 8000mm9000×4800× 8500mm9700×5000× 9000mmD. Machine Pictures for Reference:
1. Extruder Unit
Die Head Material: Cr40 Mould Steel
Die Head Heating: 2 Zones
Rotary Die Head: Optional
Screw and Barrel Material: 38CrMoALA
Screw and Barrel Heating:3Zones*3Sets
Heating Ring Material: Cast Aluminum
Screen Changer: Manual Type
Gear Box: Hard Tooth Surface Gear Box
2. Take Up Section
'A' Shape Film Forming Plate: Aluminum Bar Type
Film Bubble Setting Ring: Aluminum Bar Type
Take Up Motor:Three-Phase Asynchronous Motor with Worm Gear Reducer
Take Up Rollers Grasp: Air Cylinder

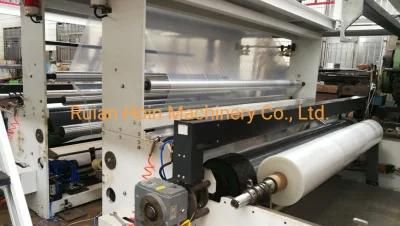

3. Winder Unit
Second Take Up Unit: Air Cylinder
Rewinding Station: Double Stations
Rewinding Motor: Torque Motor
Pinch Roller: Air Shaft Roller

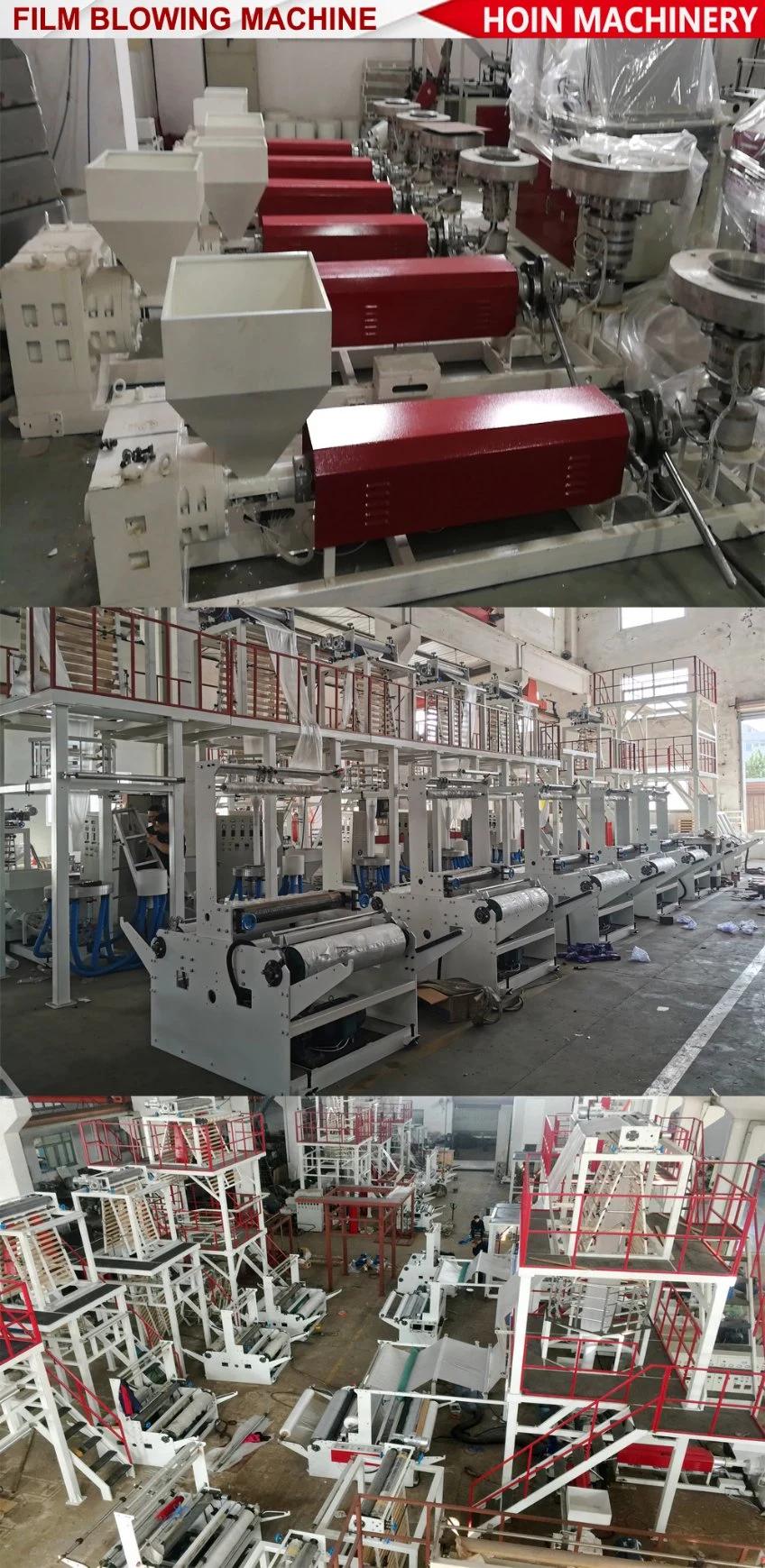

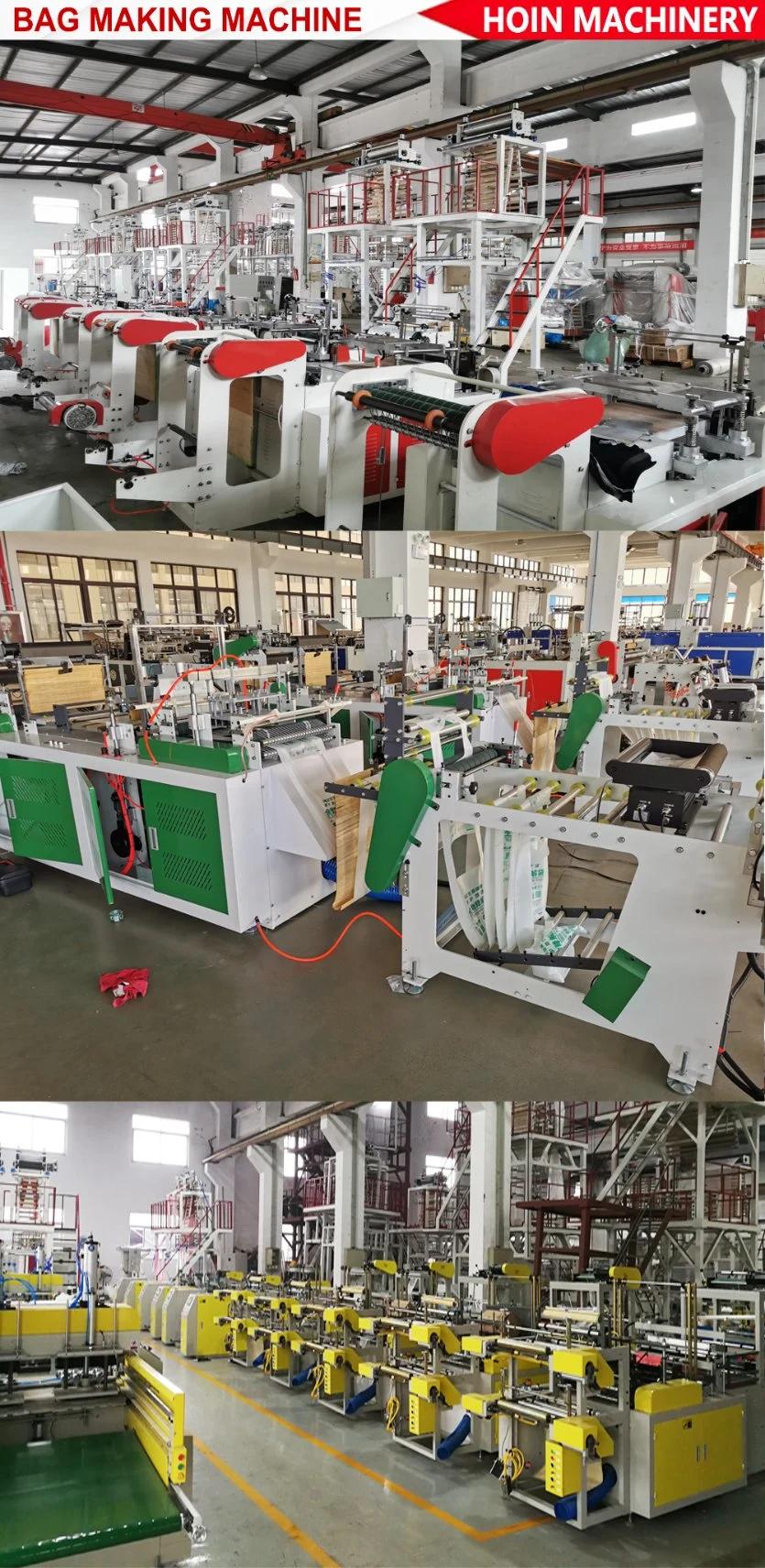

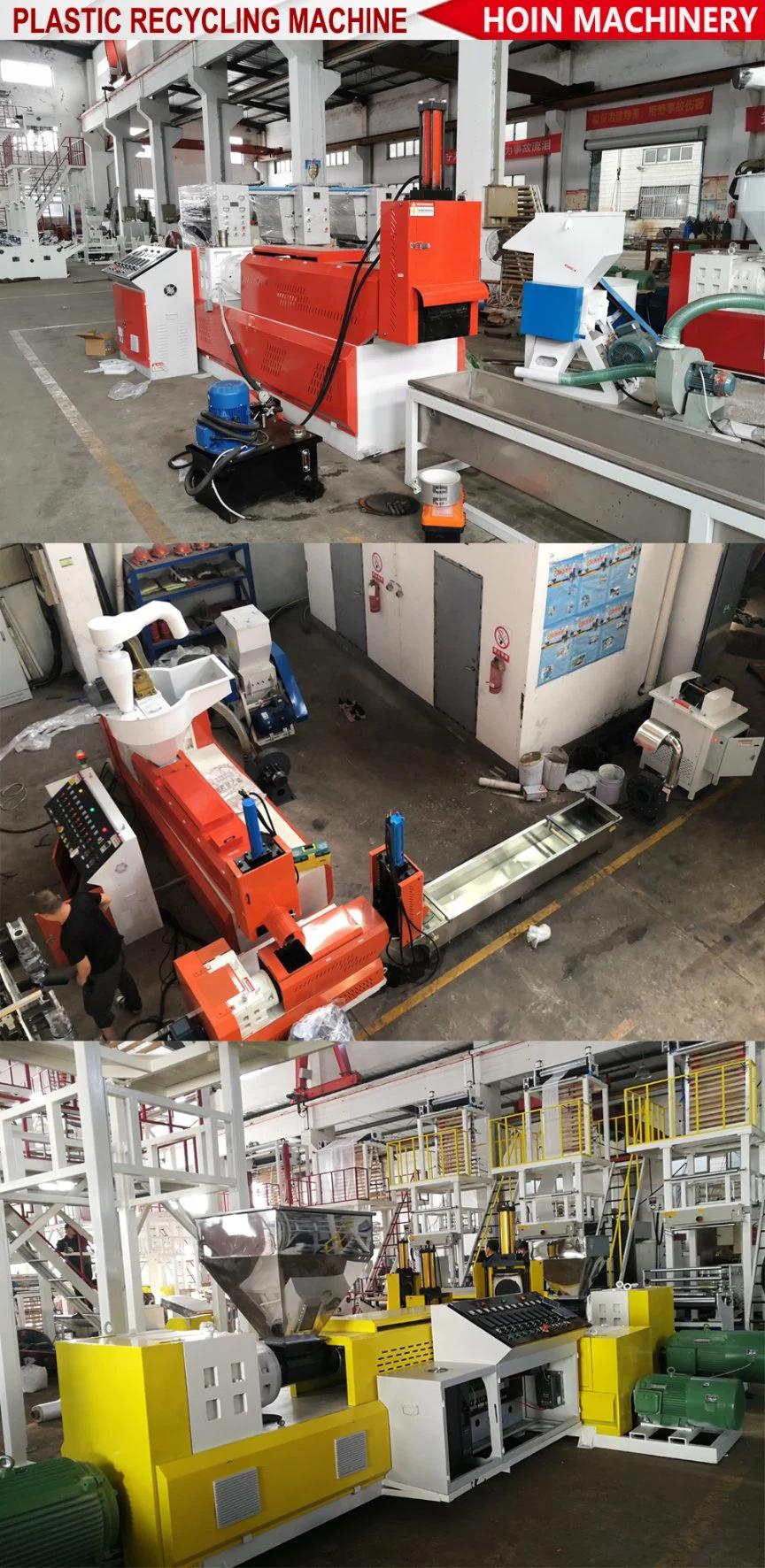

Workshop of HOIN

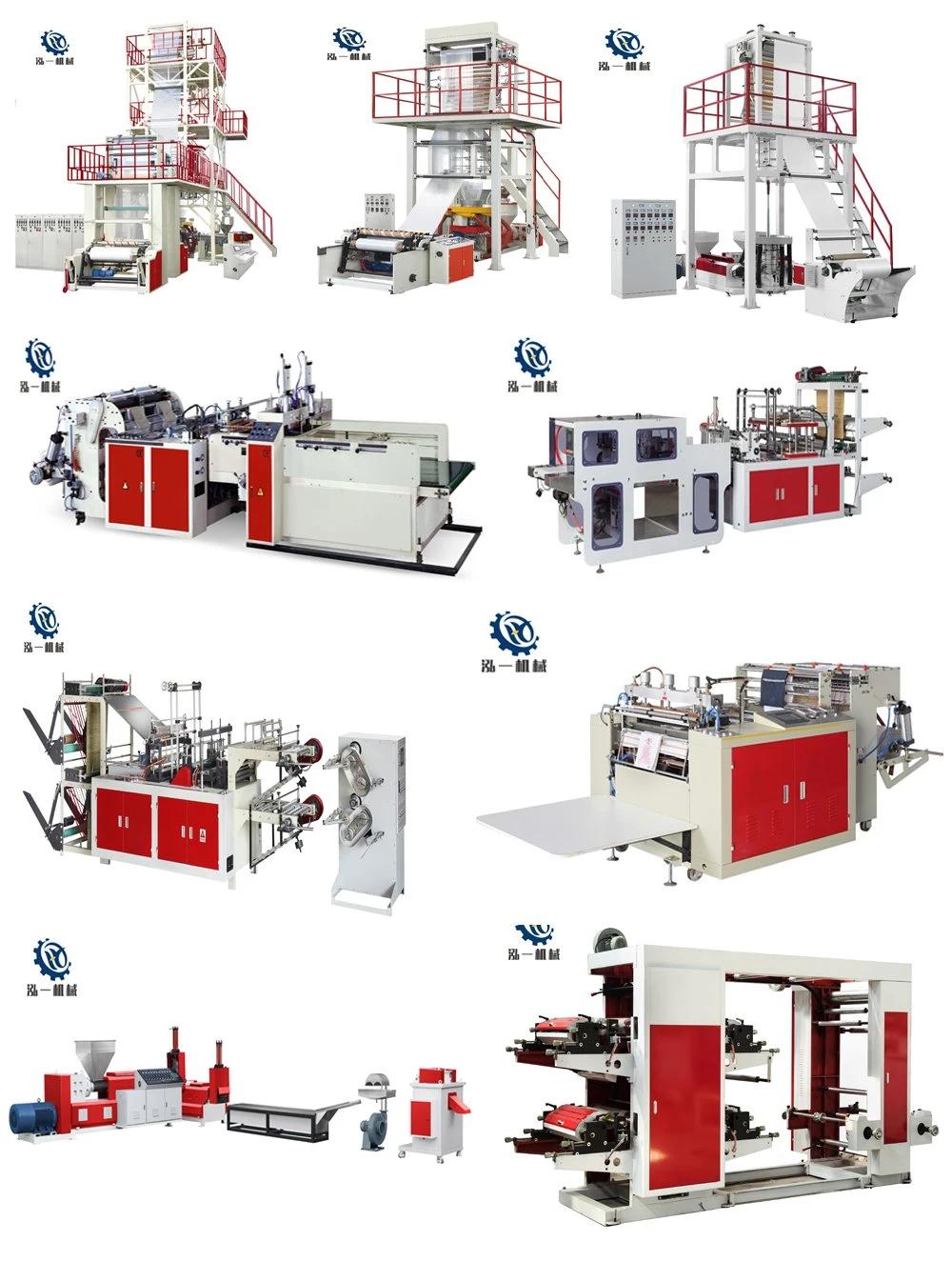

More Products Optional
After Service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We will still offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
