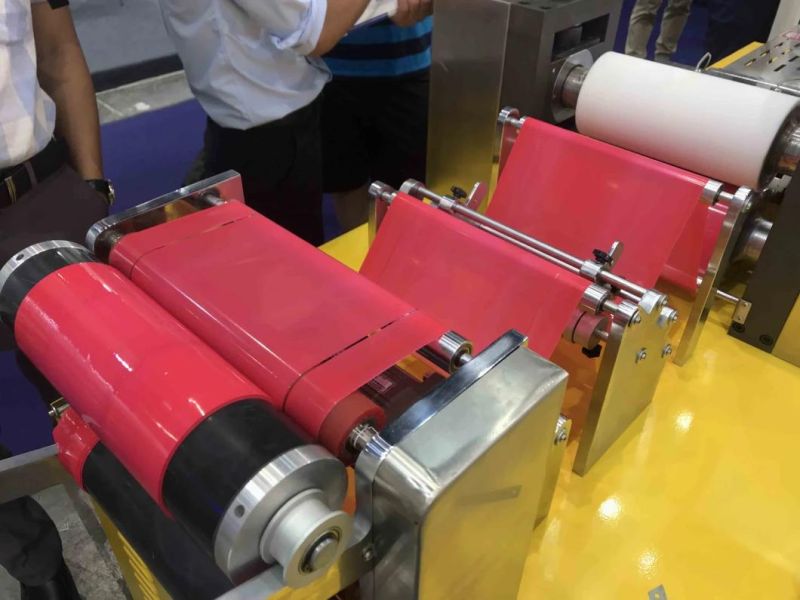

Lab Polymer Nylon Film Extrusion Machine

=== Base Info ===

=== Description ===
SPECIFICATIONS FOR 25 LAB CAST FILM MACHINEApplicable materialsPP, PE, PVC, PS, PET, etc.Screw diameters35mmScrew rotating speed0-95 rpm (adjustable)Screw L/D ratio33:1Temperature rangeRoom temperature - 300ºC Film thickness0.02-0.04mmFilm width250mm (customized)Die width300 mmWorking voltage380V/50Hz/3 phases or CustomerizedMotor power2.2kwTotal Power7 kwControl modeSIEMENS PLC Control

Features
1) Adopting international brand variable speed control motor for the extruder to make the plasticization stable and constant
2) Using brand melt pressure and temperature sensor to ensure high accurage data
3) Cantilever roll structure making it easy to lead the film and be operated
4) dopting PLC control system and friendly operation interface to easily operate
5) On-line testing and displaying melt pressure, temperature and other key data
6) Emergency stops and devices to protect safety of the operator

Other type cast film machine


1. lab cast film machine with twin screw extruder.
2. Multiple layers lab cast film machine, Like Two, Three, Five layers cast film machine.
3. lab cast film machine with Vertical die.
