Wind-Cooling Hot-Cutting Plastic Recycling Compounding Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. FLZ-90, 100, 110 Computerized Non-Computerized Certification ISO9001:2008, CE PE Recycle PE Rebirth Sinle Screw 100kg Transport Package Stretch Film or Wooden Case Specification CE, ISO9001 certificate Trademark HOIN Origin Ruian, Zhejiang, China HS Code 8477201000 Production Capacity 30 Set/Month

Product Description

Characteristics:
The raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machinery equipped with a forced feeder, fast mesh changer and automatic rhermocontroller.
Main Technology:

Model type	SJ-90	SJ-100	SJ-110
Diameter of Screw Stem	φ 90	φ 100	φ 110
Major Diameter Ratio of Screw Stem	L/D 20 : 1       -22 : 1	L/D 20: 1       -22: 1	L/D 20: 1       -22: 1
Rational Speed of Screw Stem	10-100r/min	10-100r/min	10-100r/min
Main Motor Power	22kw	30kw	37kw
Output	68kg /h	95kg /h	120kg /h
Weight   of   overall(kg)	2600kg	2800kg	3000kg
Cover dimensions (l×w×h)     (mm)	4000×1500×1800	4200×1500×1800	4400×1500×1800

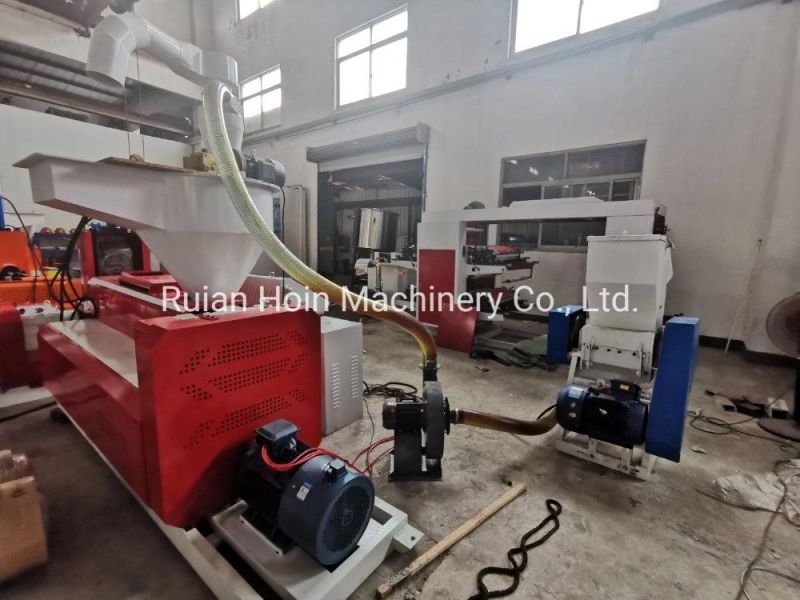

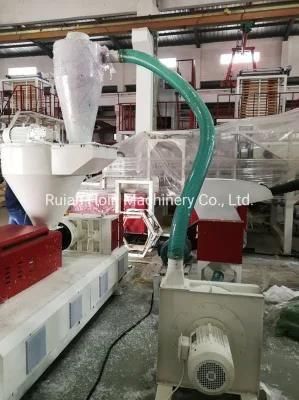

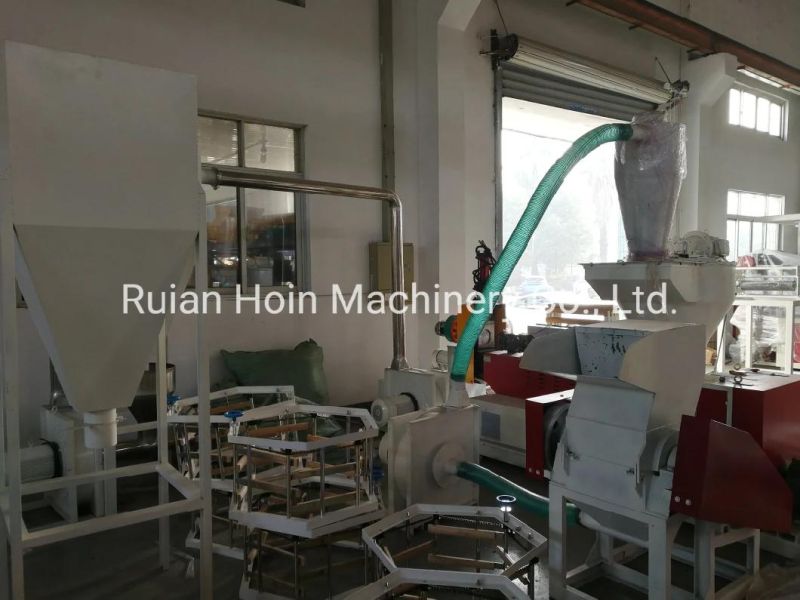

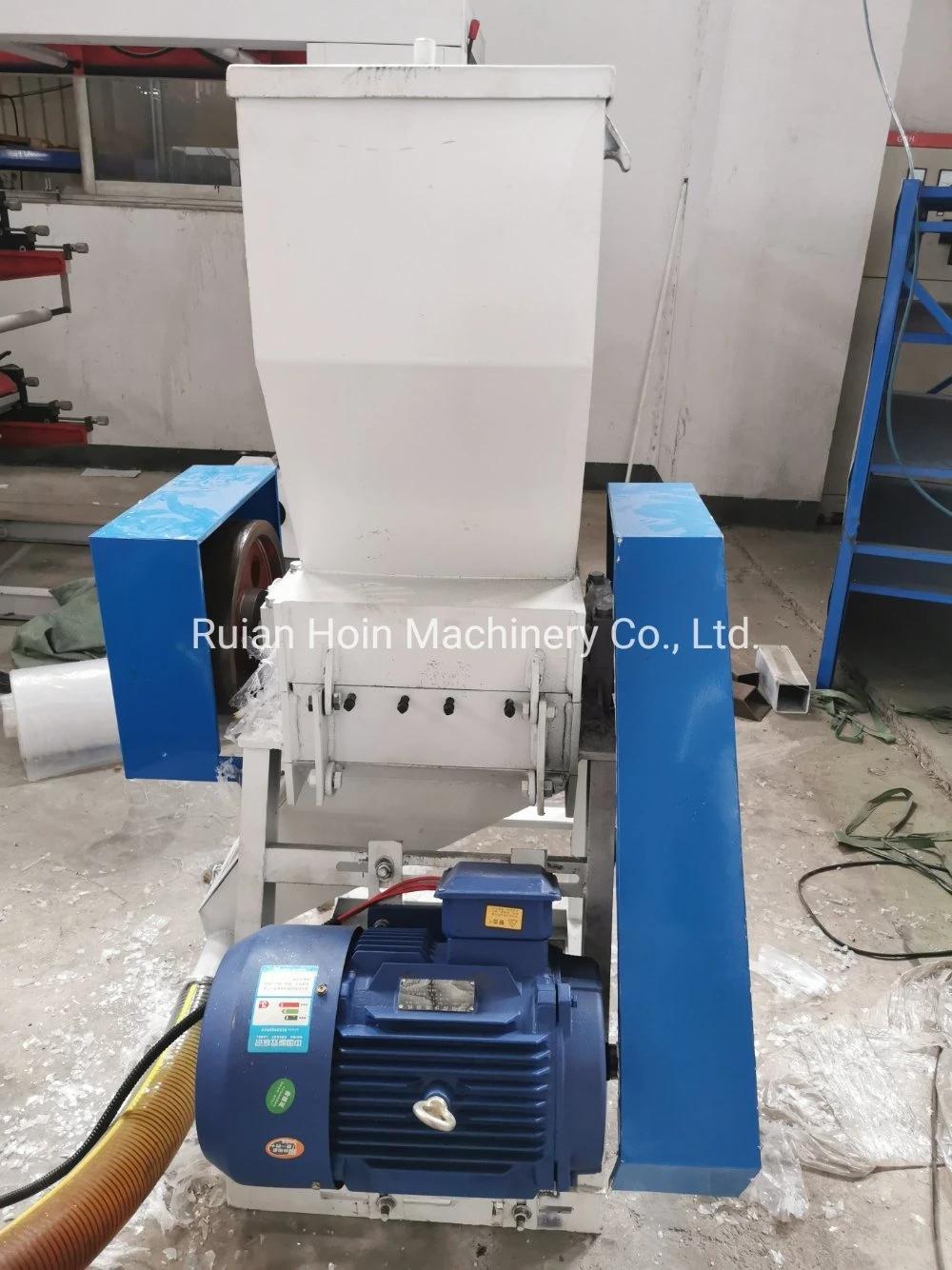

Machine Pictures for Reference:

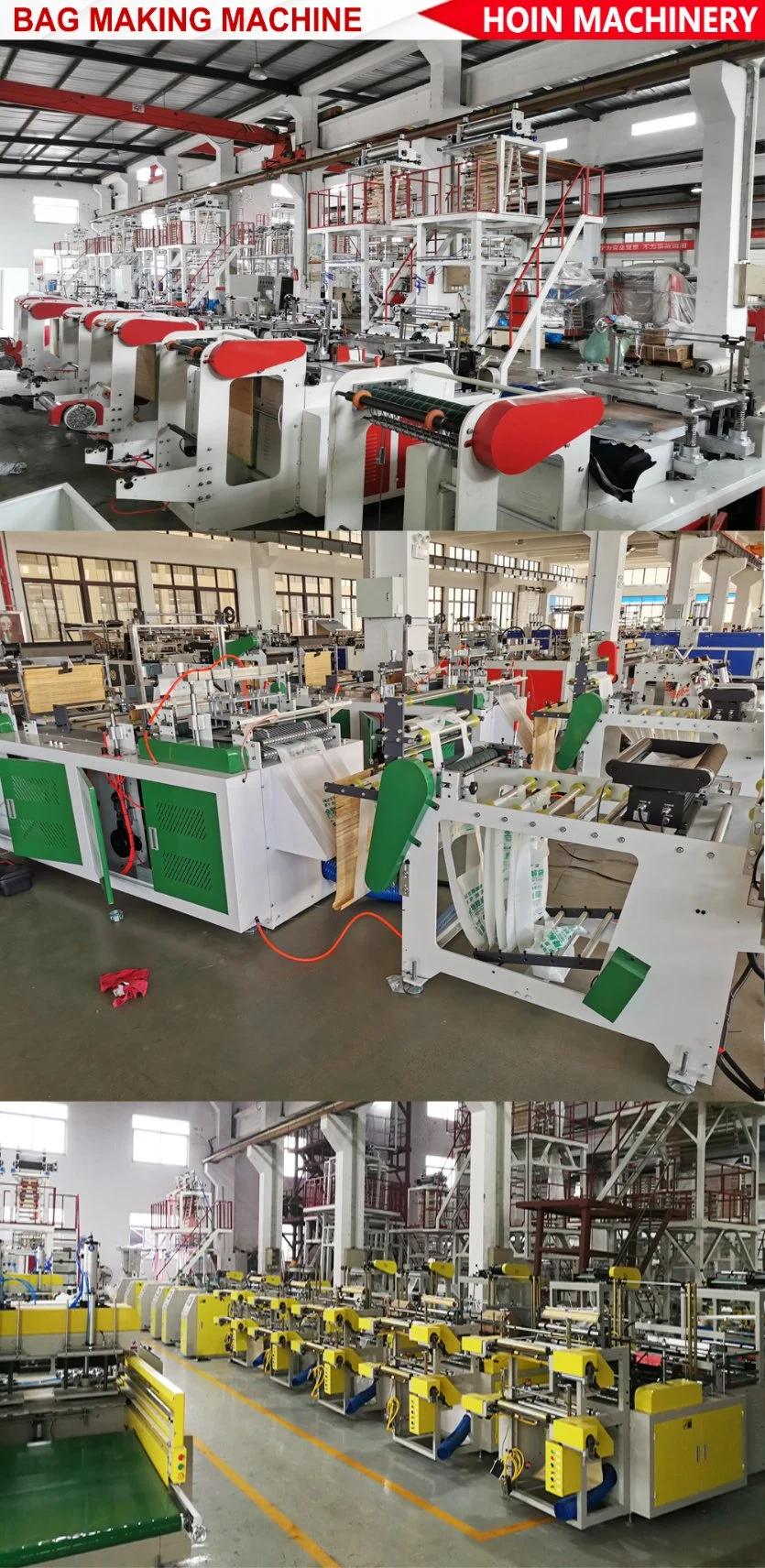

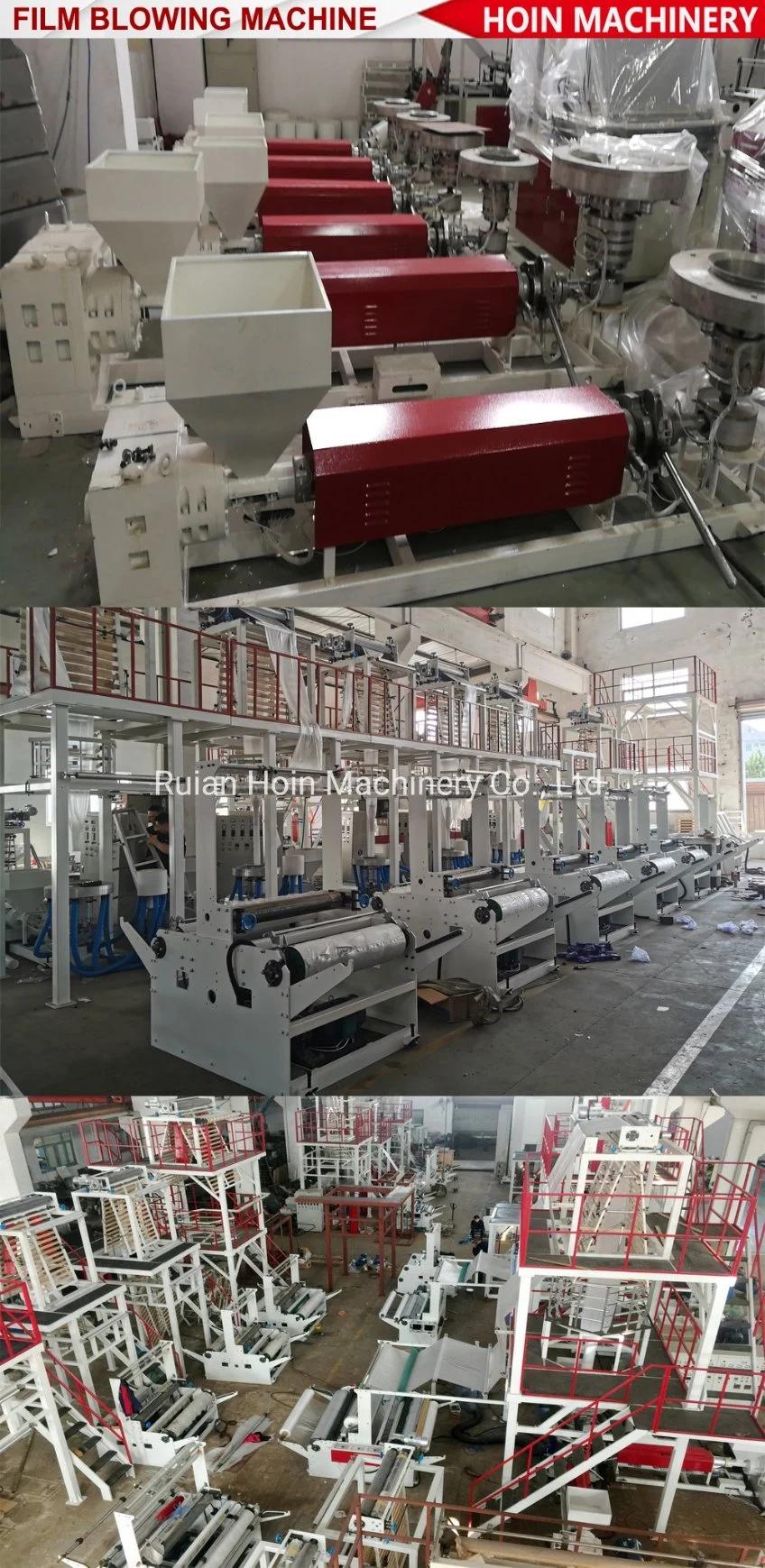

Workshop of HOIN

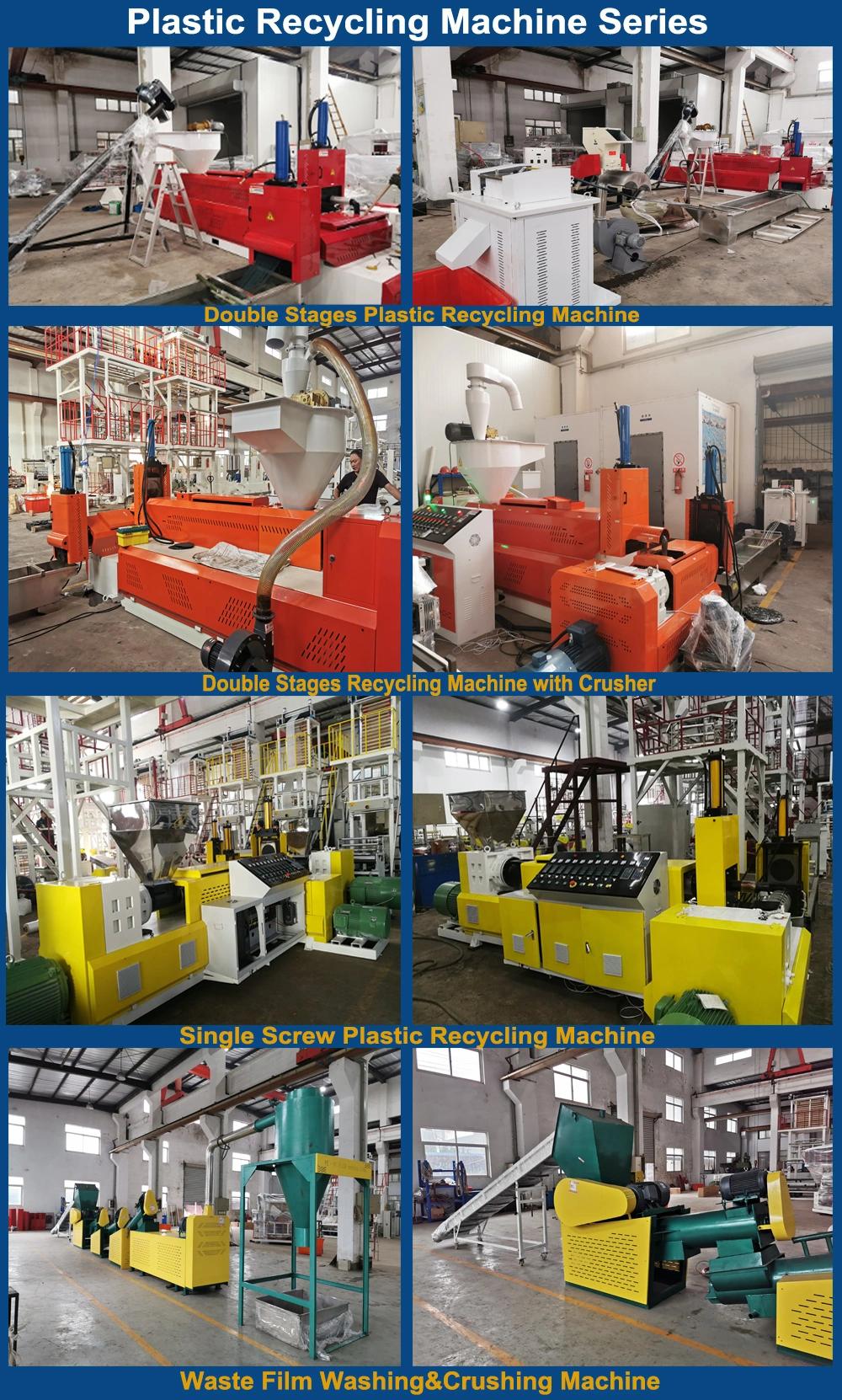

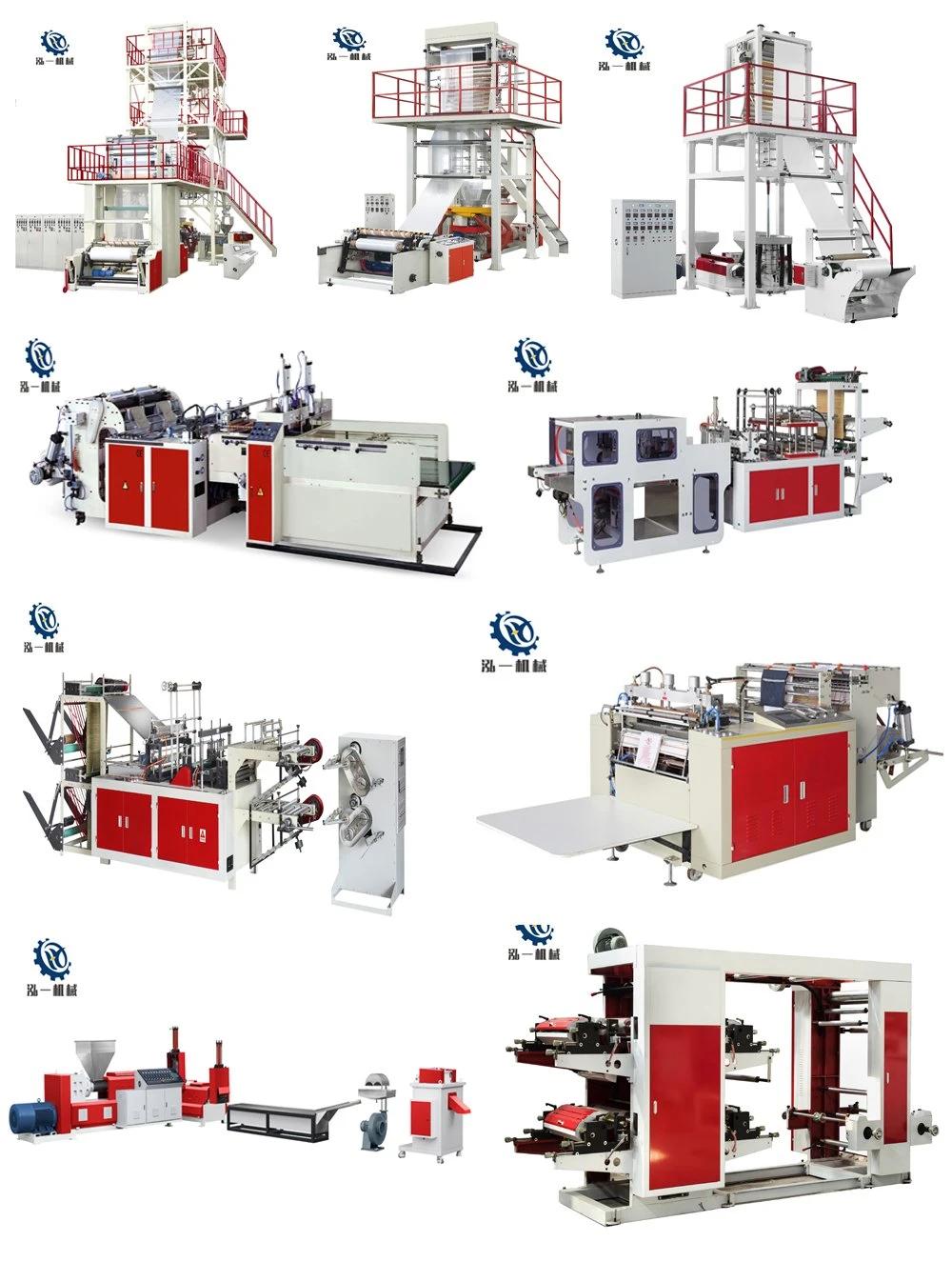

More Products Optional
After Service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We will still offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
