Automatic Rotary One Color Boots Direct Injection Molding Machine

=== Base Info ===

=== Description ===
Overview Product Description

The machine is injection moulding machine, can inject the material directly to mould and one-time molding, get the finished rain boots. One machine is a production line, the finished products can directly sell. The machine need 1-2 workers to operate in production, the output is 80-100 pairs per hour for one color, 70-90 pairs per hour for two color, 60-80 pairs per hour for three colors.

Product ParametersModelYG-SD1P10Number of stations10pcsProduction capacity80Pairs/hMax injection vol.1077cm3Votalge380V, 50HzPower22KwTemperature control4ºCScrew diameter85/55mmDisc diameter4200mmShoe Cramp height210-260mmMould frame dimensions680*250*500mmSize5100*4200*2600mmWeight17800KgFeatures

1.PLC controlled, preplasticized by hydraulic motor, driven by full hydraulic pressure, and cycled automatically.
2.High plastifying capacity, the plastifying temperaturecan be controlled automatically by preselection.
3.It adopts 12/16/24 points measuring and the injection volume can be chosen according to the requirements of the moulds at each working position.
4.The function of empty mould selection has been provided.
5.The round table is indexed by a frequency converter.
6.Parallel mould plate closing mechanism is adopted, which linked with a toggle system operated by single cylinder.
7.The machine is equipped with two time pressure injection system and the cramp pressing and mould closing order selecting function.
8.The round table indexes smoothly and it's movement can easily be adjusted.
9.The round table rotation, plasticizing and oil supply for the injection are controlled  independently.
10.There are many working positions, the  time for setting is long enough, and guarantees the  setting quality of shoe soles.

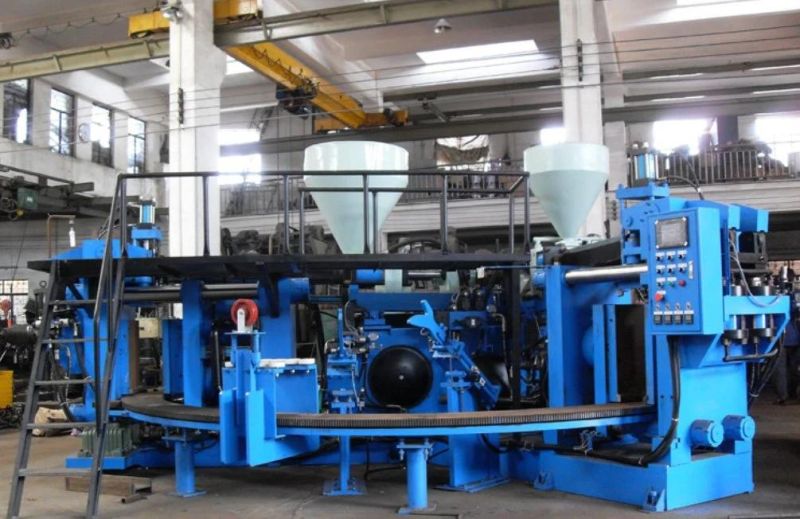

Detailed Photos
