10ton 50ton Hydraulic Rubber Plastic Shop Vulcanizing Press
Dongguan Koves Precision Tools Co., Ltd. / 2022-07-04
=== Base Info ===
=== Description ===
XH-406C-30 Technical Parameter |
Capacity selection | 30 ton or customize |
Temperature control | normal temperature~300ºC |
Precision of the control temp | + -2ºC |
Heating Mode | Electrical Heating |
Timepiece | LED 0~99(min) |
Area of electric board | 300*300mm designated |
Area of cooling plate | 300*300mm designated |
Cooling mode | Compressor water cooling or running water cooling |
Plate spacing | 0~70mm designated |
Volume | 1100*650*1600mm |
Weight | About 750kg |
Power supply | 3Ø, AC380V, 20A |
Small Hydraulic Press Machine Features(1) XH-406BE-30 tablet press machine is applicable to R & D in laboratory because of its compact size, complete functions, stable temperature, low noise, easy operation and material saving.
(2) High-precision temperature sensor, together LED temperature controller, built-in dense-point heating wire and tubular condenser, has the temperature range from normal temperature to 300ºC.
(3) Imported KDB electric board features high-temperature resistance, abrasion resistance, fast thermal transmission and strenghthen against deformation.
(4) Single heating can be designed according to the requirements.

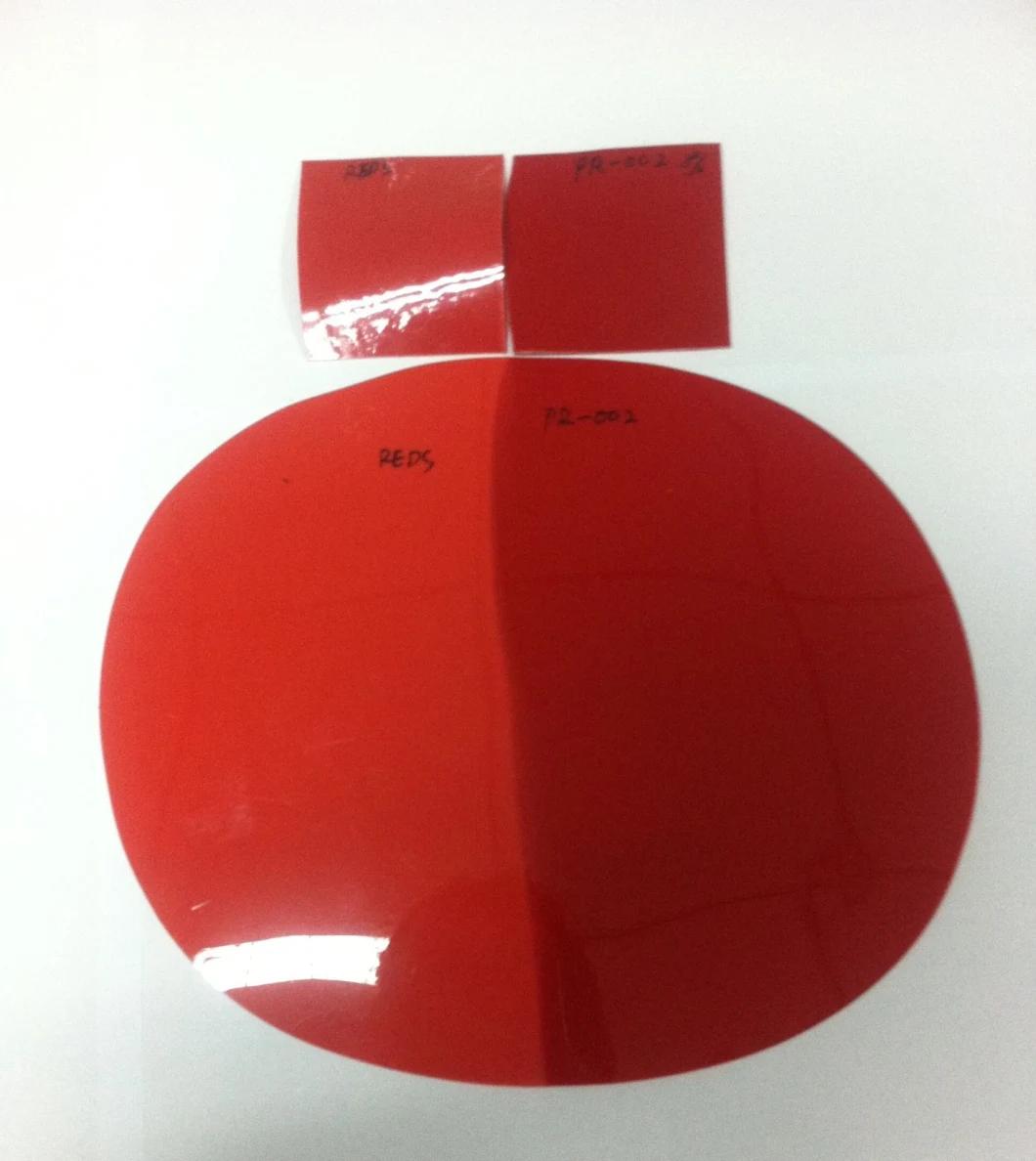

(5) Oil hydraulic system: the pressure range: 30 ton, the maximum stroke of the cylinder: 180mm.Testing sample ![10ton 50ton Hydraulic Rubber Plastic Shop Vulcanizing Press](https://pub.357th.com/www.676102.com/uploads/image/2021/8d/4f/ce/f7/b21d5b350749c61c9522e643d1ce23da.jpg)
![10ton 50ton Hydraulic Rubber Plastic Shop Vulcanizing Press](https://pub.357th.com/www.676102.com/uploads/image/2021/6c/6c/55/3d/30e8e9ef2152b0e9b50054c42ea51df2.jpg)
Details images ![10ton 50ton Hydraulic Rubber Plastic Shop Vulcanizing Press](https://pub.357th.com/www.676102.com/uploads/image/2021/d7/39/c2/a9/802ee8850e837736f36ccf509f7c733d.jpg)
