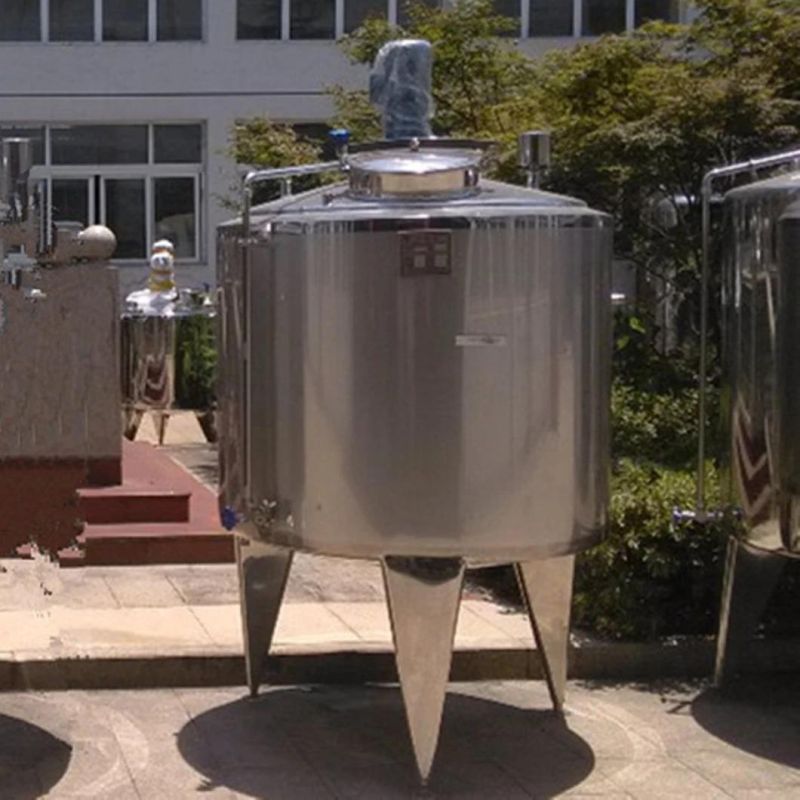

Milk Juice Pasteurization Pasteurizer Holding Tank

• Electric Heating Pasteurizer：Tank 200L, 300L, 400L, 500L,5000L
• Pasteurizer Tank：Pasteurize and Mix The Milk,Juice,Beverage
• Tank Type：with Half Lids Cover or Manhole
• Heating Temperature：Able to Control and Adjust From 10c to 110c
• Mixing Speed：36rpm, 48rpm,96rpm, 2900rpm
• Heating Source：Electric Heating Bars Oil,Hot Water in The Jackets

=== Base Info ===

• Model NO.：KQ
• Working Life Span：More Than 10years
• Pasteurization Tank Heated：by Electricity,Steam
• Tank Structure：Double Jackets
• Delivery：10 Days
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：100sets Per Month

=== Description ===

Basic Info.

Model NO. KQ Working Life Span More Than 10years Pasteurization Tank Heated by Electricity/Steam Tank Structure Double Jackets Delivery 10 Days Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 100sets Per Month

Product Description

Electric heating pasteurizer for milk , juice,
Milk Juice Pasteurization Pasteurizer Holding Tank




Small electric heating tank pasteurizer for dairy, jucie factorys.
Electric heating and mixing tank
Shanghai Kaiquan Machine Valves Co.ltd offers the broadest range of tank heating solutions in the electric heatingindustry. .... jacketed vessel application is the heating of chocolate
ELECTRIC HEATING MILK BATCH PASTEURIZER
200l, 300L, 400L ,500L, 600L JUICE PASTEURIZER, MILK PASTEURIZER.

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000,SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW,380v,50hz	0.75KW,380v,50hz	0.75KW,380v,50hz	1.1KW,380v,50hz
Electric heating tube power	15KW,380v,50hz	18KW,380v,50hz	24KW,380v,50hz	45KW,380v,50hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN MM)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)MM	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750
GROSS WEIGHT(KGS)	150	200	300	450

Newest electric double jacketed heating cable for tank
Heating by Electric(380V, 50Hz)
* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down
* Accessories:
Milk Juice Pasteurization Pasteurizer Holding Tank
