PP PE PC Hollow Cross Section Sheet/Plate Extrusion Machine

=== Base Info ===

=== Description ===

Item
Description
Data
1
SJ120/35 Single screw extruder with stainless steel hopper
1 set
2
Screen exchanging unit for PC
1 set
3
Melting gear pump for PC
1 set
4
SJ45/30 Single screw extruder for UV layer
1 set
5
Melting gear pump for uv
1 set
6
T-type Die head (2100mm*4-6mm)
1 set
7
Vacuum calibrating board
1 set
8
cooling table
1 set
9
The first haul off machine with 12 rollers
1 set
10
edge cutting device
1 set
11
5000mm oven
1 set
12
Corona treating unit
1 set
13
up and down sides, double position film laminating device
1 set
14
The second haul off machine
1 set
15
Tranverse cutting machine (length-settled)
1 set
16
material conveyor+6000mm discharge table
1 set
17
eletrical cabinet
1 set
other accessory machine parts
18500kg mixing and drying machine1 set19AC-25 water chiller1 set2015kw air compressor1 set21sheet crusher1 set


PART 5 MAIN TECHNICAL DATAPP/PE Hollow Sheet Extrusion
Line Technical DataPC Hollow Sheet Extrusion
Line Technical DataExtruder modelSJ-120,SJ-100Extruder modelSJ-120, SJ-45Sheet width2100mm, 1220mmSheet width2100mmSheet thickness2-8mm, 2-8mmSheet thickness4-40mmMax capacity350kg/h,200kg/hMax capacity450kg/hMain motor power132kwMain motor power132kw

PART 5 DELIVERY, PAYMENT AND OTHERS SERVICES
1.   delivery time: 80 days after receiving the deposit
2.   payment terms:30% for the prepayment by T/T and 70% for the downpayment by T/T before delivery or irrevocable L/C at sight can be available, too.
3.   Packing details: wooden pallets and cases with stretching films
4.   Guaranteed time: 18 months for the machenical parts and 12 months for the electrical parts.
5.   Service: we will send 1-2 engineers to customers' factory to help them install, test the machine and also train their workers, but customers should bear the round tickets, accommodation, and salary etc.



Hollow sheets samples :

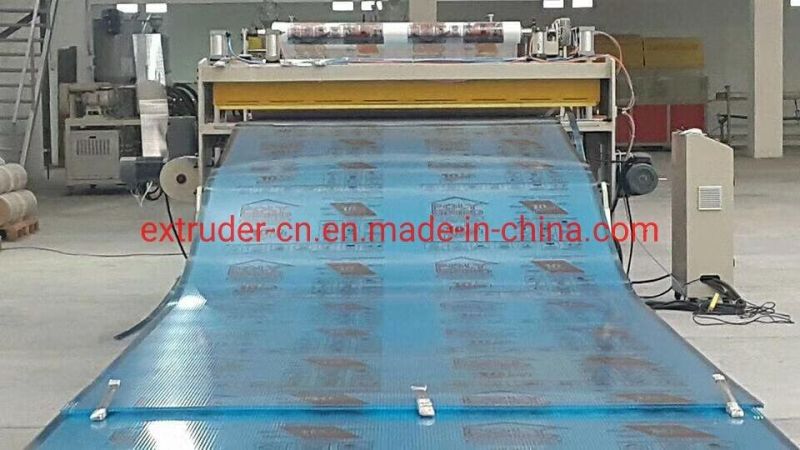

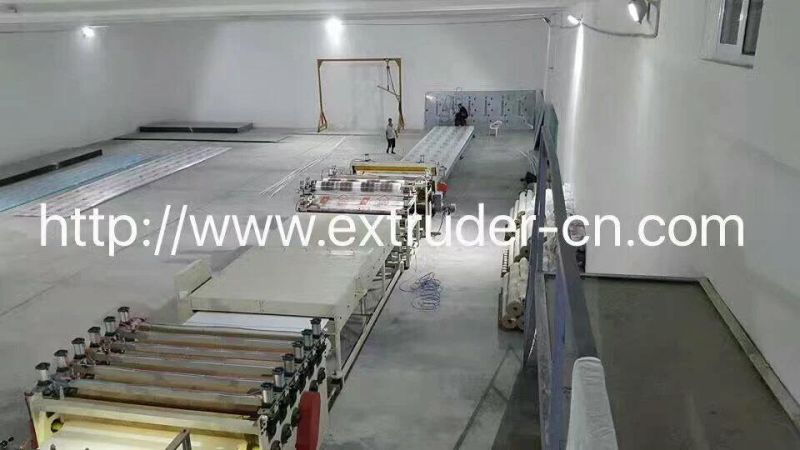

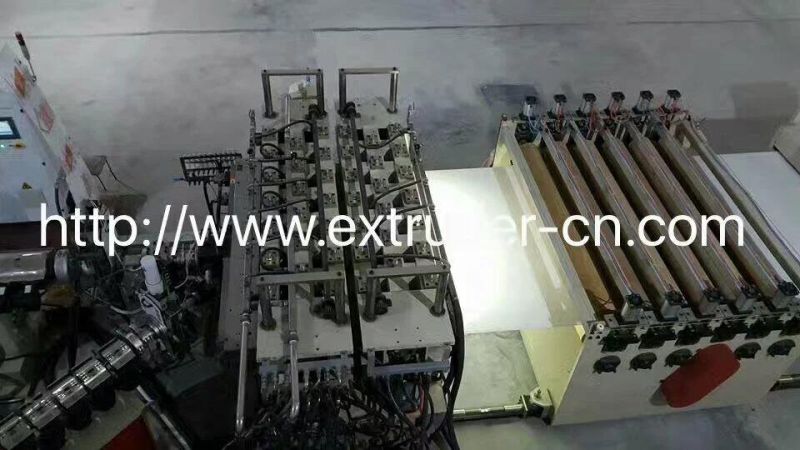

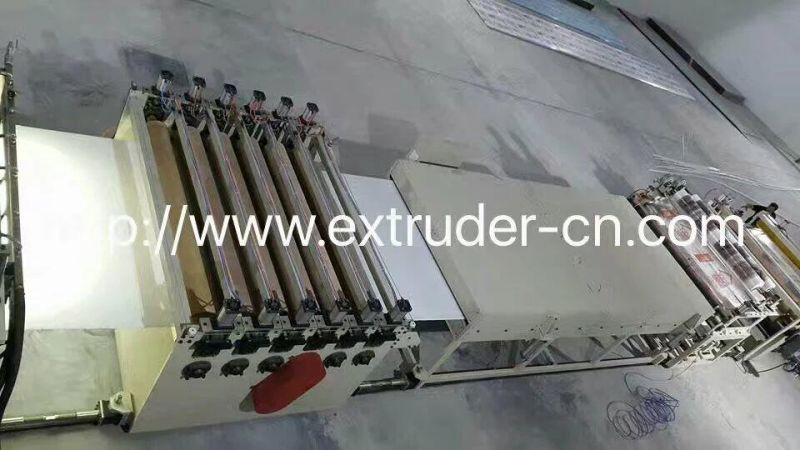

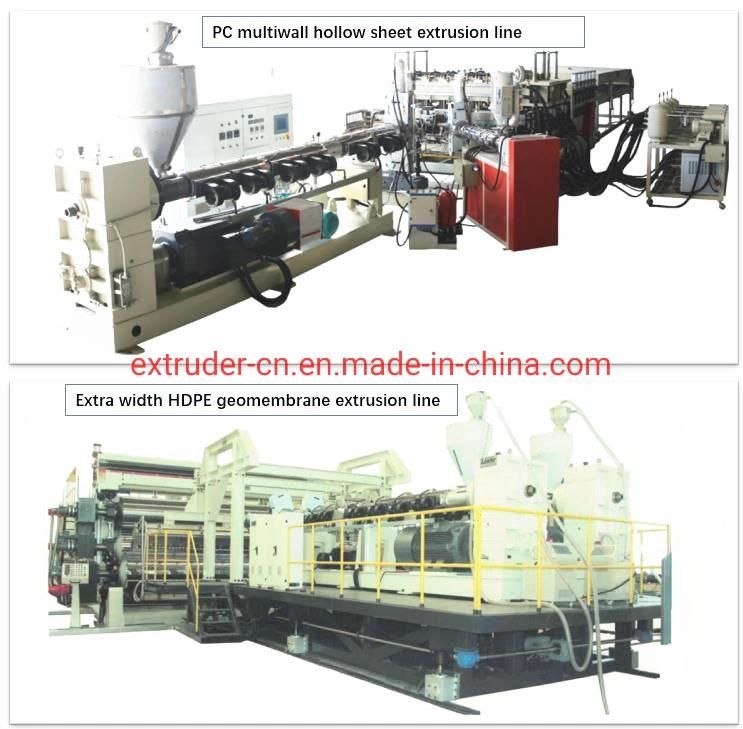

MORE MACHINE PICTURES:

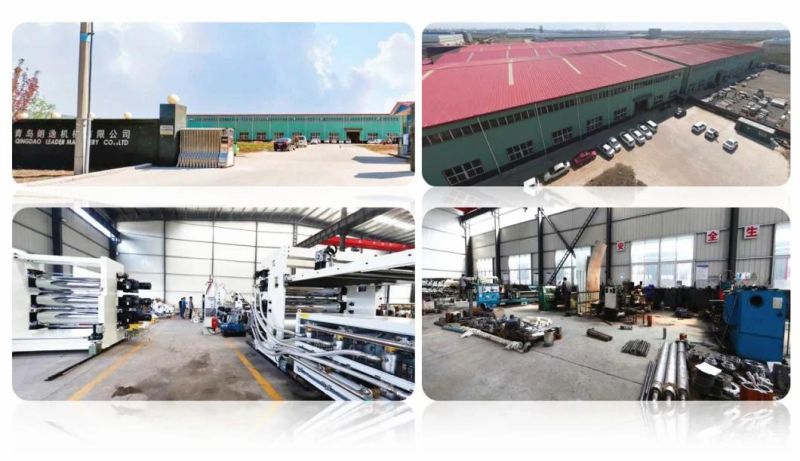

PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:

PART 6 COMPANY CERTIFICATIONS:



PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.

PART 8 COMPANY OVERSEA SHOWS

OUR COOPERATED SUPPLIER LIST
