2000L Stainless Steel Juice Milk Mixing Pressure Wine Fermentation Vessel

• After-sales Service：Online Service
• Warranty：One Year
• Usage：Biscuit, Cake, Pizza, Bread, Yogurt
• Power Source：Electric
• Timing Device：With Timing Device
• Type：Mixer

=== Base Info ===

• Model NO.：KQ Series
• Voltage：Customizer
• Customized：Customized
• Name：2000L Stainless Steel Juice Milk Mixing Pressure W
• Material：Stainless Steel 304,316
• Capacity：100-5000L
• Heating：Electric ,Steam ,Gas
• Speed of The Mixer：36rpm ,45rpm ,2900rpm
• Application：Milk ,Yogurt ,Beverage Tank
• Delivery：10 Days
• MOQ：1 Set
• Orign：Shanghai China
• Packing：Wooden Box
• Motor Brand：Siemens ,ABB ,China Brand
• Spare Parts：Available
• Cleaning：CIP Spray Ball
• Working Pressure：Make It to Your Order .
• Sight Glass：Yes ,No
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：200L To30000L

=== Description ===

Basic Info.

Model NO. KQ Series Voltage Customizer Customized Customized Name 2000L Stainless Steel Juice Milk Mixing Pressure W Material Stainless Steel 304/316 Capacity 100-5000L Heating Electric /Steam /Gas Speed of The Mixer 36rpm ,45rpm ,2900rpm Application Milk ,Yogurt ,Beverage Tank Delivery 10 Days MOQ 1 Set Orign Shanghai China Packing Wooden Box Motor Brand Siemens /ABB /China Brand Spare Parts Available Cleaning CIP Spray Ball Working Pressure Make It to Your Order . Sight Glass Yes /No Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 200L To30000L

Product Description

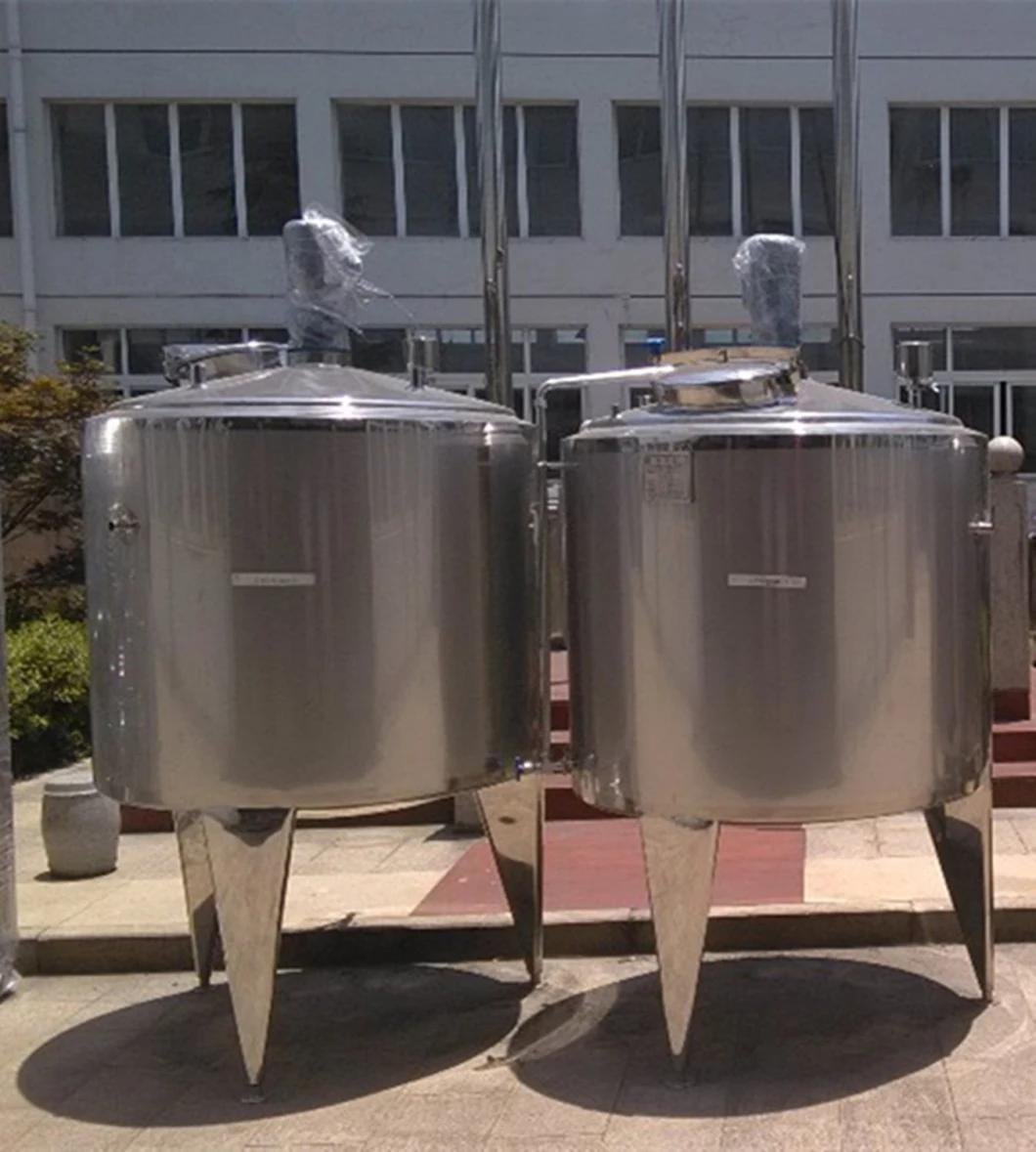

2000L Stainless Steel Juice Milk Mixing Pressure Wine Fermentation Vessel
Three-layered cooling and heating tank is mainly used for storing, mixing and heating liquid. It's the ideal mixing, heating and cooling equipment for chemical, food and beverage factory and pharmacy industry.





Material: Ss304
* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
*PU INSULATION WALL: 50MM
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down manhole and pipe will be as the picture you sent to us
* Accessories:
(1) Manhole covers
(2) Charging/discharging hole at the bottom,
(3) CIP Cleaning ball
(4) Steam heating tube
(5) Rack & blender etc.
(6) the electric motor
Agitator blending tank
1. More than 10 years experience
2. Capacity: 100-5000L
3. Manufacturer
4. Custom-made solution

1

sugar mixing tank

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000,SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW,380v,50hz	0.75KW,380v,50hz	0.75KW,380v,50hz	1.1KW,380v,50hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN MM)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)MM	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750
GROSS WEIGHT(KGS)	150	200	300	450

Steam heating chemical agitator tank blending tank
PME Multi-function Blending Reactive Mixer/ vacuum homogenizer mixer




High speed disperser, might mixing and disperse viscously. Solid and liquid raw material can dissolve material which is hard to dissolve such as AESAESALSA during liquid production which can save energy consumption and shorten production period.
Main blender adopts stepless speed variator device and under low temperature and high viscosity condition, less air bubble will be formed;
It is suitable to produce liquid washing products;
It can give out material directly or matched with screw pump.
Double wall steam heating tank
Le-layer tanks are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process indusries used as blender tank, buffer tank, and storage tank, which cleanable to sanitary standards.
Fermentation Tank Wine Fermentation Tank Mixing Tank Pressure Tank
Doublewall steam heating tank configuration:
Manhole
CIP cleaner
Adjustable trangle bracket
Ladder
The rmometer
Liquid lever meter and controller
Eddy-proof board
Dismountable inlet assembly
Sanitary breathing cover
Specifications
We can supplies single-layer, dual-layer, and three-layer stainless tanks with or with out agitation to blend product.
Specifications
Product name: Blending tank / Mixing tank

MOQ: 1 set
MOC: Stainless steel grade 304/306L
OEM experience: 30yea
Product Name
Vertical mixer, Blending tank, Mixing vessel
Applicable range:
1. Used as liquid storage tank, liquid composing tank, temporary storage tank and liquid blending tank etc.
2. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Structure characteristics
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
2000L Stainless Steel Juice Milk Mixing Pressure Wine Fermentation Vessel
