5 Sets HDPE Pipe Production Line in Stock

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SJ-75/33 Condition New Pipe Diameter Range 16-630mm Pipe Application PE Gas and Water Pipe Output Max.850kg/Hr Install Power 315kw Line Speed 12m/Min Electrical Parts Brand Siemens Warranty Time 14monthes After -Sale Service Life-Long Time Technical Support Dimension 34000*3000*2800mm Weight 22t Transport Package Machine Covered by PE Film; Mould in Wooden Case Specification CE, ISO9001: 2008, SGS Trademark WEIER Origin Qingdao City Shandong Province, China HS Code 84772090 Production Capacity 10 Units Per Quarter

Product Description

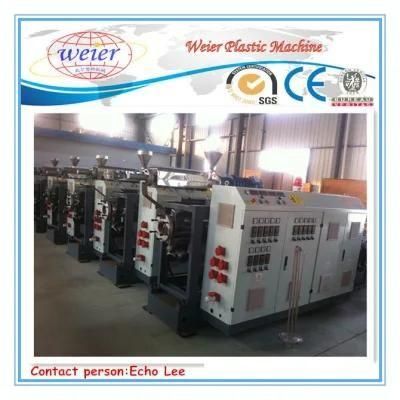

PE pipe making machine

Discreption of PE pipe machine :
This PE Pipe Production Line is mainly used for producing PE pipes, diameter range: 16-630mm, etc

Process flow of PE pipe production line:
Raw material + additive mixing vacuum feeding machine hopper dryer single screw extruder color code extruder mould and calibrator vacuum forming machine cooling tank haul-off machine cutting machine discharging rack

Parameter of PE pipe machine

pipe diameter	main machine	MAX hauling speed	motor power	MAX capacity
20-63mm	SJ65/30	12m/min	55kw	150kg/h
20-110	SJ65/33	10m/min	75kw	180kg/h
75-160	SJ75/30	8m/min	110kw	350kg/h
90-250	SJ75/33	5m/min	110kw	350kg/h
110-315	SJ90/33	3m/min	160kw	450kg/h
160-450	SJ90/33	2m/min	160kw	450kg/h
315-630	SJ120/33	1.6m/min	280kw	850kg/h
160-630	SJ120/33	0.8m/min	315kw	850kg/h
