PPR Pipe Production Line (0003)

=== Base Info ===

=== Description ===

Basic Info.

Model NO. 0003 Trademark XJG Origin China HS Code 8477800000 Production Capacity UNCERTAIN

Product Description

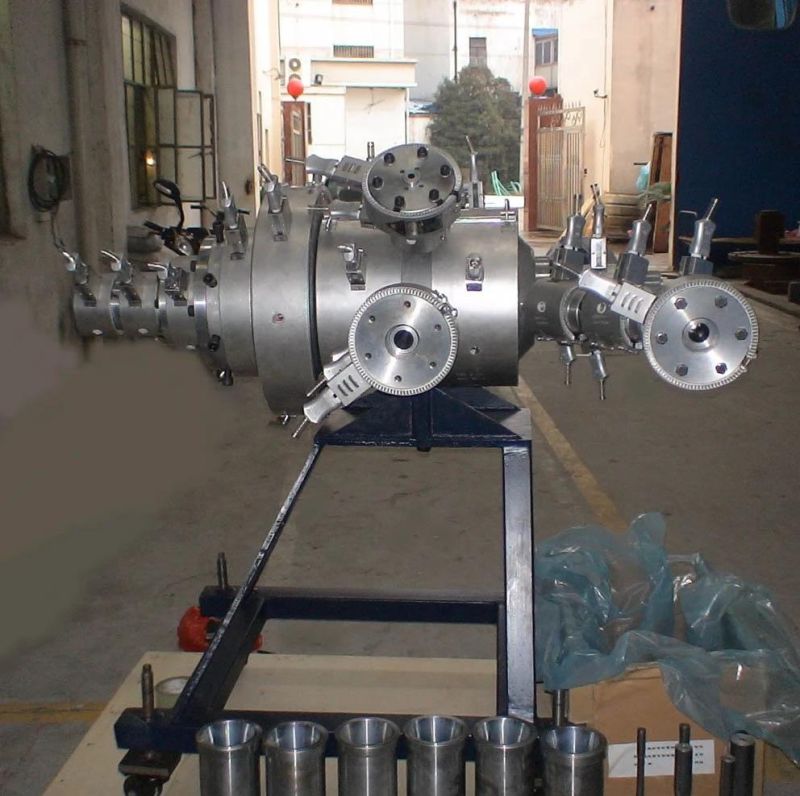

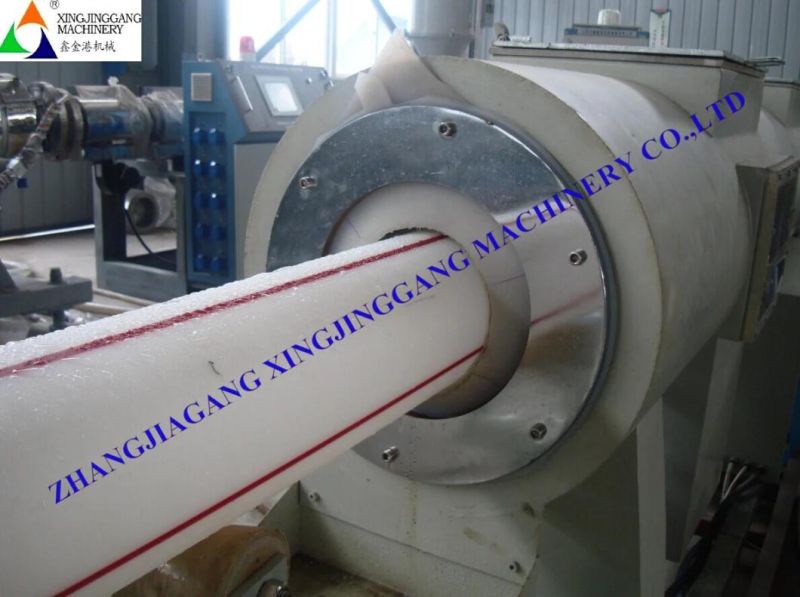

The line is used for extrusion of PP-R, PEX or PE-RT pipes. PP-R pipe are non-toxic, heat-resistant. It can be easily welded by hot-melting method and recycleable. PEX pipes have excellent temperature resistance character. PE-RT pipe does not need the cross-link process, and it can also be recycled. This line is assembled lattice or spiral mould. Two section vacuum calibration unit and spraying cooling bath. After simply changing the mould, it also becomes possible to produce ABS, PP composite pipe.

Model	SJ65/33-30	SJ75/33
Diameter range(mm)	Φ20-63	Φ75-110
Output(Kg/H)	60-80	80-120
Total length(m)	25	28
