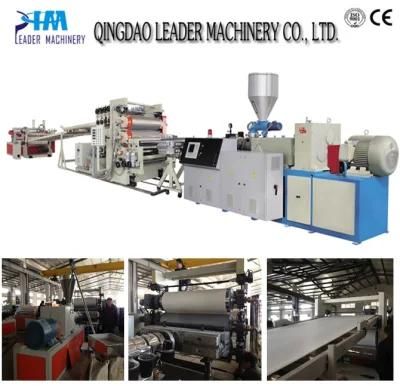

PVC Edge Band Sheet Extrusion Machine/Marble Board Extrusion Line

=== Base Info ===

=== Description ===

Item
Description
Unit
ZJF-700
1
Feeding Capacity
Kg/h
Max.1000
2
Container Volume
Kg
150
3
Spring Diameter
mm
φ59
4
Feeding Tube and Spring Length
mm
3-5
5
Material Trunk Volume
Kg
200
6
Electric Power

3-380V 50Hz
7
Main Motor Power
Kw
2.75
8
Dimensions
mm
950×950×960
Φ820×1550
9
Total Weight
Kg
250
2.2. Double-Screw Extruder type SJSZ65/132
Item
Description
Unit
SJSZ65/132
1
Output Capacity
Kg/h
Max.250
2
Number of the Screws

2
3
Diameter of the Screw
mm
65/132
4
Rotating Direction of the Screws

Forth & Reverse
5
Rotation Speed of the Screw
r/min
1-34.7
6
Available Working Length of the Screws
mm
1430
7
Main Motor Power
Kw
37
8
Speed Adjusting Mode

frequency conversion adjustable, Invertor from Innovance
9
Gear reducer

Rigid-gear surface low noise design
10
Heating Capacity of the Screw barrel
Kw
24 ( casting-aluminium electric-thermal elements )
11
Material of the Screws and the barrel

38CrMoA1
12
Nitriding Depth of the Screws and the barrel
mm
0.5~0.7
13
Nitriding rigidity of the Screws and the barrel
HRC
50~55
14
Cooling Mode of the Screw barrel

by air cooling
16
Indicators

temperature indication by gauge
17
Temperature controllor

Brand: Omron, Japan
18
Element of Electric System ( contactors, buttons, switches )

Brand: Schneider
19
Power of the Vacuum Pump
Kw
1.5
20
Max. Vacuum Degree
MPa
-0.093
21
Cooling Water Consumption
L/min
1~3
22
Plastic Material Feeding Mode

By Fixed-quantity Screw
Feeding Device
23
Rotation Speed of the Feeding Screw
R/min
3.5~47 ( frequency conversion )
24
Height of the Screw Axes
mm
1000
25
Figure Dimensions ( L×W×H )
mm
4235×1520×2450
26
Weight
Kg
4000
2.4. T -die head, 1 set
Item
Description
Unit
1350mm
1
Die width
mm
1350
2
Adjusted thickness
mm
0.2-1.2mm
2.5. Accessory equipments for PVC sheet, three roller calendar, cooling frame, hauling machine, knife cutting machine and stacker. 1 set
2.5.1. Three roller calendar

Discription
Unit

1
Roller motor power
KW
3*3 sets
2
Speed adjusting inverter

INNOVANCE
2
Roller width
mm
1400
3
Roller
mm
350
5
Chromed thickness
mm
0,05-0,06
6
Roller wall thickness
mm
about 35
7
Roller adjusting

Electrical, manual
8
Thermocontrol

Mould thermocontroller, 1 set
