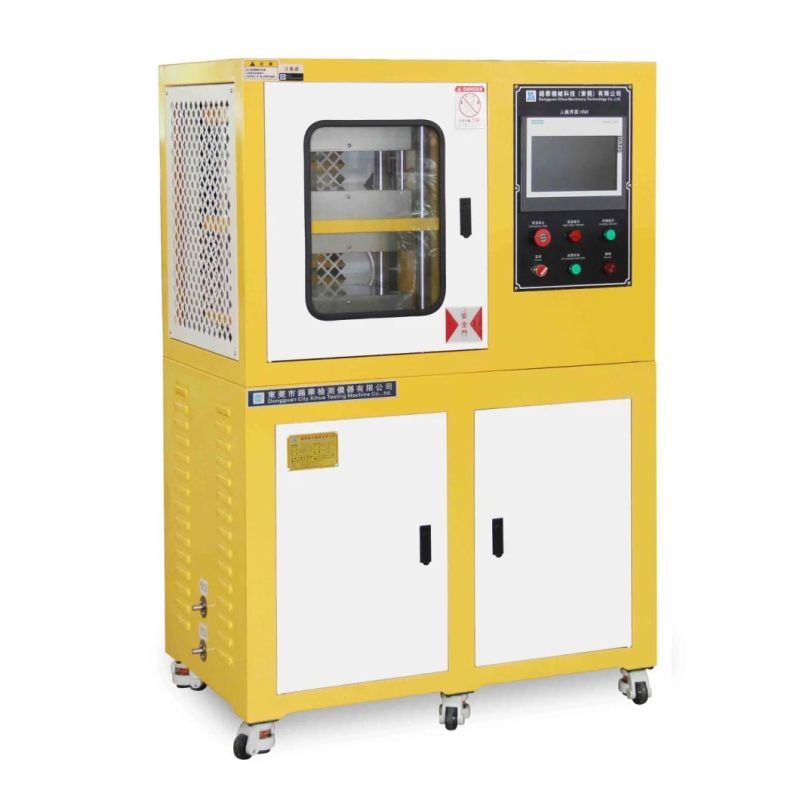

Professional CE Polymer and Rubber Lab Heat Press Machine
Dongguan Koves Precision Tools Co., Ltd. / 2022-07-04
=== Base Info ===
=== Description ===
XH-406BE-30 Technical Parameter |
Capacity selection | 30 ton or customize |
Temperature control | normal temperature~300ºC |
Precision of the control temp | + -2ºC |
Heating Mode | Electrical Heating |
Timepiece | LED 0~99(min) |
Area of electric board | 300*300mm designated |
Area of cooling plate | 300*300mm designated |
Cooling mode | Compressor water cooling or running water cooling |
Plate spacing | 0~70mm designated |
Volume | 1100*650*1600mm |
Weight | About 750kg |
Power supply | 3Ø, AC380V, 20A |
Small Hydraulic Press Machine Features(1) XH-406BE-30 tablet press machine is applicable to R & D in laboratory because of its compact size, complete functions, stable temperature, low noise, easy operation and material saving.
(2) High-precision temperature sensor, together LED temperature controller, built-in dense-point heating wire and tubular condenser, has the temperature range from normal temperature to 300ºC.
(3) Imported KDB electric board features high-temperature resistance, abrasion resistance, fast thermal transmission and strenghthen against deformation.
(4) Single heating can be designed according to the requirements.
(5) Oil hydraulic system: the pressure range: 30 ton, the maximum stroke of the cylinder: 180mm.Testing sample ![Professional CE Polymer and Rubber Lab Heat Press Machine](https://pub.357th.com/www.676102.com/uploads/image/2021/3a/72/65/87/f832061ffd30f7f8c769ec719be2b152.jpg)
![Professional CE Polymer and Rubber Lab Heat Press Machine](https://pub.357th.com/www.676102.com/uploads/image/2021/1f/03/10/cb/8e81f7471e443d0699478ce22bcb7822.jpg)
Details images ![Professional CE Polymer and Rubber Lab Heat Press Machine](https://pub.357th.com/www.676102.com/uploads/image/2021/a9/74/9e/d3/2d44aeddfe94bb6fa7ec5bd9466660de.jpg)
