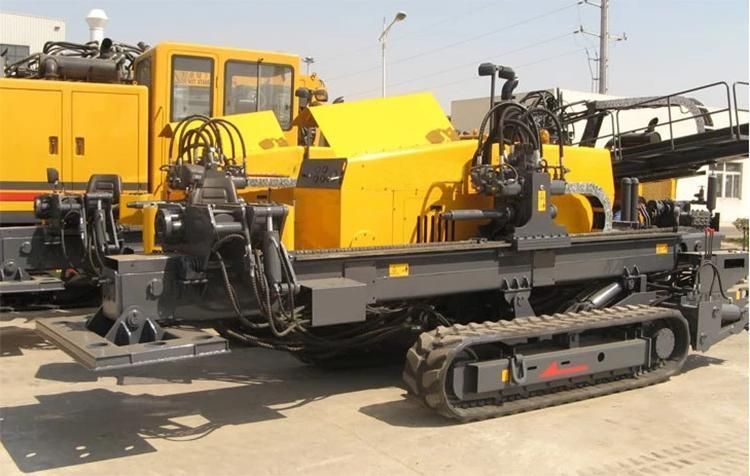

Trenchless Drilling Horizontal Directional Drilling Machine Ddw-200 Pullback Force 20t HDD Machine

YANCHENG LONGTERM MACHINERY CO., LTD. / 2022-06-23

Trenchless Drilling Horizontal Directional Drilling Machine Ddw-200 Pullback Force 20t HDD Machine

=== Base Info ===

=== Description ===
Product DescriptionModelYG-160AYG-180YG-280YG-320YG-320AEngine rated power100KW97KW160KW140KW/160KW160KWPush and pullCylinderMotorMotorCylinderMotorMaximum drag/feed force160/100KN180/180KN280/280KN320/320KN320/320KNMaximum torque of power head 5000N.n 6000N.n 10000N.n 12000N.n 12000N.nPower head speed 0-180r/min 0-140r/min 0-120r/min 0-140r/min 0-140r/minMoving speed of power head 30m/min 20m/min 20m/min 20m/min 20m/minMaximum reaming hole diameter Φ600mm Φ600mm Φ750mm Φ800mm Φ800mmDrill rod length (single) 3m 3m 3m 3m 3mDrill pipe diameter Φ60mm Φ60mm Φ73mm Φ73mm Φ73mmDrill angle 10-23° 10-22° 10-23° 10-20° 10-20°Maximum mud flow 160L/min 250L/min 320L/min 320L/min 320L/minMaximum mud pressure 100bar 80bar 80bar 80bar 80barOverall quality 6700kg 8500kg 12500kg 11500kg 11200kgDimensions (length*width*height)

5700*1820*2400

mm

6400*2270*2340

mm

7100*2260*2450

mm

7100*2250*2450

mm

7662*2162*2450

mm





Feature:



1.Do not obstruct traffic, do not damage the road.
2.High precision, can be turned, the depth can be adjusted at any time, and obstacles can be avoided.
3.City construction will pass three meters, and the river will reach 6-18 meters.
4.The project period is short, the construction personnel are less, it is safer and the cost is lower.

Trenchless Drilling Horizontal Directional Drilling Machine Ddw-200 Pullback Force 20t HDD MachineTrenchless Drilling Horizontal Directional Drilling Machine Ddw-200 Pullback Force 20t HDD MachineTrenchless Drilling Horizontal Directional Drilling Machine Ddw-200 Pullback Force 20t HDD MachineTrenchless Drilling Horizontal Directional Drilling Machine Ddw-200 Pullback Force 20t HDD MachineTrenchless Drilling Horizontal Directional Drilling Machine Ddw-200 Pullback Force 20t HDD MachineTrenchless Drilling Horizontal Directional Drilling Machine Ddw-200 Pullback Force 20t HDD MachineTrenchless Drilling Horizontal Directional Drilling Machine Ddw-200 Pullback Force 20t HDD Machine

Packaging & ShippingCompany Information

Trenchless Drilling Horizontal Directional Drilling Machine Ddw-200 Pullback Force 20t HDD Machine



Trenchless Drilling Horizontal Directional Drilling Machine Ddw-200 Pullback Force 20t HDD Machine

Our ServicesFAQ

1.Q:Are you trading company or manufacturer?
A:We are original equipment manufacturer.
2.Q:How long is your delivery time?
A:It is according to the model and quantity.Generally it is 3-5 days if the product are in stock.It will be 15-30 days if you want to customize the product.
3.Q:Do you provide samples? ls it free or extra?
A:Yes,we could offer you the sample.But it's not free.
You need to pay for the sample and the cost of freight.
4.Q:What is your terms of payment?
A:We accept T/T,Westerm Union,Money Gram,Paypal,etc.
