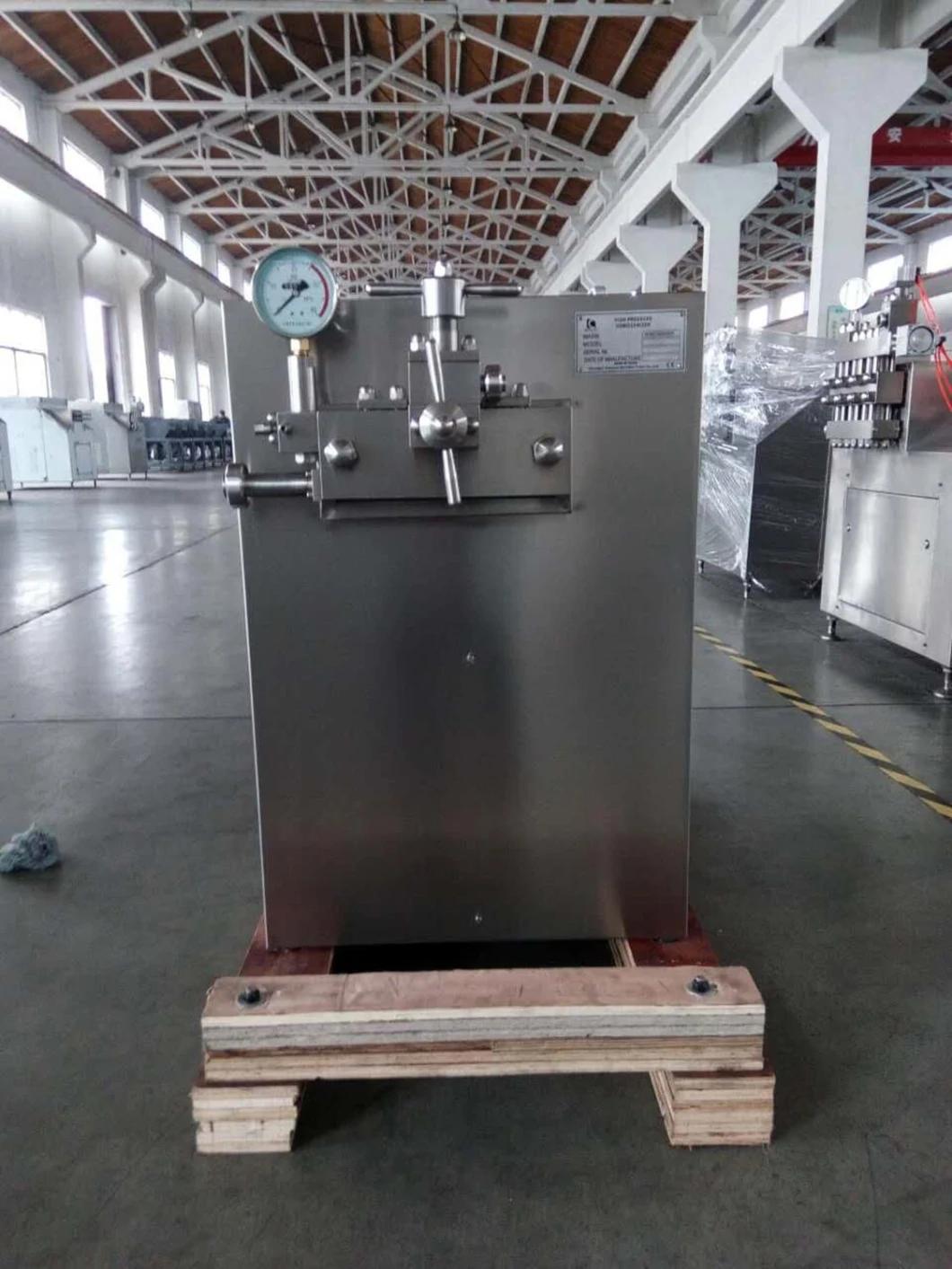

1000lph 2000lph Two Stage 4 Piston Ice Cream Homogenizer Machine

• Process：Mild Processing
• Power Source：Electric
• Certification：CE, ISO9001
• Automatic Grade：Automatic
• Application：Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage
• Customized：Customized

=== Base Info ===

• Model NO.：GJB Series
• Name：1000lph 2000lph Two Stage 4 Piston Ice Cream Homo
• Material：Stainless Steel 304 ,316
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Homogenizer Certificate：Ce,ISO9001
• Homogenizer Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• High Pressure Homogenizer：Customized Electricity Motor
• Motor：Siemens ,ABB,China Brand
• Homogenizer Pressure：Two Stage
• Homogenizer Working Life：More Than 10years
• Packing：Wooden Box
• Warranty：One Year
• OEM：Yes
• Spare Parts：Available
• MOQ：1set
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

=== Description ===

Basic Info.

Model NO. GJB Series Name 1000lph 2000lph Two Stage 4 Piston Ice Cream Homo Material Stainless Steel 304 /316 Capacity 500L/H--10000L/H Pressure 250bar to 700bar Homogenizer Certificate Ce,ISO9001 Homogenizer Appication Milk , Juice, Beverage, Butter, Honey, Cream High Pressure Homogenizer Customized Electricity Motor Motor Siemens /ABB/China Brand Homogenizer Pressure Two Stage Homogenizer Working Life More Than 10years Packing Wooden Box Warranty One Year OEM Yes Spare Parts Available MOQ 1set Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

1000LPH 2000LPH Two Stage 4 Piston Ice Cream Homogenizer Machine
Cream Homogenizer Milk Homogenizer Price Yogurt Homogenizer

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us,  the 250bar milk homogenizer,
CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer,  40MPA homogenizer
Tea drinks homogenizer,  juice homogenizer
homogenizer pumps
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )


1000LPH 2000LPH Two Stage 4 Piston Ice Cream Homogenizer Machine .
