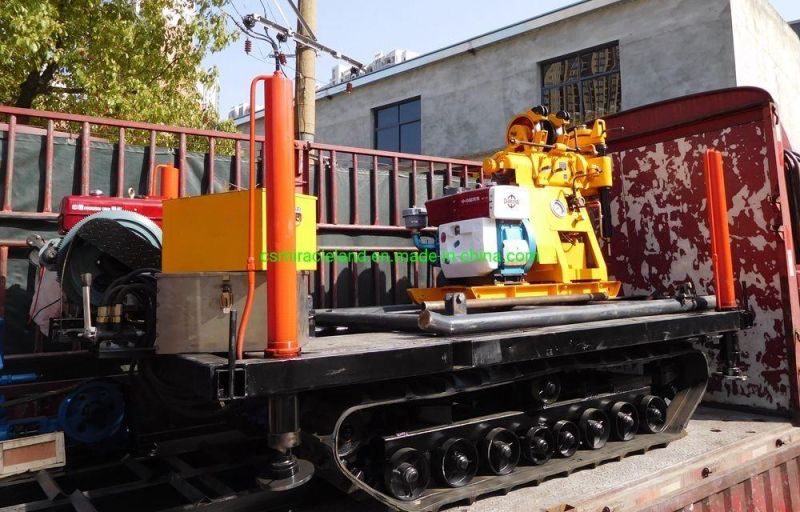

Portable Hydraulic Geotechnical Core Drill Rig (XY-1A)

=== Base Info ===

=== Description ===
Overview Product Description

Product Parameters

2.Swivel head Spindle speed 1010,790,470,140 r/min Spindle stroke450 mm Spindle speed as lifting up no load max3 m/s Spindle speed as lowering down no load max4 m/s Feeding pressure max.23 KN Lifting capacity(single line)max11 KN3.Hoist Lifting capacity(single line)max11 KN Drum speed121,76,36 r.min Drum circumferetial velocity(two layers)1.05,0.66,0.31 m/s Drum dia140 mm Cable dia9.3 mm Spool capacity35 m Brake dia252 mm Brake band broad50 mm4.Oil pump ModelYBC-12/80 Working pressure8 MPa Volume of flow8 ml/r Speed1500 r/min5.Power unit  Diesel engineS1100  10.3KW Related Photos
