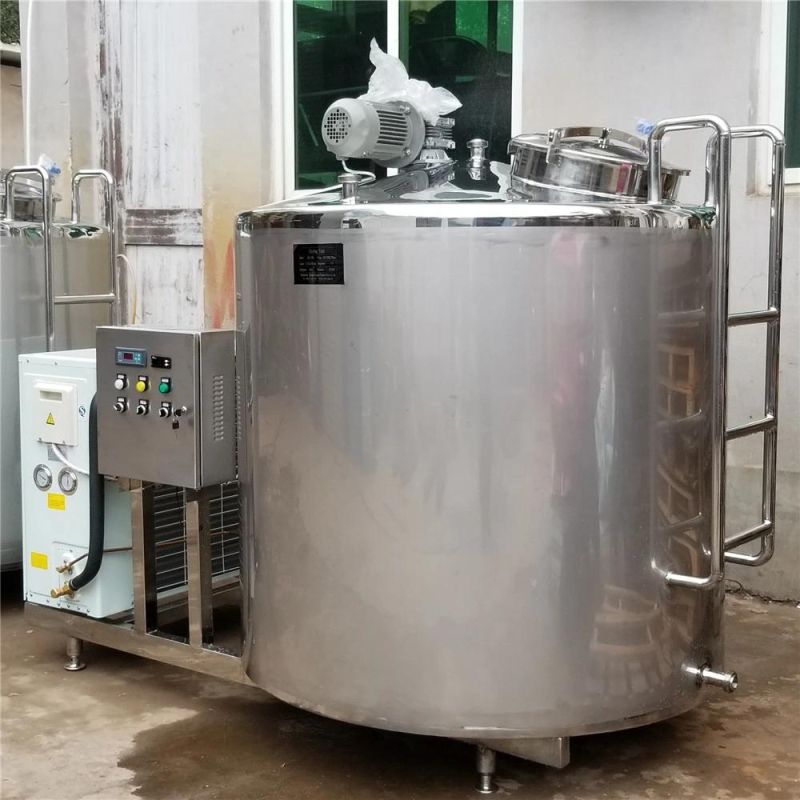

Vertical Type Stainless Steel Cooling Chilling Chiller Price

• Process：Mild Processing
• Power Source：Electric
• Certification：CE, ISO9001
• Automatic Grade：Automatic
• Application：Milk
• Customized：Customized

=== Base Info ===

• Model NO.：KQ Series
• Name：Vertical Type Stainless Steel Cooling Chilling CH
• Material：Stainless Steel 304,316,316L
• Usage：Cooling and Storage Fresh Milk
• Milk Cooling Tank Compressor：USA Copeland
• Refrigerant：R404 , R22
• Milk Transportation Tank：Also Provided
• Milk Vat：with Air Compressor
• Type：Vertical ,Horizontal Type
• Market：Europe ,Latin America ,Middle East
• Delivery：10 Days
• Motor：ABB , Siemens ,China Brand
• Working Life：More Than 10 Years
• Packing：Wooden Box
• Warranty：One Year
• Temperature：Adjustable
• Transport Package：Wooden Box
• Specification：SANITARY, FOOD GRADE
• Trademark：KAIQUAN
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：1000 to 10000L

=== Description ===
TypeKQ-0.5T
Vertical typeKQ-1T
Vertical typeKQ-2T
Laying typeKQ-3T
Laying typeKQ-5T
 Laying typeKQ-6T
 Laying typeKQ-8T
 Laying typeKQ-10T
 Laying typeCapacity(L)50010002000300050006000800010000LRefrigerating Output(W)90009000150002200037000380005500074000Refrigerating  Fluid(R)R22/R404AR22/R404A R22/R404AR22/R404A R22/R404AR22R22R22Insulating Property≤1ºC/4h≤1ºC/4h≤1ºC/4h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/6hAgitator Speed36r/min36r/min36r/min36r/min36r/min36r/min36r/min36r/minPower (Kw)3.83.85.97.510.5111319.2Voltage220V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phasesDimension(mm)1800*1200*15001800*1200*15003400*1550*17503600*1700*19003900*2050*21504500*2050*21506300*2050*22508000*2100*2400Weight(Approximately)0.6T0.6T 0.75T0.9T1.1T1.3T1.8T2.05TUnit Price: FOB SHANGHAI




Milk Chilling Tank, You Can Buy Various High Quality Milk Chilling TankProducts from
Milk cooling & storage. Milk cooling & storage cooling tank and control unit. Rapid and efficient milk cooling is essential for preserving milk qualityrefrigerant tank
Milk Vat from Milk Cooling Tank
Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.
The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device.
