Automatic Non Woven Fabric Roll to Sheet Cutting Machine

• After-sales Service：Online Service, Spare Parts
• Warranty：12 Months
• Application：Textile Machinery, Shoemaking Industry, Advertising Industry
• Cooling System：Air Cooling
• Technical Class：Roll to Sheet Cutting Machine
• Applicable Material：Nonmetal

=== Base Info ===

• Model NO.：DP-1000CQ
• Structure Type：Gantry Type
• Laser Classification：Automatic
• Laser Technology：Laser Control Fault Cutting
• Cutting Blade：High Speed Stainless Steel
• Blade Use Time：Many Years
• Control：Servo Motor and PLC
• PLC Brand：Mitsubishi or Delta
• Transport Package：Plywood Case Packing
• Specification：1000mm
• Trademark：DAPENG
• Origin：China
• HS Code：844110000
• Production Capacity：200 Set Per Year

=== Description ===
ModelDP-1000  Voltage220VPower4HP N.W. 1800KGSheeting Length                 0.1-9999.9mmSheeting width1-1000mmSheeting precision±0.05mm(0-180mm)Sheeting speed                                           75(cut/min)Machine size1950x1800x1350mmunwinding shaft diameter3 inchunwinding diametermax 600mm   Electrical listing :Touch Screen Programmable Controller Servo Driver Servo Motor Motor of cutting knife AC Contactor Solid State Relay 20AFrequency converter

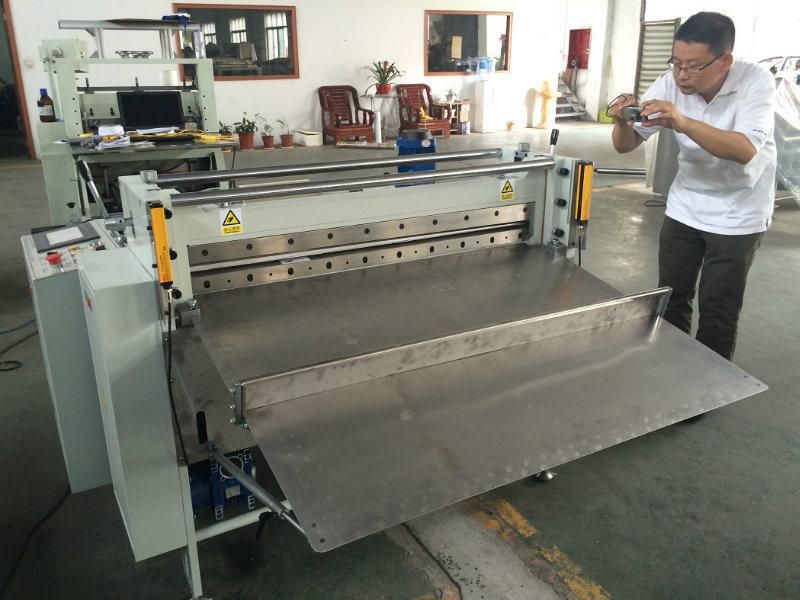

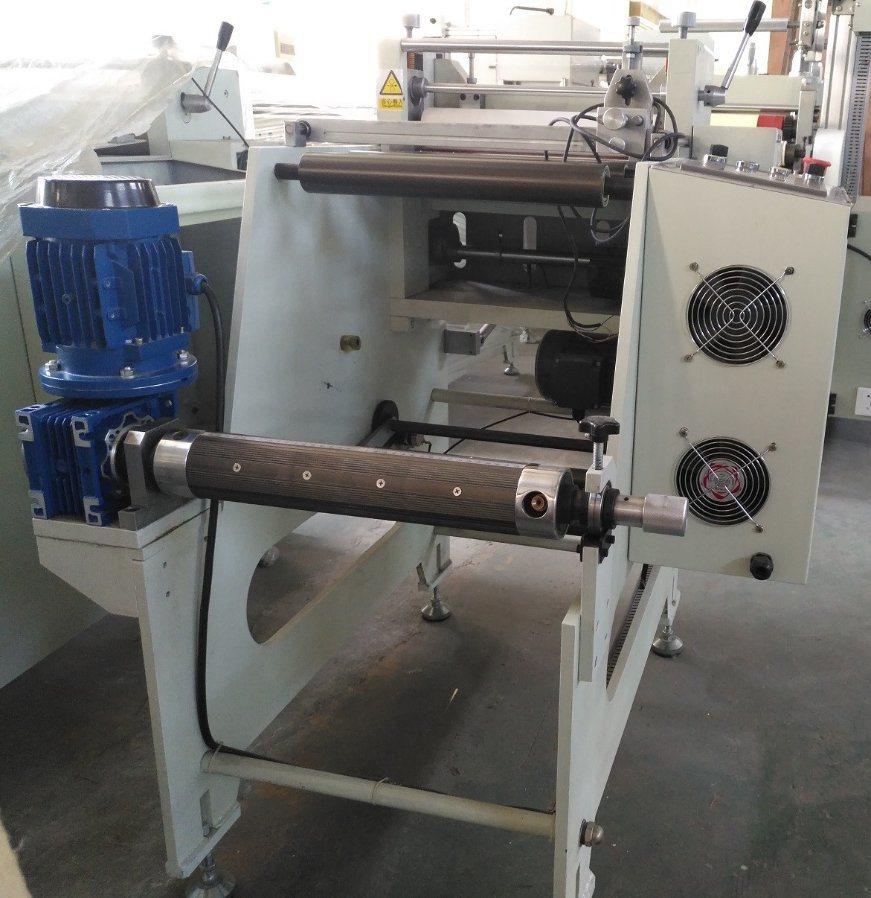

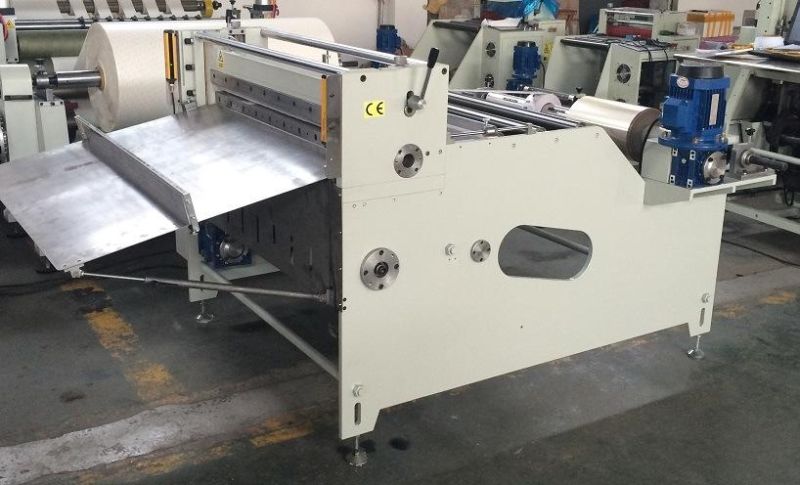

machine show

other size machine :
360mm/500mm/600mm/800mm/1000mm/1400mm

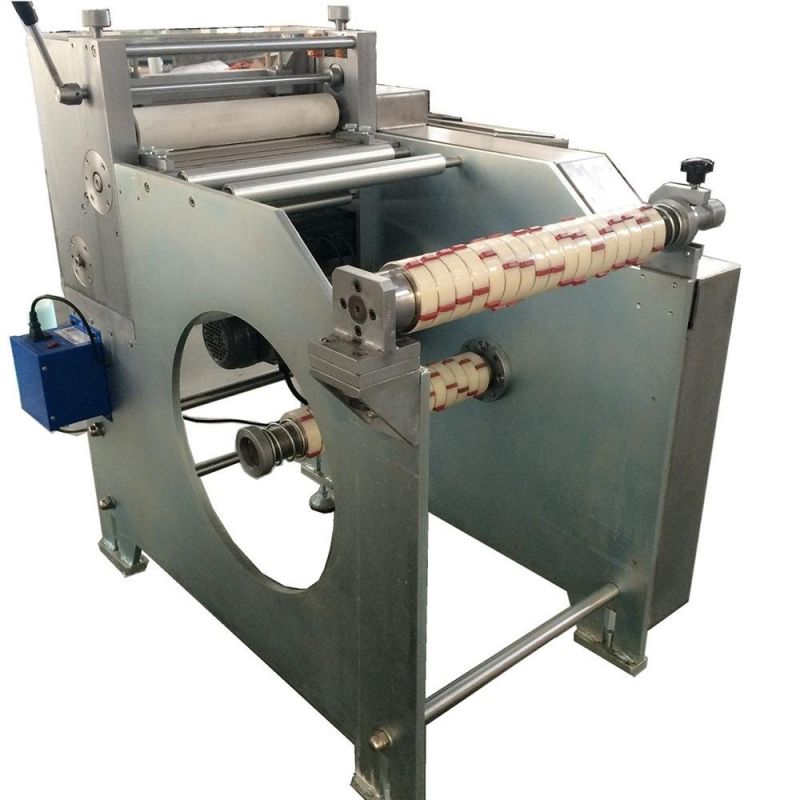

Below is more strips unwinding and sheet cutting type  :
