PPR Plastic Pipe Extruder

=== Base Info ===

=== Description ===

Basic Info.

Model NO. KBL-63PPR Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Transport Package Export Standard Package Trademark kebeln Origin China HS Code 8477209000

Product Description

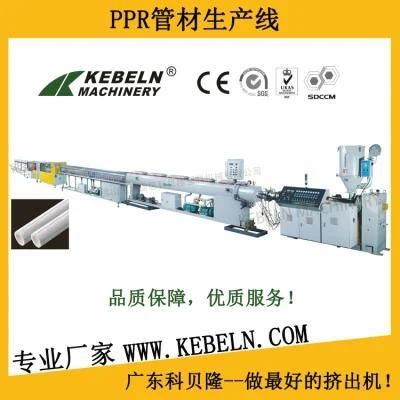

This line is special for PP-R pipe. The main machine is the Single-screw Extruder with PLC control or button control.

PPR pipe extrusion extruder machine

PPR cool and hot water pipe extrusion line is mainly used by single screw extruder for extruding the pipes with various tube diameters and the wall thickness which have been widely applied in the aspects such as the residential water-supply system, industrial-purpose water conveyance etc. In the international tube developing history, PP-R are the latest popularized goods.

They have the features such as low price, poison less, non-rust, heat-resistant, easy installation etc. The unit is mainly composed of the single screw extruder, vacuum forming table, spray box, extractor, stirring-up rack and so on.


Model	pipe range(mm)	extruder model	max. capacity(kg/h)	motor power(kw)	length of plant(m)
KBL-63PPR	16-63	KBD65-33	200	55	35
KBL-110PPR	20-110	KBD65-33	200	55	36
KBL-160PPR	50-160	KBD75-33	400	110	37
KBL-250PPR	75-250	KBD75-33	400	110	38
KBL-315PPR	160-315	KBD75-33	400	110	40
KBL-450PPR	160-450	KBD90-33	600	185	41
KBL-630PPR	315-630	KBD120-33	1000	280	56
KBL-800PPR	315-800	KBD150-33	1200	355	59
KBL-1200PPR	630-1200	KBD150-33B	1400	400	74
