Large Bulk Big Bags Used in Transportation Chemical Powders

FLS Packaging (Nantong) Co., Ltd. / 2022-06-09

Large Bulk Big Bags Used in Transportation Chemical Powders

  • Application:Food, Chemical
  • Feature:Moisture Proof, Recyclable, Bio-Degradable, Antistatic
  • Material:PP
  • Shape:Square Bottom Bag
  • Making Process:Plastic Packaging Bags
  • Raw Materials:Polypropylene Plastic Bag

=== Base Info ===

  • Model NO.:FLS-82
  • Transport Package:Pallet
  • Specification:36X36X38"
  • Trademark:FLS
  • Origin:China
  • HS Code:63053200

=== Description ===

Shape

 Upanel  type C

Capacity

2205LBS

Safety factor

5:1

Base size

36*36'',

Height

As per request

Color

white

Material

100% virgin polypropylene, 5OZ

Coated,

Top type

with filling spout: 14''(D)*18''

Bottom type

discharge spout: 14''(D)*18'' with star petal or iris spout,

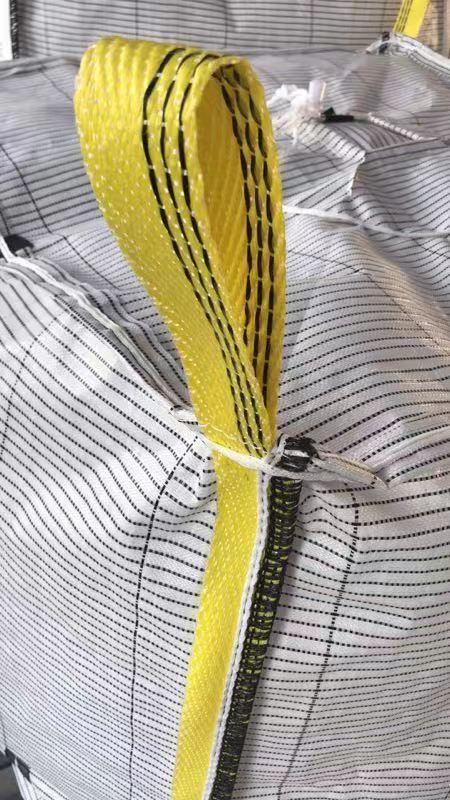

Lifting loops

yellow, corner loops

Perimeter belt

Width: 2''

UV stabilized

1% UV to 3%  treated

Document pouch

PE ziplock,

Label

As per request

Printing

None

Stitching

chain and overlock stitching

Packing

Packed on pallets,

20pallets/20'FCL,

44pallets/40'FCL

Lead time

25days for 1 x 20'FCL;

45days for 1 x 40'FCL



1. Some bulk materials can create static energy during filling and discharging. In order to avoid this,

    grounded conductive big bags are adopted for filling flammable items. With the bags earthed, the

    application of the -60KV corona voltage produces a surface potential on bags of less than 5KV.

2. Conductive fibers are interwoven to fabric and webbing. To dissipate electrostatic charge by

    grounding.

3. Resistance to earth is less than 108ohm. It contains conductive threads and tapes.



4. Type C bags can effectively remove the static electricity generated from loading and unloading the

    products, preventing combustion and explosion.



5. The bulk bag is an internally baffled FIBC (flexible intermediate bulk container) with spread strap lift

loop design, and can contain 25% to 30% more than a conventional super sack of the same height. The

unique double coated baffle fabrication prevents contamination and is the cleanest in the industry.



Application:



FIBC Bags with advantages of light weight, moisture-proof, dust-proof, no leakage, resistance to radiation, Acid corrosion, strong security, excellent performance, able to carry chemical, cement, grains, minerals and other kinds of powder, granular, quick-like material, applicable to mechanical loading, is the ideal products to reduce costs of packaging and transport.



  • Type A: No special electrostatic safety features and are just common-used bags.
  • Type B: Being not capable of generating propagating brush discharges. The wall of this FIBC exhibits a breakdown voltage of 4 kilovolt or less.
  • Type C: Conductive FIBC. Constructed from electrically conductive fabric, designed to control electrostatic charges by grounding. A standard fabric contains conductive threads or tape.
  • Type D: Anti-static FIBCs essentially refer to those bags which have anti-static or static dissipative properties without the requirement of grounding
