CO2 Laser Engraving Machine for Leather/Wood/Acrylic/MDF Engraver with High Precision

• Application：Leather Industry, Advertising Industry
• Cooling System：Air Cooling
• Technical Class：Pulse Laser
• Automatic Grade：Automatic
• Applicable Material：Nonmetal
• Type：Flat-Plate

=== Base Info ===

• Model NO.：DW1410
• Laser Classification：Free Electron Laser
• Engraving Method：Vector Engraving
• Drive Type：Stepper Drive
• Certification：Ce, FDA
• Laser Type：CO2
• Control：Automatic
• Current：AC
• Condition：New
• Engraving Machine Type：Laser Engraving Cutting Machine
• Usage：Metal and Nonmetal Materials
• Power：80W,100W,130W,150W,180W
• Transport Package：Plywood Box, Free of Fumigation
• Specification：CE, FDA
• Trademark：DWIN
• Origin：Jinan City, Shandong Province
• HS Code：8456100090
• Production Capacity：50 Sets,Month

=== Description ===

Basic Info.

Model NO. DW1410 Laser Classification Free Electron Laser Engraving Method Vector Engraving Drive Type Stepper Drive Certification Ce, FDA Laser Type CO2 Control Automatic Current AC Condition New Engraving Machine Type Laser Engraving Cutting Machine Usage Metal and Nonmetal Materials Power 80W/100W/130W/150W/180W Transport Package Plywood Box, Free of Fumigation Specification CE, FDA Trademark DWIN Origin Jinan City, Shandong Province HS Code 8456100090 Production Capacity 50 Sets/Month

Product Description

                                           Laser Engraving Cutting Machine for Sale(DW1410)


 Technical parameter of co2 laser cutting machine

NO.	Model	DW1390/DW1410/DW1290/DW1325/DW1610
1	Laser medium	CO2
2	Working area	1300*900mm or optional
3	Working table	Knife table or honey comb table
4	Laser power	80W, 100w, 130w, 150w,260W/300W etc.
5	Power Supply	220V/50Hz, 110V/60Hz
6	Min line width	≤0.15mm
7	Positon accuracy	0.01mm
8	Repetition accuracy	0.02mm
9	Cutting speed	150mm/s
10	Guide rail	Hiwin from Taiwan
11	Transmission method	Belt Transmission
12	Drive system	Leadshine driving system and stepper motor
13	Cooling system	Water-cooling
14	Control system	leetro off-line
15	Control software	Coreldraw, Photoshop, AutoCAD, Tajima
16	Graphic format support	PLT, DXF, BMP, JPG ,AI and ect
17	Working environment	0-45°C,
18	Operating Humidity	5-95%
19	Gross Power	400KG
20	Net weight	500KG
21	Dimensions	1530*1210*1560mm

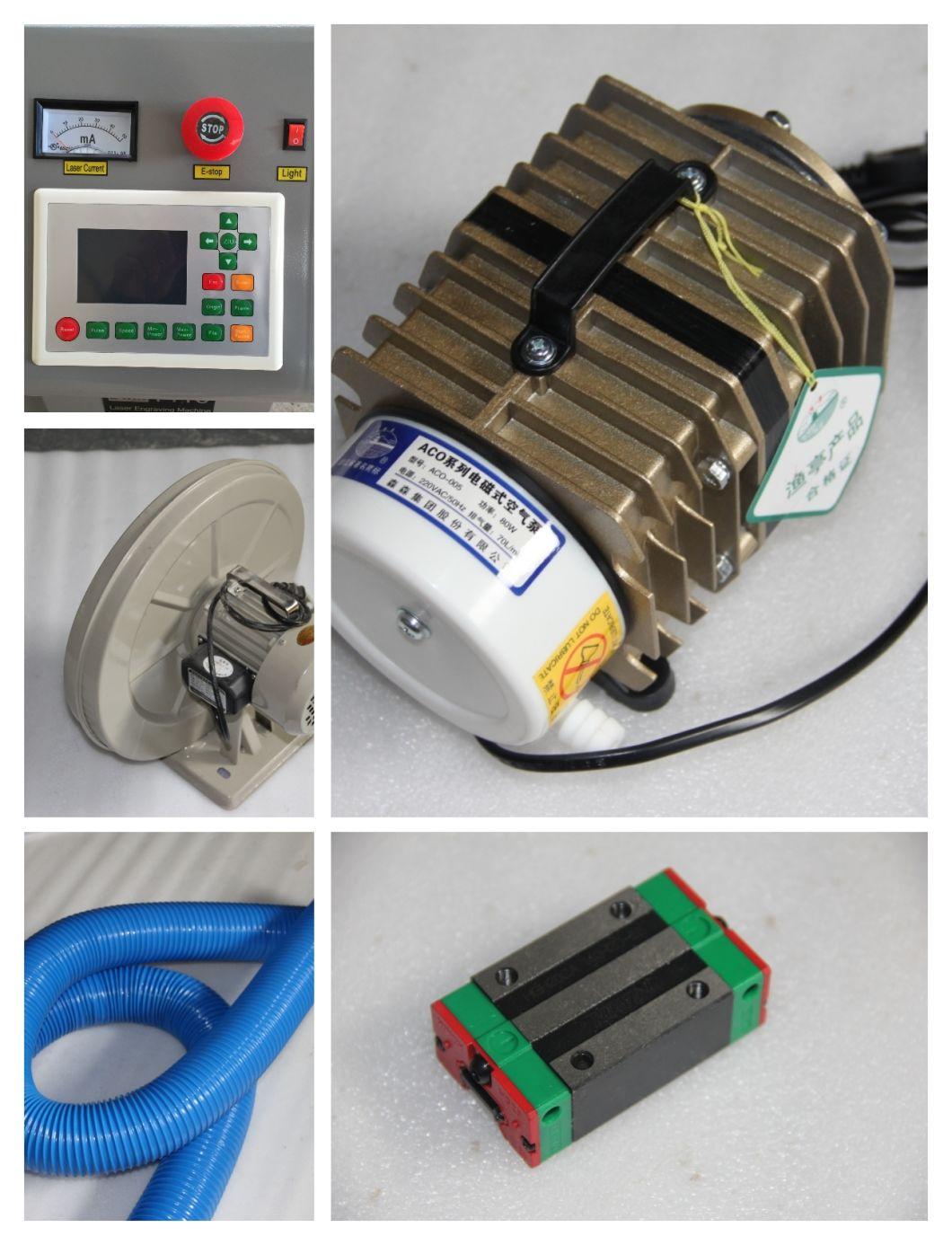

22	Optional Parts	Honey nest table USB Feature Up-down work table Auto focus Rotary System

 1.  Characteristics of co2 laser cutting machine

1).High speed laser cutting machine adopts the new high efficiency laser tube,the laser beam is

more stable than the traditional type,and the life time of the laser tube can be over 10000 hours.

2).Compared with the ordinary laser machine,the seri Laser cutter price 1390 es adopts more scientific design and high

strength steel-frame structure,which increase the fuselage strength more than 40% to prevent

the machine from split during long term work.

3).The humanized and model appearance shows Ruijie Machinery consistent humanity idea,

and it also makes the operation and maintain quite easy.

4).Advanced RD or Leetro control system,professional motion control chip,consecutive high

speed curve cutting and the shortest path selection function improve the working efficiency a lot.



2.  Application of 80w co2 laser cutting machine

(1). Applicable materials:

Acrylic, wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,

glass and other nonmetal materials,etc.

(2). Applicable industries:

1) Advertising industry:
    a) Double-colored board carving
    b) Organic glass carving and cutting

    c) label carving

    d) crystal cup carving

    e) Warranty signed carving
2) Carved gifts and crafts industry:
    a) Wood
    b)Bamboo
     c) Ivory
    d) Bone
    e) Leather
    f) paper

3) Packing and printing industry:
    a) Rubbery board
    b) Plastic board
    c) Double-layered board
    d) Model cutting board

4) Leather clothing industry:
    a) Complex characters and pattern carving
    b) Cutting on hypoderm
    c) Synthetic leather
    d) Man-made leather
    e) Cloth

5) Architectural model industry:
    a) ABS board cutting
    b) Model carving

6) Production totem industry:
    a) Appliance signs
    b) Anti-fake commodities marking

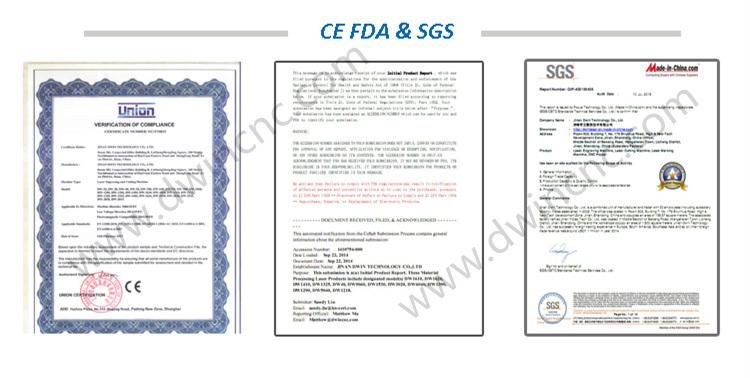

our certificate :


The exhibition (2019 in shanghai )


Our Servies:

1. The machine guarantee is 12 months.
2. 24 hours technical support by email or calling.
3.  Friendly English verson manual and operation video CD disc.
