PA66 Thermal Strip Extruder Machine/ Polyamide Strips

=== Base Info ===

=== Description ===

Basic Info.

Model NO. HC-S70 Engagement System Non-Intermeshing Screw Channel Structure Non Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Non-Computerized Material Polyamide, Glass Fiber Usage General Plastics, Engineering Plastics Plastic Properties Thermoplastic Plastics Plastic Forming Method Extrusion Power 38kw Weight 3-5 Tons Speed Around 8-10cm/Min Strip Shape All Kinds of Shape After-Sales Service Engineering Available to Service Machinery Oversea Transport Package Plywood Case Specification Thermal break polyamide profile extruder Trademark Huachuang Origin Zhangjiagang, China HS Code 8477209000 Production Capacity 20 Sets/Month

Product Description

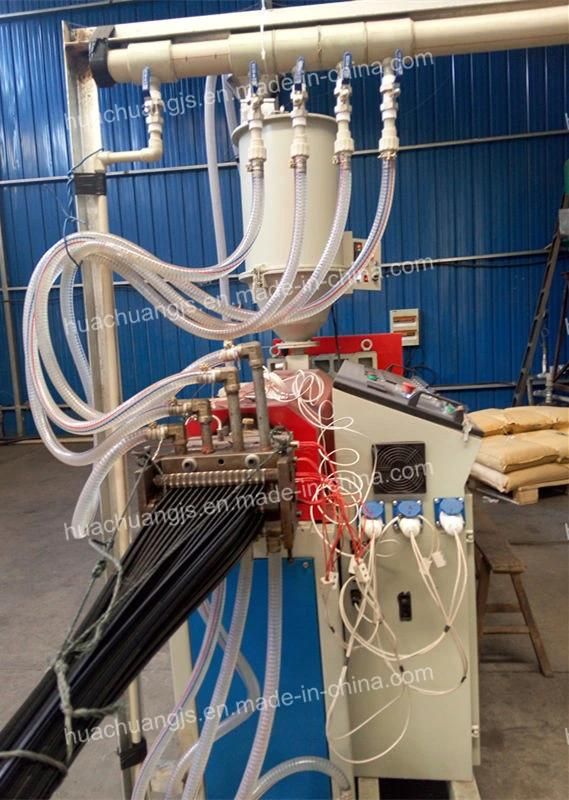

Polyamide  Thermal Break Profile Extruder

Processing Technique:
Nylon material → drying → heating → extrusion → stereotype → finished product

This equipment is assembled with precision fittings such as bi-metal screw, screw barrel, imported frequency converter, imported temperature control meter and high-precision gear box. It is an excellent equipment for producing PA66 nylon extruding Profile.

1. The main part of machinery adopts high-quality cemented carbide screw to ensure the high plasticization of PA66+GF25. The main engine is energy-saving and the speed is stable. The speed of the main and auxiliary machines can be synchronized.
2. The die head is made according to German advanced technology, with short runner and no dead angle. The surface of the heat insulating strip is bright, with accurate tolerance and high strength.
3. Using imported temperature control meter, one meter controls one temperature control system to control the temperature accuracy to ±1C°.
4. Operating floor: stainless steel strip placement slot. Adjustable length 6 meters
5. Winding machine: The torque motor control system is used to adjust the winding tension. 500 meters or 1000 meters per roll.
6. The barrel is heated by stainless steel heater, withstanding 400 V.
7. The professional dryer makes the material and the hot air convect evenly, and the drying uniformity is good. Its thermal insulation structure prevents heat dissipation and promotes energy saving.

Parameters of Single Screw Reactive Extruder

Model	Capacity	Screw diameter	Power	Voltage	Loading of Dryer
BY-S60	18-25kg/h	60mm	8kw	380V	75kg
BY-S70	20-35kg/h	70mm	16kw	380V	100kg
BY-S80	20-60kg/h	80mm	25kw	380V	150kg

Why use polyamide strip as thermal barrier function?
1. Because polyamide strip including Polyamide and glass fiber, Its Strength can reach requirement for aluminium profile window, door, curtain and walls.
2. Conductivity of polyamide strip is very low, prohibit hot air or cold air transferred from outside to inside, energy saving product





Application of polyamide strip:
1. Used for thermal break aluminum window, door, curtain and walls
2. Many customer use thermal break aluminum profile to do big air conditioner to keep heat of cold air, then make use of energy saving




Our advantage:

1. we can make good quality strips moulds, including the complicated moulds.
2. We can supply the whole produce line, including raw material, Parallel twin-screw granulator and the Extruding machine of thermal barrier strip.




Our Service
Before sales
1. introduce products in detail
2. recommend suitable solutions
3. provide with reference information

During manufacturing
1. provide with layout and engineering conditions
2. inform the processing status
3. offer related documents

After Sales
1. provide installation, commissioning and training
2. offer spare parts
3. Provide with necessary technical support



Our Factory
