Metal Oil Paint Rust Remover Laser Cleaner Cleaning Machine 100W 200W 500W

• Laser Power：100W (120,200,500 Optional)
• Operation Type：Automatic
• Usage：Rust Paint Remover Machine
• Products Name：120W Fiber Laser Clean Rust Paint Remover Machine
• Cooling Method：Air Cooling
• Operating Mode：Hand Holding

=== Base Info ===

• Operating Environment Requirement：Temperature: 0-40ºC, Humidity :20%-80%
• Gross Power：2kw
• Electricity Demand：AC220V,50Hz
• Laser Cable Length：5m ( 10m Optional )
• Model Size：65cm*43cm*100cm
• Scanning Gun Weight：<2.5kg
• Wavelength：1064nm
• Beam Quality：M2<1.8
• Certification：Ce, ISO, SGS
• Transport Package：Plywood Package
• Specification：650*430*1000mm
• Trademark：Dp
• Origin：Shenzhen China
• HS Code：8422200000
• Production Capacity：300

=== Description ===

Basic Info.

Operating Environment Requirement Temperature: 0-40ºC, Humidity :20%-80% Gross Power 2kw Electricity Demand AC220V/50Hz Laser Cable Length 5m ( 10m Optional ) Model Size 65cm*43cm*100cm Scanning Gun Weight <2.5kg Wavelength 1064nm Beam Quality M2<1.8 Certification Ce, ISO, SGS Transport Package Plywood Package Specification 650*430*1000mm Trademark Dp Origin Shenzhen China HS Code 8422200000 Production Capacity 300

Product Description

Laser cleaner machine

Type  :DP-CL120W

type 1 :




Type  :DP-CL200W





Model features

1. Easy to install, light and compact, low noise, suitable for all kinds of processing environments.
2. Quick, smooth and accurate cleaning to remove surface paint, coating and oxide layer.
3. No chemical reagents, no water, no dust, environmentally friendly cleaning.
4. Dedicated laser control system, powerful, automatic operation, easy to operate




Application field

1. It can clean the rust, oil removal and paint removal of various molds and metal tools.
2. Mainly used in mold, hardware, electronics, metallurgy, petrochemical and other industries.
3. Can be applied to the pre-treatment of various metal surface cleaning and maintenance work

Product advantages

1. Stable equipment, low operating cost, zero consumables, long-term use, zero maintenance.
2. Imported laser, good beam quality and long life.
3.No damage to the processed substrate, energy saving and environmental protection, no secondary pollution.

Technical parameter:


Model :	DP-CL100W
Laser power:	100w (120/200/500 optional)
Wavelength	1064nm
Beam quality	M2<1.8
Lifetime	≤10W hrs
Frequency	80-1000khz
Electricity demand :	AC220V/50HZ
Gross power :	2KW
Cooling method:	Air cooling
Laser cable length	5M ( 10M optional )
Operating mode	Hand holding
Operating environment requirement:	Temperature: 0-40ºC, Humidity :20%-80%
Model size:	65cm*43cm*100cm
Scanning gun weight :	<2.5kg

Advantages of Laser Cleaning machine


Compared with the traditional cleaning methods such as mechanical friction cleaning, chemical corrosion cleaning, liquid solid strong impact cleaning and high frequency ultrasonic cleaning, laser cleaning has obvious advantages.

1. It is a "green" cleaning method. It does not need any chemical reagent and cleaning liquid. The waste cleaned is basically solid powder. It is small, easy to store and recycle, and can easily solve the environmental pollution caused by chemical cleaning.

2. The traditional cleaning method is contact cleaning, which has mechanical force on the surface of the cleaning object, damages the surface of the object or the cleaning medium adheres to the surface of the object being cleaned, which can not be removed, resulting in secondary pollution. The non-abrasion and non-contact nature of laser cleaning make these problems easy to solve.

1. Laser can be transmitted through optical fibers, cooperate with robots and robots, realize remote operation conveniently, and can clean the parts that are not easy to reach by traditional methods, which can ensure the safety of personnel in some dangerous places.

4. Laser cleaning can remove all kinds of pollutants on the surface of various materials and achieve the cleanliness that conventional cleaning can not achieve. It can also selectively clean the contaminants on the surface of the material without damaging the surface of the material.
5. Laser cleaning has high efficiency and saves time.
6. Although the purchase of laser cleaning system has a high one-time investment in the early stage, the cleaning system can be used stably for a long time with low operation cost.
Traditional cleaning industry has a variety of cleaning methods, mostly using chemical agents and mechanical methods for cleaning. With the increasingly stringent requirements of environmental protection laws and regulations and the increasing awareness of environmental protection and safety, the types of chemicals that can be used in industrial production cleaning will become less and less. How to find a cleaner and non-damaging cleaning method is a problem we have to consider. Laser cleaning is considered to be the most reliable and effective solution because of its non-abrasive, non-contact, non-thermal effect and applicability to various materials. At the same time, laser cleaning can solve the problems that can not be solved by traditional cleaning methods.

Principle of Laser Cleaner machine

The cleaning process of pulsed Nd:YAG laser depends on the characteristics of the optical pulse generated by the laser, and is based on the photophysical reaction caused by the interaction of high intensity beam, short pulse laser and the contaminated layer. Its physical principles can be summarized as follows:
A) The beam emitted by the laser is absorbed by the contaminated layer on the surface to be treated.
B) The absorption of large energy forms a rapidly expanding plasma (highly ionized unstable gas), which produces shock waves.
C) Shock waves cause pollutants to become debris and be removed.
D) The width of the optical pulse must be short enough to avoid the thermal accumulation of the damaged surface.
E) Experiments show that when there are oxides on the metal surface, plasma is generated on the metal surface.
The plasma is produced only when the energy density is higher than the threshold, which depends on the removal of the contaminated layer or oxide layer. This threshold effect is very important for effective cleaning under the condition of ensuring the safety of the substrate material. There is a second threshold for the appearance of plasma. If the energy density exceeds this threshold, the substrate material will be destroyed. In order to clean the substrate effectively, the laser parameters must be adjusted according to the situation, so that the energy density of the optical pulse is between two thresholds strictly.




Shenzhen Dapeng Laser Technology Co. Ltd.

    Shenzhen Dapeng Laser Technology Co., Ltd. was established in 2008, is a research and development, manufacturing, sales and service in one of the laser equipment high-tech enterprises, is committed to laser technology research and development, laser equipment design research and development, production,
technical support, services and consulting



        The company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc. Products Used in electronics, IC chips, electrical appliances, lighting, jewelery, hardware tools, sanitary ware, instrumentation, automobile and motorcycle accessories, mobile communication parts, mold, precision machinery, medical equipment, IT digital, metal shell, military aviation components , Clothing leather, craft gifts, advertising decoration, model, cookware tableware, kitchenware and other industries



       Dapeng laser product quality is stable and reliable, with professional R & D team, the pursuit of excellent quality at the same time, Dapeng laser also provides customers with timely, comfortable pre-sale, sale, after-sales service and excellent cost-effective products.
       Dapeng laser through the implementation of "to help customers succeed, create value model, to create industrial laser equipment industry services high-end brand" business philosophy, won the majority of users trust and praise. Customers located throughout the country and overseas, 2016 sales of laser equipment more than 5,000 sets .

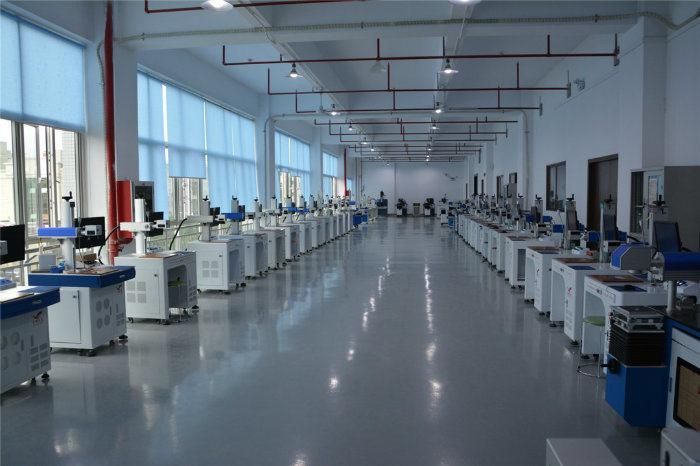

          The company established a sound production and sales and after-sales service system, in Shenzhen, Wenzhou, Kunshan, Xiamen has a production base. In Dongguan, a large laser cutting machine production base.
And in major domestic industrial cities and regions with offices, the offices have equipment display, process proofing, sales and after-sales service, resident technical service personnel, to provide customers with timely, comfortable pre-sale, sale, after-sales support And services.


         Dapeng people know that quality and service is the fundamental survival of the company, innovation is the basis for long-term development of the company to help customers create value, and strive to build the laser equipment industry well-known brands, look around the world, win-win cooperation and create a better future
