Automatic Plastic Bottle Blowing Machine Shampoo Detergent Liquid Food Oil Carbonated ...

=== Base Info ===

=== Description ===

Beverage Bottle

Water Bottle / Beverage bottle / Juice Bottle / Coffee bottle....

Food & Daily Chemical bottle

Food oil bottle / Cleaning liquid bottle / Cosmetic bottle /medical bottle ....

Technical Parameter :ModelBL-A2BL-A4SBL-A6SBL-A9SCavities2cavities4cavities6cavities8cavitiesCapacity2000 bottles/hour6000 bottles/hour9000 bottles/hour12000 bottles/hourApplicationPET Bottle stretch blowing machineBottle volume0.1-2L0.1-2L0.1-2L0.1-2LBody diameter<100mm<100mm<100mm<100mmMax bottle height<310mm<310mm<310mm<310mmMain power25KW49KW73KW85KWHp air compressor2.0 m3/min2.4 m3/min3.6m3/min6.0m3/minLP air compressor1.0 m3/min1.6 m3/min2.0 m3/min2.0 m3/minMachine sizes1.9*1.3*2m3.2*1.3*2m3.9*1.3*2m4.5*1.3*2mWeight2000kg3600kg3800kg4500kg

Stepping mechanism:

Type : Servo motor drive

Brand: Yaskawa (Japan)
Servo motor's synchronical high speed and precise positioning. Slide stepping by orbit is swift and stable with less cycle time and higher efficiency.

Mold movement mechanism

Type :  Servo motor drive
Brand: Yaskawa (Japan)
Ensures that the series of the mold motions are simple, accurate, consistent and speedy, making cycle time 0.3~0.5 seconds.

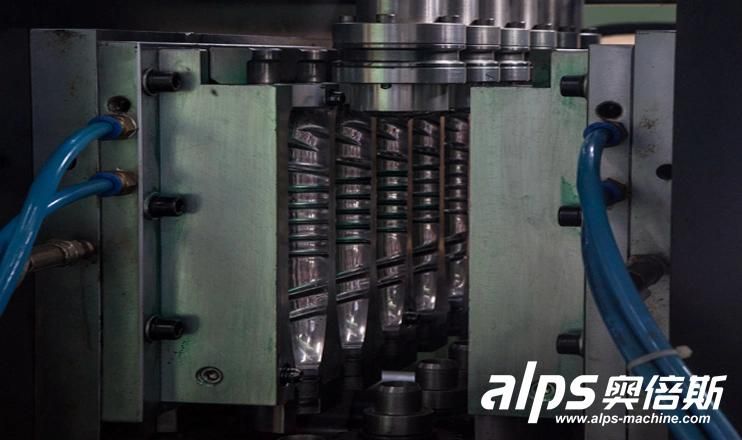

Stretching mechanism & Mould

Type: Servo motor drive
Brand: Yaskawa (Japan)
Ensures the synchronicity of the motion of the rods and makes it easier to do adjustment prior to production.

Heating tunnel

Type: Eco friendly & Energy save
Brand: Lianggu (China)
Each lamp pipe in the heater can be controlled individually. Moreover, the heaters are equipped with the converter controlled circulating air cooling system that can keep the temperature constant inside the heater and preforms heated consistently
Main componetns:

Company introduction

Alps Machine Co.,Ltd is ...
*Standardized workshop of total 12,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
*International certification, National Certificate of equipment verification, and more than 30 invention patents
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

Certification :
Our compnay complies with ISO9001:2000 Internation quality management system,also carries out the modern enterprises management systme ,to executes quality control during the processes of producing ,wins customer' recognition by the high quality products and services.
