- After-sales Service:Online Service
- Warranty:One Year
- Process:Thermal Processing
- Power Source:Electric
- Certification:CE, ISO9001
- Automatic Grade:Automatic
=== Base Info ===
- Model NO.:25MPA
- Application:Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage
- Customized:Customized
- Description:25MPa Homogenizer Milk Homogenizer Price
- Product Material:Stainless Steel 304,316
- Capacity:500L,H--10000L,H
- Pressure:250bar to 700bar
- Homogenizer Certificate:CE Certificate
- Homogenizer Appication:Milk , Juice, Beverage, Butter, Honey, Cream
- Motor:3phases
- Homogenizer Pressure:Two Stage
- Homogenizer Working Life:More Than 10years
- Homogenizer Spare Parts:Provide
- Cooling:Tap Water
- Stage of Pressure:Two Stage
- Spare Parts:Available
- Manual Book:Yes
- Packing:Wooden Box
- Transport Package:Standard Wooden Box
- Specification:CE
- Trademark:KAIQUAN
- Origin:Shanghai, China
- HS Code:8479820090
- Production Capacity:100 Units,Month
=== Description ===
Basic Info.
Model NO.
25MPA
Application
Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage
Customized
Customized
Description
25MPa Homogenizer Milk Homogenizer Price
Product Material
Stainless Steel 304/316
Capacity
500L/H--10000L/H
Pressure
250bar to 700bar
Homogenizer Certificate
CE Certificate
Homogenizer Appication
Milk , Juice, Beverage, Butter, Honey, Cream
Motor
3phases
Homogenizer Pressure
Two Stage
Homogenizer Working Life
More Than 10years
Homogenizer Spare Parts
Provide
Cooling
Tap Water
Stage of Pressure
Two Stage
Spare Parts
Available
Manual Book
Yes
Packing
Wooden Box
Transport Package
Standard Wooden Box
Specification
CE
Trademark
KAIQUAN
Origin
Shanghai, China
HS Code
8479820090
Production Capacity
100 Units/Month
Product Description

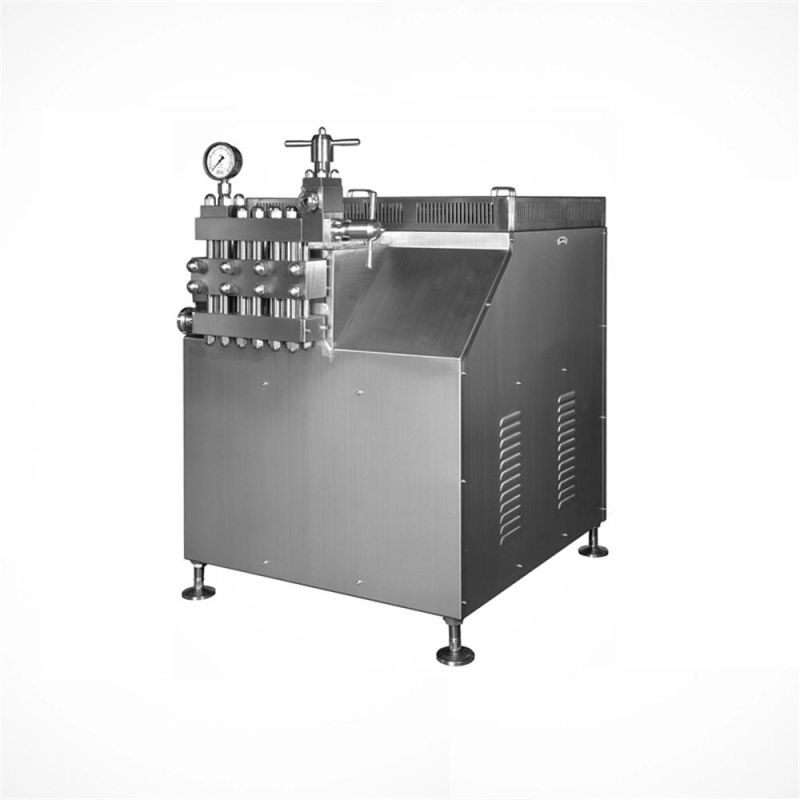

CE Certificated Best Price Shanghai High Pressure Homogenizer/Milk Homogenizer
25MPa Homogenizer/Milk Homogenizer Price:
Model No. Technical parameter | KQ0.5-25 | KQ1-25 | KQ1.5-25 | KQ2-25 | KQ2.5-25 | GJB3000-25 KQ3-25 | KQ5-25 |
Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Rated flow ( Liters/H ) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 5000 |
Medium temperature(C) | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 |
Feeding pipe diameter(mm) | 25 | 25 | 25 | 25 | 25 | 32 | 40 |
Discharge pipe diameter(mm) | 15 | 15 | 20 | 20 | 20 | 20 | 25 |
Power of motor(Kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 45 |
Volt and Electricity Flow | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ | 380V,50HZ | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ |
Outline dimension (m) Length * width * height | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 2.2×1.45×1.1 |
Weight(Tons) | 0.4 | 0.5 | 1.25 | 1.25 | 1.25 | 1.25 | 1.7 |
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
25MPa Homogenizer Milk Homogenizer Price
