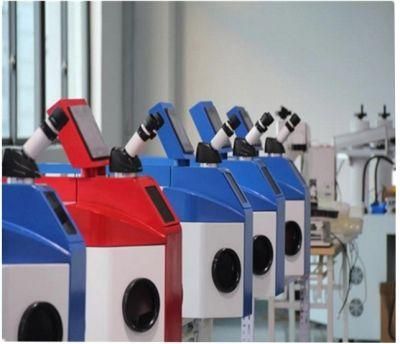

Portable Laser Welding Machine System for Jewellery Repair Glasses Denture Making 200W 60W

• After-sales Service：Provided
• Warranty：1 Year
• Application：Electronic Industry, Automotive Industry, Manufacturing Industry
• Technical Class：Pulse Laser
• Control：Automatic
• Power Density：Deep Fusion Welding

=== Base Info ===

• Model NO.：HJZ-1000-HWD
• Laser Classification：Optical Fiber Laser
• Type：Optical Fiber Transmission Laser Welding Machine
• Terms：Technical Parameters
• Max. Output Power：200W
• Pulse Width：1-5ms
• Wavelength：1064nm
• Software：Rdcam
• Package：Standard Crate for Export
• Laser Welding Pool：0.1mm
• Laser Welder：Gold Laser Welding Machine
• Power Supply：220V,50,60Hz
• Welding Depth：0.08-2.5mm
• Cooling System：Water Cooling
• Pulse Frequency：0.1-100Hz
• Welding Area：300*300mm,2500*1500mm
• Welding Materials：Jewelry Welding
• Transport Package：Standard Plywood Packing for Export
• Specification：840*450*500mm
• Trademark：HZJ
• Origin：Wuhan, China
• Production Capacity：300sets,Month

=== Description ===
Specification of laser welding machineModelHJZ-JWMaximum Output 200WPowerLaser Wavelength1064nmMinimum Diameter of Laser Spot0.2mmMaximum Single Pulse Energy120JPulse Width0.1-20ms Continuously AdjustableRepetition Frequency1-150Hz Continuously AdjustableEnergy Stability for Continuous OutputyesRed Light spot0.2-3.0mmFocus spot0.1-3.0mmPower SupplyAC220V, 50HZSingle package84X45X50 cmG.Weight Approximately 108kgPackage TypeWooden caseWarranty2 YearsWelding materialsjewellry welding
Samples:


Product advantages:
The laser welding machine adopts 100-300 watt fiber laser source, which has high photoelectric conversion efficiency and long life of 100,000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion rate is many times that of YAG laser.

Applicable Fields & Materials:
The machine is widely applied in the fine engraving, cutting and hollowing out on nonmetals with all kinds of characters, graphs, images, trademarks and so on.
*Handcraft industry. Plywood, Glass, Marble, Density board, Gifts, Trophy, Marks, Key chains.
*Furniture, Wood, Bamboo, MDF, Home textile, Seat Cushions, Ceramic.
*Advertising industry, Advertising plate, Acrylic, Plastic, PVC, Signs.
*Garment, Jeans, Leather, Chemical leather, Shoes material.
*Decoration, Paper Board, Organic glass, Vases,Derma.
*Model manufacturing.
