Mining Tools Handheld Pneumatic Y26 Rock Drill Machine for Drilling Vertically

=== Base Info ===

=== Description ===

Basic Info.

Model NO. Y26 Drilling Way Rotary Machine Length 650mm Cylinder Diameter 65mm Piston Stroke 70mm Working Air Pressure 0.4MPa Shank Size 22* 108mm Delivery Time Within 2-3days Transport Package Cartons Packing Specification 26kg Trademark better onward Origin China HS Code 8430390000 Production Capacity 2000sets/Month

Product Description

Introduction of Mining Y26 Handheld Pneumatic Rock drill machine

Y26 hand-held rock drill's  advantages: small volume, light weight and air consumption small.

It is suitable for drilling vertical downward or inclined blasting holes or secondary blasting holes in the surface of small mines, quarries, mountain road construction, water conservancy construction and other engineering construction.

Y26 rock drill has an independent strong blowing system, which is suitable for drilling vertical downward blasting holes.

It can be used in combination with FT170A or FT170B air leg or drill frame. The diameter of the blast hole is generally 34 ~ 42mm, and the max. depth of the hole can be 5m.

Parameter of Mining Y26 Handheld Pneumatic Rock drill machine


Product Model	Y26 pneumatic rock drill
Weight (kg)	26
Overall size (Length* width* height) (mm)	650* 534* 125
Shank size (mm)	H22*108/H25*108
Drilling diameter (mm)	34-42
Drilling depth (m)	5
Cylinder diameter (mm)	65
Piston stroke (mm)	70
Working air pressure (Mpa)	0.4
Working water pressure (Mpa)	0.3-0.35
Drilling Air consumption (L/s)	≤47
Impact Energy(J)	≥30
Drilling frequency (Hz)	≥23
Idle Rotation (r/min)	≥200
Air hose inner diameter (mm)	19
Water hose inner diameter (mm)	13

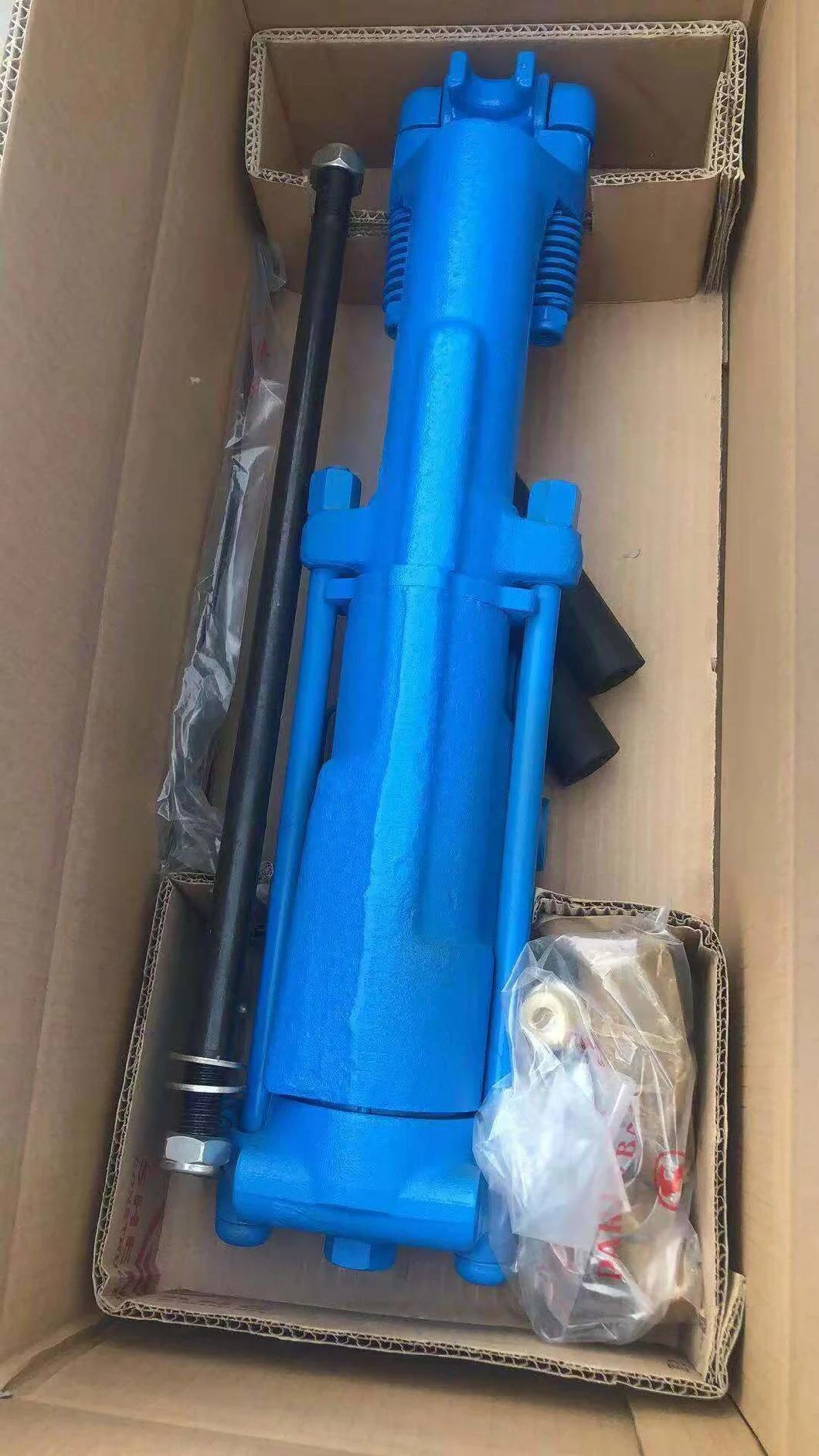

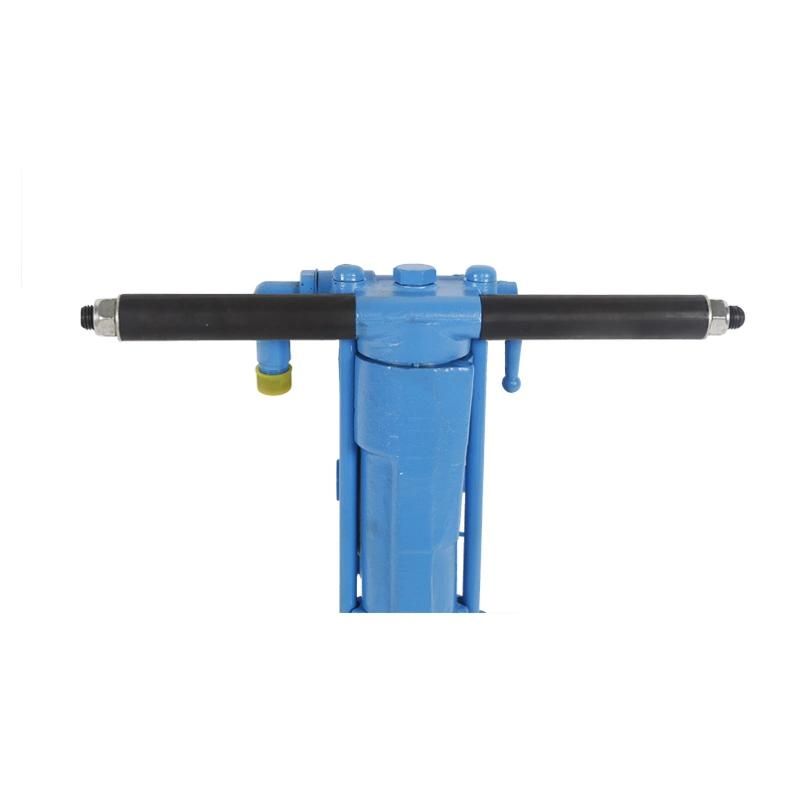

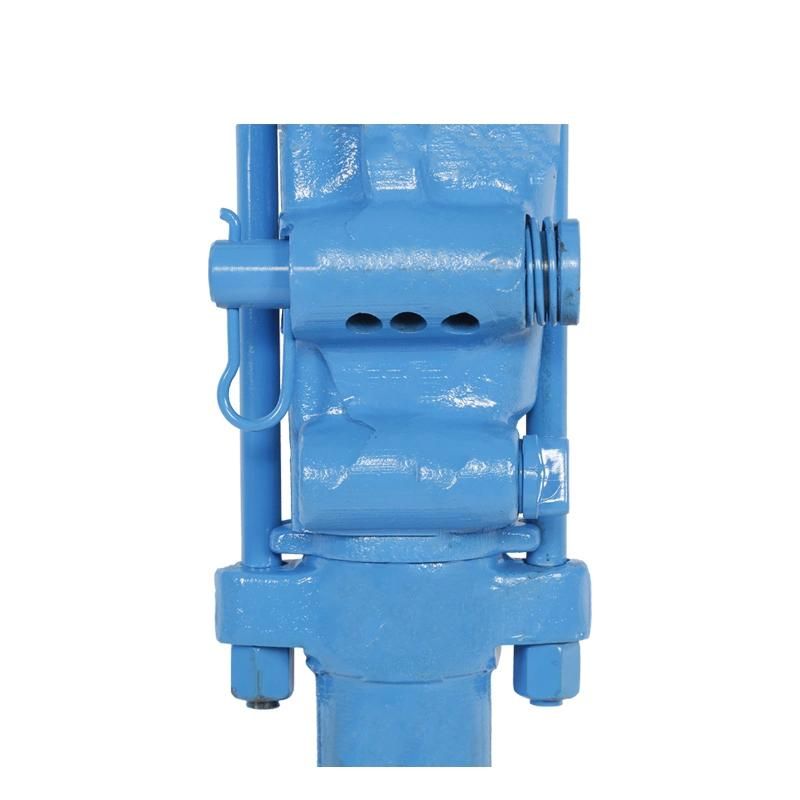

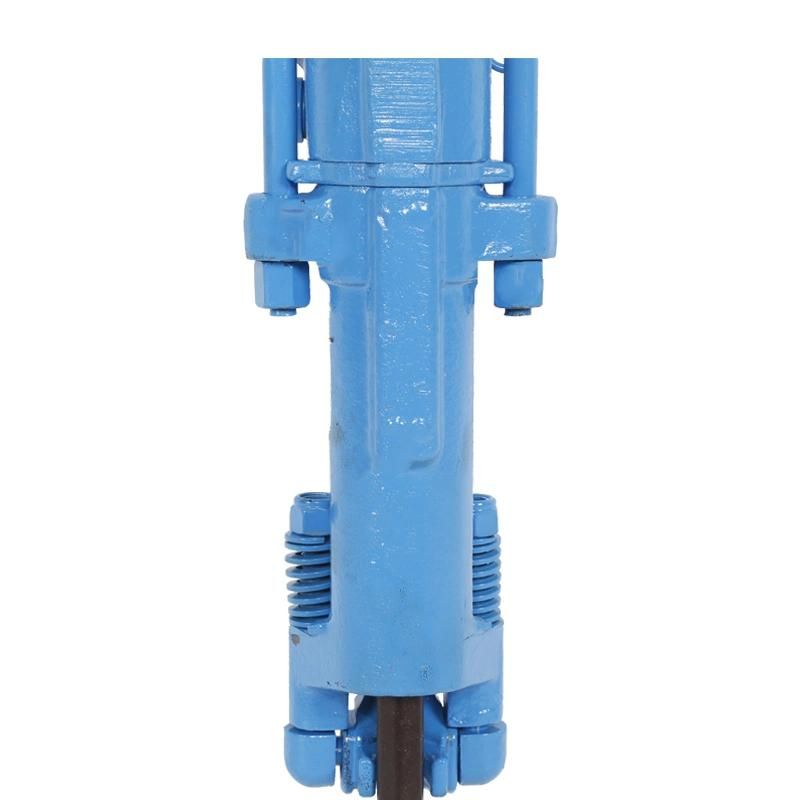

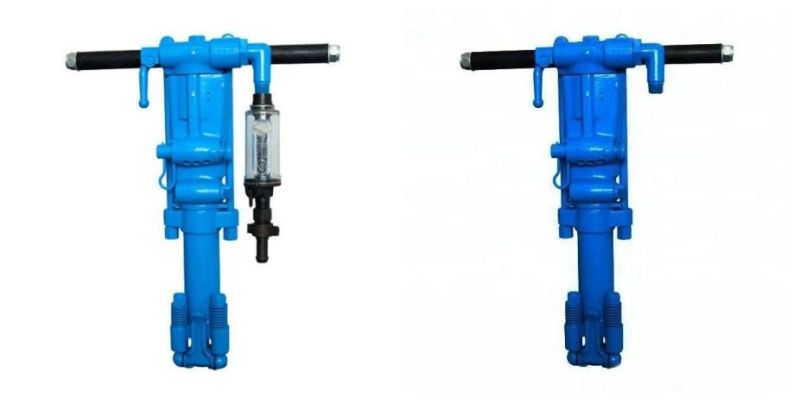

Images of Mining Y26 Handheld Pneumatic Rock drill machine
