HDPE/PP-R Pipr Extrusion Line

=== Base Info ===

=== Description ===

Basic Info.

Model NO. KBL-63PE Condition New Transport Package Standard Packing Specification 400kg/h Trademark kebeln Origin China HS Code 8477209000 Production Capacity 1000pcs/year

Product Description

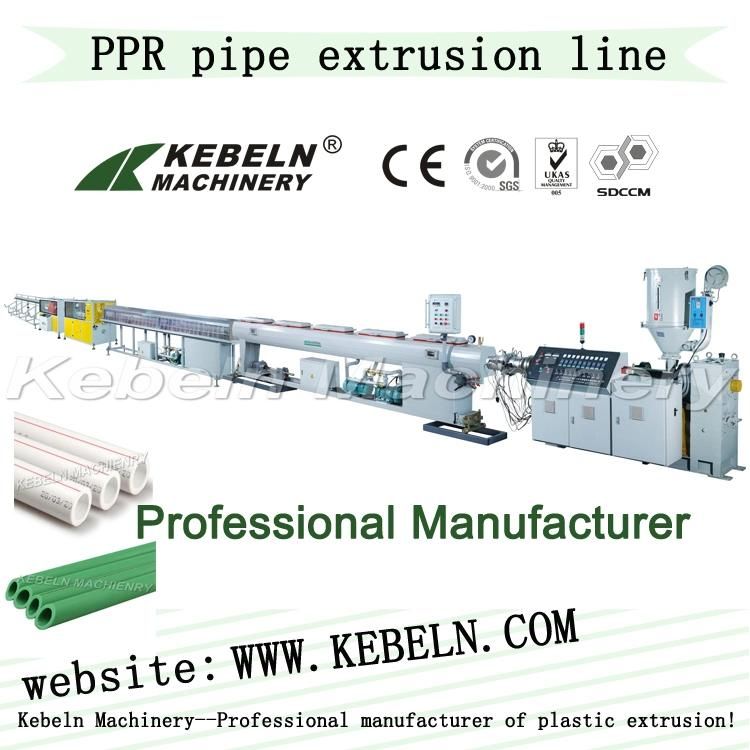

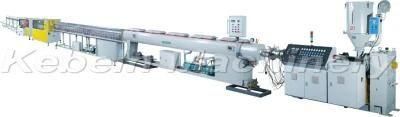

This extrusion line is suitable  for producing all kinds of  PE/PPR pipes  of water supply, draining  or indudtrial cable pipe. The main machine of this extrusion line is the single screw extruder, vacuum forming bath,spray water cooling bath, traction machine, cutter and product stacker. The single screw extruder and tractor machine adopt the imported AC frequency inverter. The  vacuum pump and haul off motor use high quality product. According to different sizes of pipes, there are different designs of traction machine in two, three,four,six, eight, ten and twelve pedrails respectively. There are three designs of cutter in saw cutting,chipless cutting and planetary cutting with PLC control. KEBELN also porovide special machines for producing spiral pipe, hollow pipe and foam-core pipe in PP,PE PE-RT, PPR,PEX by exchanging suitable extruders and accessorial machines. Planetary cutting machine adopts fully automatic computer control, with convenient operation and reliable performance, reached the international leading level.



PPR pipe extrusion extruder machine

PPR cool and hot water pipe extrusion line is mainly used by single screw extruder for extruding the pipes with various tube diameters and the wall thickness which have been widely applied in the aspects such as the residential water-supply system, industrial-purpose water conveyance etc. In the international tube developing history, PP-R are the latest popularized goods.

They have the features such as low price, poison less, non-rust, heat-resistant, easy installation etc. The unit is mainly composed of the single screw extruder, vacuum forming table, spray box, extractor, stirring-up rack and so on.


Model	pipe range(mm)	extruder model	max. capacity(kg/h)	motor power(kw)	length of plant(m)
KBL-63PPR	16-63	KBD65-33	200	55	35
KBL-110PPR	20-110	KBD65-33	200	55	36
KBL-160PPR	50-160	KBD75-33	400	110	37
KBL-250PPR	75-250	KBD75-33	400	110	38
KBL-315PPR	160-315	KBD75-33	400	110	40
KBL-450PPR	160-450	KBD90-33	600	185	41
KBL-630PPR	315-630	KBD120-33	1000	280	56
KBL-800PPR	315-800	KBD150-33	1200	355	59
KBL-1200PPR	630-1200	KBD150-33B	1400	400	74

ABOUT US

Foshan Kebeln Plastic Machinery Co., Ltd is one of the leading manufacturers of plastic extrusion machines for pipes, profiles, sheets extrusion. It established in 2005. As one of the top China leading manufacturers, the annual production of Kebeln is up to 1000 units. We supply all kinds of extrusion lines equipped with different capacity of extruders with Chinese/English PLC automatic control system.

Core values

1.A deep concern for all customers
2.A unique way to conduct our business
3.A learning organization and continuous improving group
4.The  best teamwork and cooperation
5. The courage to assume responsobility for the work

CORPORATE VISION

1.kebeln  continues to expand its status in the southeast Asian market, strengthens in African, South America as well as our domestic competitive market.
2.Kebeln's aim: through continuously improve product quality, maximize use of resources and rapid response and flexible processing to the customer demand,operate and develop in the direction of the word.
3.About our employees, we will continue to provide  basic skills and advanced  skills training for staff,  provide  good  social benefits and promising career  development. Keep Kebeln as a reliable employer, for a long time.

OUR SLOGAN

 Kebeln extrusion Your partner in extrusion

If you are interested in our products, welcome to consult us, we will patiently answer for you
