Small Cheap Leather CO2 Laser Engraving Cutting Machine 600*400mm

• Application：Advertising Industry
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Nonmetal
• Laser Classification：Gaseous Laser
• Working Area：600*400mm

=== Base Info ===

• Model NO.：UG-6040L
• Laser Type：CO2 Sealed-off Laser Tube
• Rated Laser Power：60W( Efr 1200cl Model)
• Working Table：Honey Comb or Knife Strip
• Driver and Motor Type：Stepper Motor and Driver, Yako Brand
• Guide Rail：Linear Square Guide Rail, Taiwan Csk
• Control System：Ruida Rdc5121
• Software：Rdworks V8
• Cooling Type：Water Pump or Industrial Chiller Cw-3000
• Positioning：Infrared DOT Positioning
• Focusing：Manual Focusing
• Blow off：Air Pump and Air Fan
• Moving Holder：with
• Transport Package：Plywood Case
• Specification：1460*870*780mm, 100kgs, one plywood case packing
• Trademark：UPGOAL
• Origin：China
• HS Code：8456110090
• Production Capacity：250set Per Month

=== Description ===

Basic Info.

Model NO. UG-6040L Laser Type CO2 Sealed-off Laser Tube Rated Laser Power 60W( Efr 1200cl Model) Working Table Honey Comb or Knife Strip Driver and Motor Type Stepper Motor and Driver, Yako Brand Guide Rail Linear Square Guide Rail, Taiwan Csk Control System Ruida Rdc5121 Software Rdworks V8 Cooling Type Water Pump or Industrial Chiller Cw-3000 Positioning Infrared DOT Positioning Focusing Manual Focusing Blow off Air Pump and Air Fan Moving Holder with Transport Package Plywood Case Specification 1460*870*780mm, 100kgs, one plywood case packing Trademark UPGOAL Origin China HS Code 8456110090 Production Capacity 250set Per Month

Product Description

Small Cheap Leather Co2 Laser Engraving Cutting Machine 600*400mm

Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

Materials Can work With: Organic glass, acrylic board (the paulownia,  lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.

Features


Laser Head with infrared positioning & auto focusing

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted stable China high quality EFR brand 1200CL model 60W Co2 laser tube, long life time.

Working Table

Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

OR

Knife Strip Table:  With oxidation treatment and low reflection ratio Ensured cutting quality



Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and  Taiwan CSK linear guide rails and blocks with 3M belt ensured stable transmission, lower noise.



Operation System

Advanced USB port Ruida RD5121 DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Water pump or  industrial chiller CW-3000, ensuring the laser tube long time continuous working.

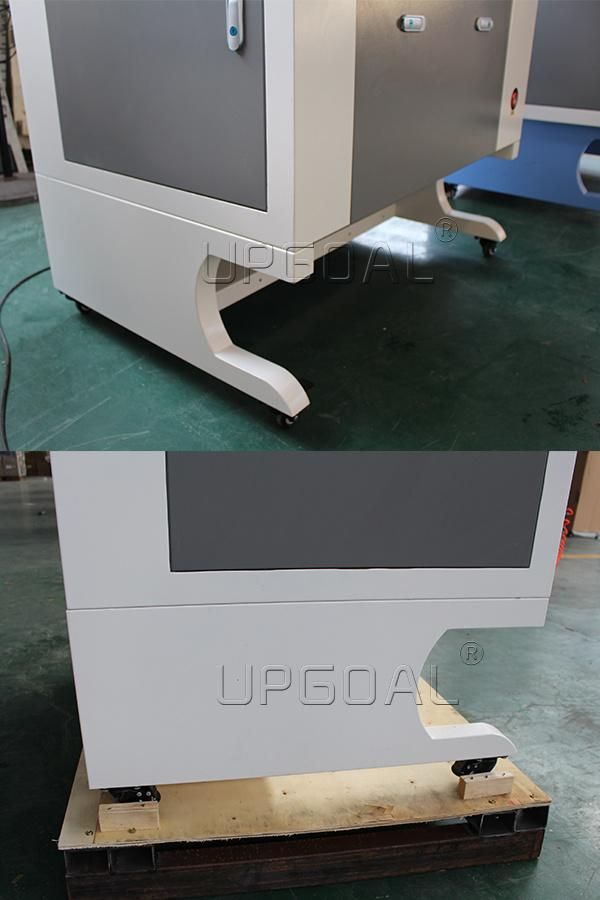

With moving holder
The holder with moving wheels, convenient for machine moving, one man can easy to move it.


Technical Parameters

Effective working area	600*400mm
Laser Type	Co2 sealed-off laser tube
Laser tube power	60W( EFR brand, 1200CL model, maximum 70W)
Working table	Knife strip
Driver mode	Stepper motor and Driver, Yako brand
Guide rail	Linear square guide rail ( CSK,Taiwan)
Transmission	Belt transmission
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	RD5121
Control software	RDWorks V8
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Water pump cooling( Optional industrial chiller CW-3000)
Water protection system	Yes
Blow-off system	Air pump and air fan
Biggest scanning accuracy	2500DPI
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage	AC 220V/110V, 50/60Hz, single phase
Certificate	CE/FDA

Packing

Reference Samples

Reference Working Videos

https://youtu.be/3rEpch0Y5Ew



                                                         For more information, just feel free to contact us!
