Small Portable Diamond and Spt Drill Rig

=== Base Info ===

=== Description ===

Basic Info.

Model NO. HPD50 Bit Type Diamond Bit Drilling Way Rotary Weight 160kg Power 2.2-6kw Transport Package Seaworthy Packing Specification 390X360X1200MM Origin China HS Code 84304900 Production Capacity 100sets/Week

Product Description

Small Portable Handheld Drilling rig in geological and mining, electric power survey, traffic detection, invert lining sampling, professional academic research

I. Rig Introduction:

HPD small portable (bagpack handheld) rigs are small and portable sampling drilling rigs, with drilling depth 10-30m in different borehole diameters.

It is mainly suitable for mountains, traffic and mining, energy inconvenient places. It is widely used in geological prospecting, electric power survey, traffic detection, invert lining sampling, professional academic research and other fields

It can not only do the sampling work, but also greatly reduce the destruction of vegetation and protect the environment. The use of this rig for sampling can replace traditional manual excavation, trenching and well exploration sampling.

II. Technical Specification

MODEL	50	25	20
Installation Type	Rig Stand Platform	Rig Stand Platform	Both Handheld and Rig Stand Platform
Drill Borehole Dia.	75MM	46MM	38MM
Drill Borehole Depth	30M	25M	20M
Drill Rod Dia.	42MM or 30MM	30MM	25MM
Roatation Speed (Max. Power)	353RPM(Low) / 740RPM(High)	454RPM(Low) / 963RPM(High)	1660RPM
Roatation Speed (Max. Torque)	255RPM(Low) / 535RPM(High)	228RPM(Low) / 695RPM(High)	1200RPM
Max. Torque	180N.M (Low Speed)	127N.M (Low Speed)	75N.M
Power	6KW, 3600RPM	4KW, 3600RPM	3KW, 3600RPM
Engine Type	Diesel or Petrol	Diesel or Petrol	Diesel or Petrol
Dimension	680X1200X1900MM	740X530X1600MM	390X360X1200MM
Weight	165KG	60KG	30KG

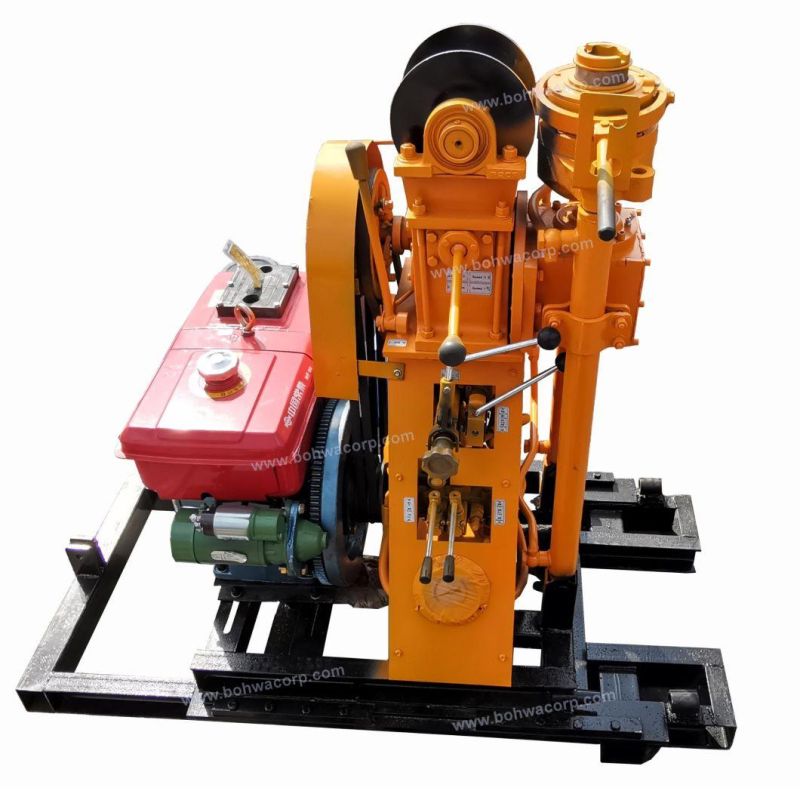

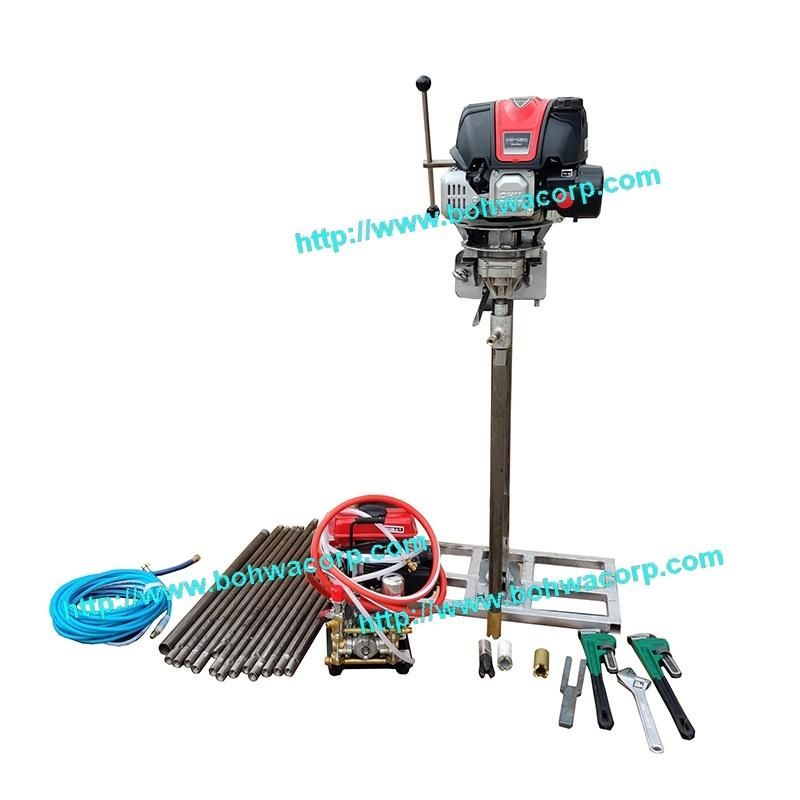

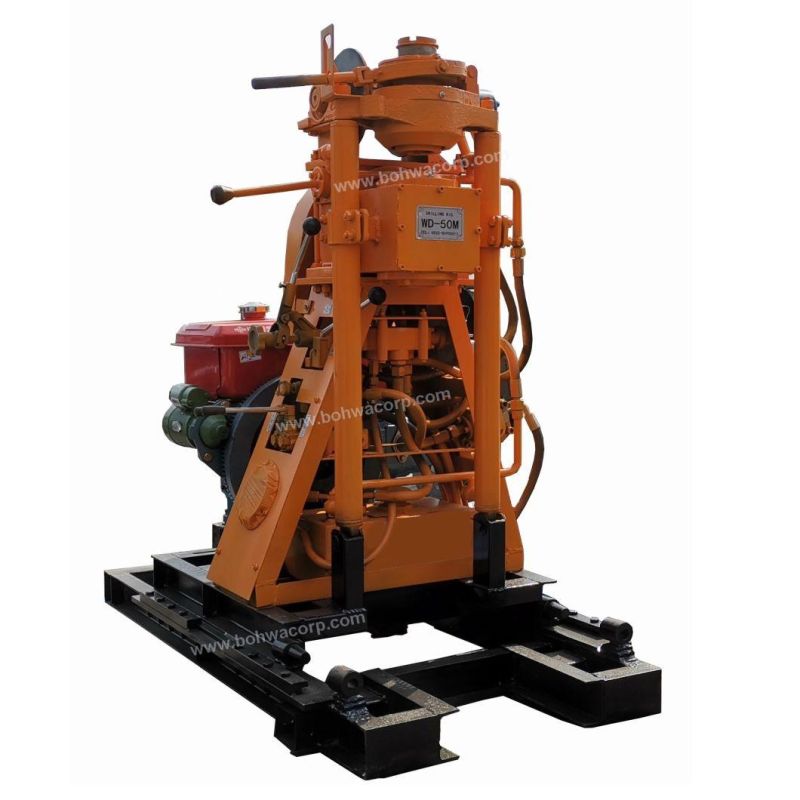

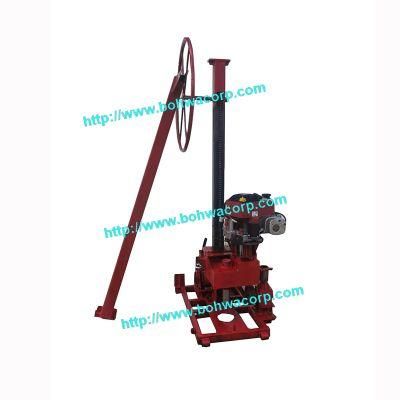

III. Machine Photos
