PE-200r Handheld 200W Fiber Laser Rust Removal Cleaning Machines

• After-sales Service：on-Line Support
• Power：200w
• Control Type：Screen Panel with Software
• Warranty：2 Years
• Power Supply：Voltage Single-Phase 220V±10%, 50,60Hz AC
• Placement Environment：Flat, No Vibration, No Impact

=== Base Info ===

• Model NO.：PE-200R
• Working Humidity：≤80%
• Optical Fiber Length：5 Meters (10 Meters Can Be Customized)
• Scanning Width：10-80mm
• Average Laser Power：≥200 W
• Average Output Power：>100 Watts
• Focusing Spot Diameter：1064nm
• Working Temperature：5ºC-40ºC
• Cooling Method：Water Cooling
• Transport Package：Professional Wooden Case
• Specification：780*450*760mm
• Trademark：Perfect Laser
• Origin：Wuhan China
• HS Code：84561000
• Production Capacity：5000PC Per Year

=== Description ===

Basic Info.

Model NO. PE-200R Working Humidity ≤80% Optical Fiber Length 5 Meters (10 Meters Can Be Customized) Scanning Width 10-80mm Average Laser Power ≥200 W Average Output Power >100 Watts Focusing Spot Diameter 1064nm Working Temperature 5ºC-40ºC Cooling Method Water Cooling Transport Package Professional Wooden Case Specification 780*450*760mm Trademark Perfect Laser Origin Wuhan China HS Code 84561000 Production Capacity 5000PC Per Year

Product Description

Handheld 200w Fiber Laser Rust Removal Cleaning Machines
(Model: PE-200R)
Contact: Emily

Product Description:
The handheld laser machine for rust removal is a new generation of high-tech products for metal surface rust cleaning.
The handheld laser machine for rust removal is easy to install and operate. The operation is simple, connect the electricity, turn on the machine, you can clean without any chemical reagents, medium, dust, and water.
The handheld laser machine for rust removal can remove the resin,oil, stains, dirt, rust, coating, plating, paint on the surface of the object.
The handheld laser machine for rust removal has the advantages of manual adjustment of the focus, surface cleaning, and high cleanliness of the metal surface.

Product Features:
1. The laser machine for rust removal adopts non-contact cleaning and doesn't damage the base of the parts.

2. The diy laser rust removal has the function of precise cleaning, which can achieve precise position, precise size and selective cleaning .
3. There is no need for any chemical cleaning fluid to clean the laser rust removal laser machine, no consumables, safe and environmentally friendly.
4. The operation is simple,diy laser rust removal can be hand-held or cooperated with a robot-arm to realize automatic cleaning.
5. The cleaning efficiency of the laser machine for rust removal is very high, saving time.
The laser rust removal laser machine is stable, maintenance free.


Laser Cleaning Machine Application:

Applicable Industries:
The laser rust removal laser machine is widely of the used in the ship-building industry, metal parts, rubber molds, high-end machine tools, tire molds, rail environmental protection industry,etc.

Applicable Scope:
The laser rust removal laser machine is widely applied in laser rust removal, paint removal, oil removal, oxide removal, screw cleaning, tire mold cleaning, welding seam cleaning, etc.

Machine Details:

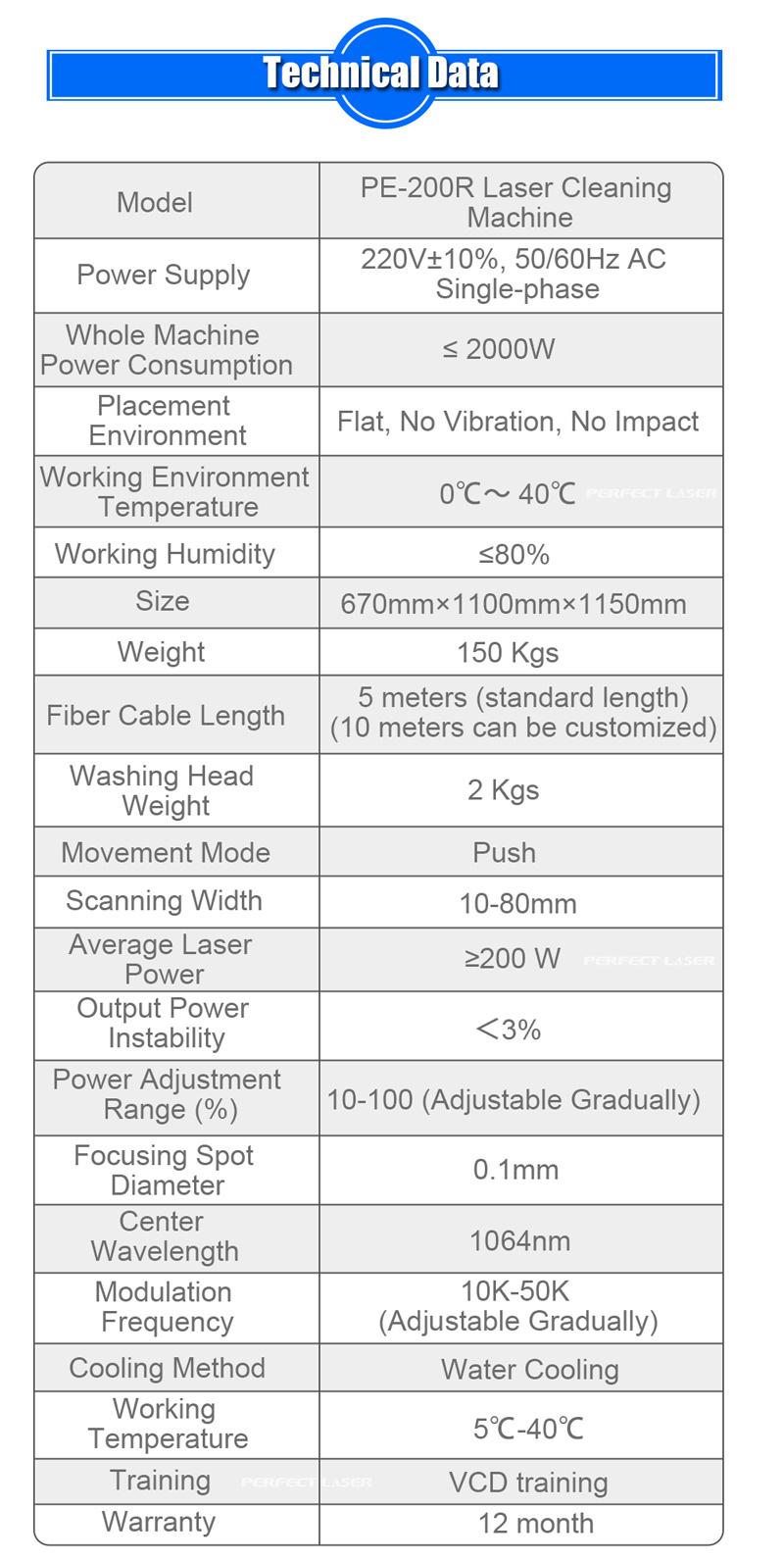

Technical Parameters:



Model	PE-200R Laser Rust Removal Laser Machine
Power Supply	Voltage Single-phase 220V±10%, 50/60Hz AC
Whole Machine Power Consumption	≤2000W
Placement Environment	Flat, No Vibration, No Impact
Working Temperature	0ºC~40ºC
Working Humidity	≤80%
Size	670mm×1100mm×1150mm
Weight	150 Kgs
Optical Fiber Length	5 Meters (10 Meters Can Be Customized)
Washing Head Weight	2 Kgs
Movement mode	Push
Scanning Width	10-80mm
Average Laser Power	≥200 W
Output Power Instability	<3%
Power Adjustment Range (%)	10-100 (Adjustable Gradually)
Focusing Spot Diameter	0.1mm
Center Wavelength	1064nm
Modulation Frequency	10K-50K (Adjustable Gradually)
Cooling Method	Water Cooling
Working Temperature	5ºC-40ºC
Warranted	12 month
Training	Perfect Laser offer VCD training for the machine. Engineer Oversea training is also available.(Charged additionally)

After-sale Service1. 3-year guarantee for laser source.
2. Full technical support by e-mail, call, and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staff.
