Handheld Fiber Laser Welding Machine 1000W Optical Fiber Laser Welder

• After-sales Service：Life Time Technical Support
• Warranty：2 Years
• Application：Electronic Industry, Automotive Industry, Manufacturing Industry
• Technical Class：Pulse Laser
• Control：Automatic
• Power Density：Heat Conduct Welding

=== Base Info ===

• Model NO.：HJZ-HWD-1000
• Laser Classification：Fiber Laser
• Type：Oscillating Mirror Welding Machine
• Package：Export Sea-Worthy Packing or Air-Worthy Packing
• Electrical Source：220V,50Hz,40A
• Positioning：Optional CCD Monitor + Red DOT Pointer
• Power Consumed：Less Than 9kw
• Standard Working Table：800*1000mm
• Product Name：Laser Spot Welding Machine
• Cooling System：Water Cooling
• Transport Package：Export Sea-Worthy Packing or Air-Worthy Packing
• Specification：1650X1250X1050MM
• Trademark：HZJLASER
• Origin：Wuhan, China
• Production Capacity：100sets,Month

=== Description ===

Basic Info.

Model NO. HJZ-HWD-1000 Laser Classification Fiber Laser Type Oscillating Mirror Welding Machine Package Export Sea-Worthy Packing or Air-Worthy Packing Electrical Source 220V/50Hz/40A Positioning Optional CCD Monitor + Red DOT Pointer Power Consumed Less Than 9kw Standard Working Table 800*1000mm Product Name Laser Spot Welding Machine Cooling System Water Cooling Transport Package Export Sea-Worthy Packing or Air-Worthy Packing Specification 1650X1250X1050MM Trademark HZJLASER Origin Wuhan, China Production Capacity 100sets/Month

Product Description

Strong Structure And Good Quality Welding Head Handheld Fiber Laser Welding Machine 1000W 1500W With Jpt or Raycus Laser Source for 3mm Stainless Steel/Handheld Laser Welding Machine/Laser Welder/Laser Sodering Machine
  The hand-held laser welding machine adopts a new generation of fiber lasers and is equipped with self-developed laser welding heads. It has the advantages of simple operation, beautiful weld seam, fast welding speed and no consumables. Welding of metal materials such as plates, iron plates and galvanized plates. It is 3-10 times the speed of conventional argon arc welding plasma welding, power consumption is 10-20% less than traditional process, save 2-3 labor costs.







Features:

Safety:
t has the laser beam output control, only when the welding head touches the metal surface,the machine can work,It can meet the CE and safety standard.

Performance:
Welding beam energy distribution, have the best spot for welding needs.

Material:
Applicable to all kinds of complex welding, welding of various devices, and 5mm sheet welds.

Convenience:
welding flexibility and convenience, up to 5 m optical fiber, can be equipped with 8 m fiber optic.

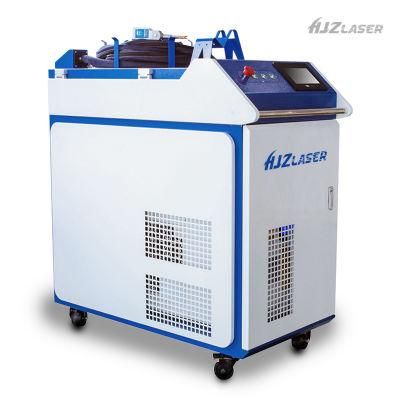

Product Picture





Product Advantages:

1) Simple operation: The handheld laser welding machine is easy to learn and use, and the operator can easily achieve high-quality welding results.

2) High welding efficiency: Hand-held laser welding is fast, which is more than twice that of argon arc welding. It can easily double the production efficiency on the basis of saving 2 welding workers.

3) Welding without consumables: In most people's impression, the welding operation is "left hand goggles, right hand clamp welding wire". But with the handheld laser welding machine, So Easy, the welding can be easily completed without wire filling during the operation, which reduces the material cost in production and processing.

4) Good welding effect: Hand-held laser welding is hot-melt welding. Compared with traditional welding, laser welding has a higher energy density and can achieve better welding results.

5) High energy efficiency conversion: People who don't understand, after knowing the effect of laser application, will naturally wonder whether the energy consumption of laser equipment is very high. The fact is just the opposite. The photoelectric conversion efficiency of the laser is as high as 30%, and the energy consumption is lower.

6) Convenient and flexible to use: Hand-held laser welding, no fixed-point workstation, free and flexible, and a wide range of reach.

7) The welding seam does not need to be polished: after traditional welding, the welding point needs to be polished to ensure smoothness and not roughness. The hand-held laser welding precisely reflects more advantages in the processing effect: continuous welding, smooth and no fish scales, beautiful and no scars, and less subsequent polishing procedures.



Advantage Comparison


Comparison process	Tradition Welding	Fiber Laser Welding	Our HJZ Laser Welding
Heat input to the workpiece	Very High	Low	Low
Deformation of the workpiece, undercut	Big	Small	Small
Bond strength to base metal	General	Good	Very Good
Follow-up	Polish	No polish, or rarely polish	No polish, or rarely polish
Weld Speed	General	More than 2 times argon arc welding	More than 2 times argon arc welding
Applicable Material	Stainless steel ,Carbon steel, Galvanized sheet	Stainless steel, Carbon steel, Galvanized sheet	Stainless steel, Carbon steel, Galvanized sheet
Consumables	Need more consumables	Seldom need  consumables	Seldom need consumables
Operation	complex	Normal	Simple
Operator safety	Unsafe	Safe	Safe
Environment protection	Not environmentally friendly	Environmentally friendly	Environmentally friendly
Welding fault tolerance	Excellence	Not good	Excellence
Wobble welding	No	No	Yes
Spot width adjustable	No	No	Yes
Welding quality comparison	Worse	Normal	Very Good

Performance and Technical Parameters

1. Technical Parameters


Serial No.	Specification Detail	Parameters
1	Device Name	Hand held fiber laser welding machine
2	Laser Power	500W,800W,1000W,2000W,3000W
3	Laser Wavelength	1070 NM
4	Fiber Length	Standard length: 10M   Longest length(support): 15M
5	Working Mode	Continuous / Modulation
6	Welding Speed Range	0~120 mm/s
7	Water Chiller	Industrial thermostatic water tank
8	Working Environment Temperature	15~35 ºC
9	Working Environment Humidity	< 70%   No condensation
10	Welding Thickness Eecommendations	0.5-3mm
11	Welding gap requirements	≤0.5mm
12	Operating Voltage	AC 220V


2.Welding penetration Melt depth data (wobble welding head):

Industry application

The hand-held laser welding machine can be widely used in complex and irregular welding processes in cabinet, kitchen and toilet supplies, stairs, elevators, shelves, ovens, stainless steel doors, and windows, guardrails, electric cabinet, stainless steel furniture and other industries.


Packing Detail






FAQ

Q1: What type of the machine suitable for us?

Please tell us what products, material, size, thickness will be welded , we will advise you the suitable model machines. If you can provide products picture, it is better.

Q2: If we do not know how to use the machine,can you teach us?

Yes, we will. Our user manuals are together with goods shipment. We can also send operation video to you for study.

If you come to our factory in China, our technicians will offer you free training until you can use machine freely.

Our professional engineer can come to your country for trainning, installation, adjusting, ect.

Q3: How about the delivery time?

For standard machine, lead time is 10-15 days.
Regarding customized machine, we need to check with technicians.

Q4: How about the warranty time?

Our laser welding machine warranty time is 12 months. Please send back the broken parts to us, we will send the new and replaced one to you. We suggest you take one extra set of spare parts together with your order which will be more convinient for your production line continurous running.
