UPVC Pipe 50mm-200mm Making /Manufacturing Extrusion Line

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SJSZ-80/156 &SJSZ-65/132 Customized Customized Condition New After-sales Service Oversea Installation & Debugging Transport Package Wooden Packing Specification 50-200mm Trademark Trusty Origin Qingdao HS Code 84772090 Production Capacity 30 Set/Month

Product Description

high quality PVC/UPVC pipe extrusion machine line

1.Company Profile
 Qingdao Trusty Plastic Machinery Company is a scientific and technological knowledge intensive enterprise, which is specialized in scientific research, development, manufacturing, sales and service of plastic processing complete sets of equipment and manufacturing.
We have a profound understanding on plastic process and plastic machinery and the accumulation of experience, to ensure the production of plastic machinery have high quality and high performance.
 2.Production Introduction

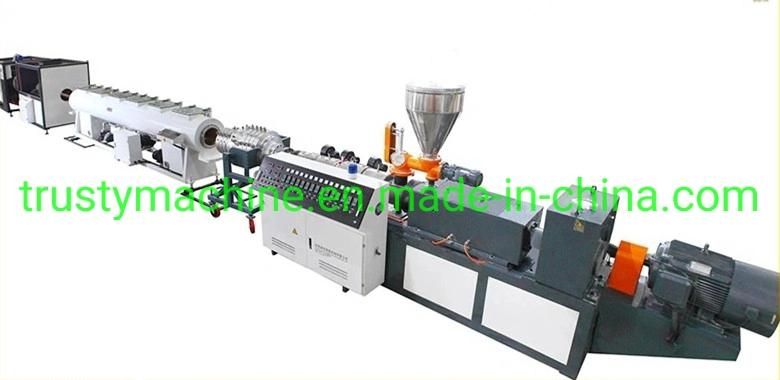

  PVC  pipe extrusion line is mainly used for producing the pipes,which diameter from 50mm to 200mm.This production line consists of mixer,feeder,twin screw extruder,extruding mould,shaper , vacuum tank, haul-off with caterpillar,automatic cutter, roll over table.






The high-quality haul off with caterpillar pulls the pipe at a constant speed.The automatic cutter saves the labour.This production line produces pipes with  reliable and guaranteed quality .




Main parameter of PVC pipe production line extruder machine


Extruder model	SJSZ-50/105	SJSZ-55/110	SJSZ-65/132	SJSZ-80/156	SJSZ-92/188
Driving motor (kw)	15	37	37	55	90
Pipe diameter range(mm)	16-40	20-110	50-200	200-400	400-630
Water pump	3kw	4kw	5.5kw	5.5kw X 2pcs	7.5kw X 2pcs
Vacuum pump	2.2kw X 2pcs	4kw	4kw	4kw X 2pcs	7.5kw 5.5kw X 2pcs
Caliber Length(mm)	5000	6000	6000	8000	6000, 3000
Water cooling tank	No	No	5000	6000	10000
Hauling motor	0.75kw 4pcs	2.2kw	3.7kw	7.5kw	18.5kw
Hauling belt	4pcs	2pcs	2pcs	4pcs	6pcs
Cutting motor	1.1kw 2pcs	2.2kw	3.7kw	3.7kw	3.7kw
Inverter brand	ABB	ABB	ABB	ABB	ABB

Photos for main parts of the PVC pipe extrusion line as followings:

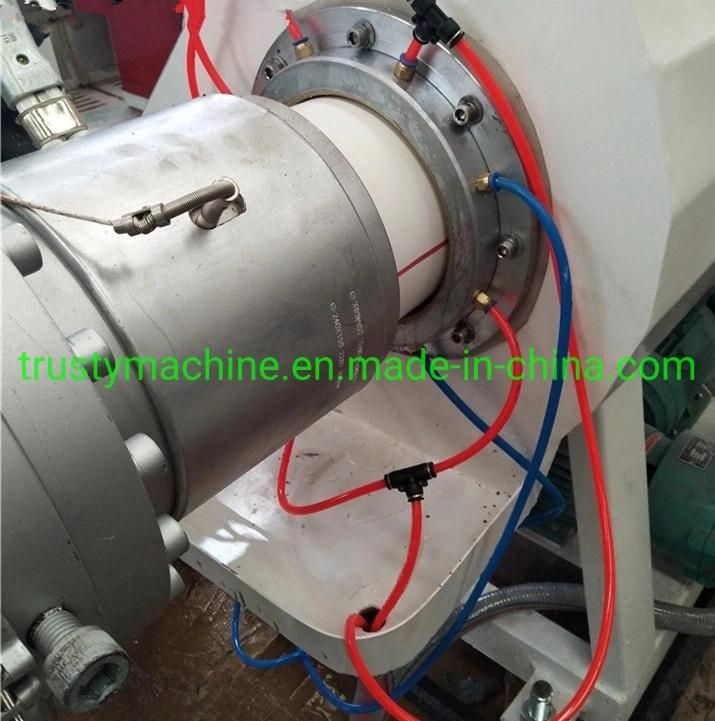

1)PVC pipe mold :

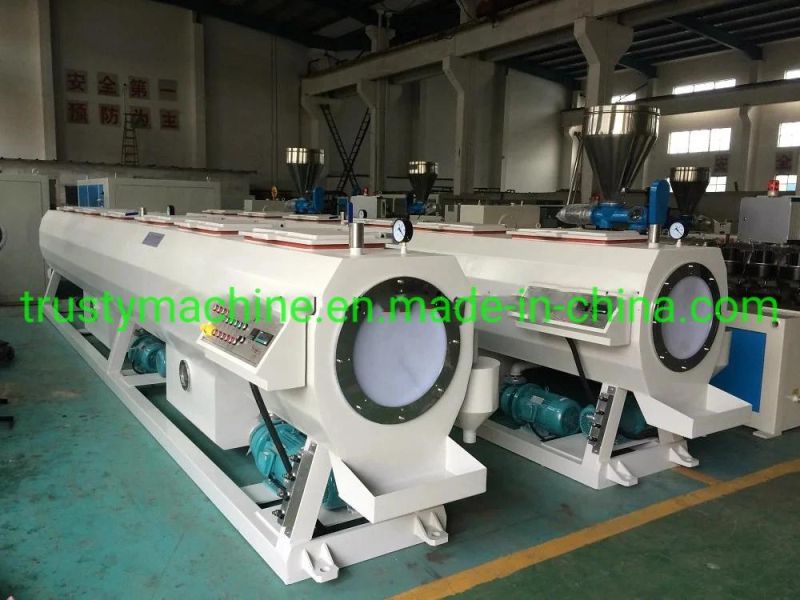

2)PVC vacuum water tank

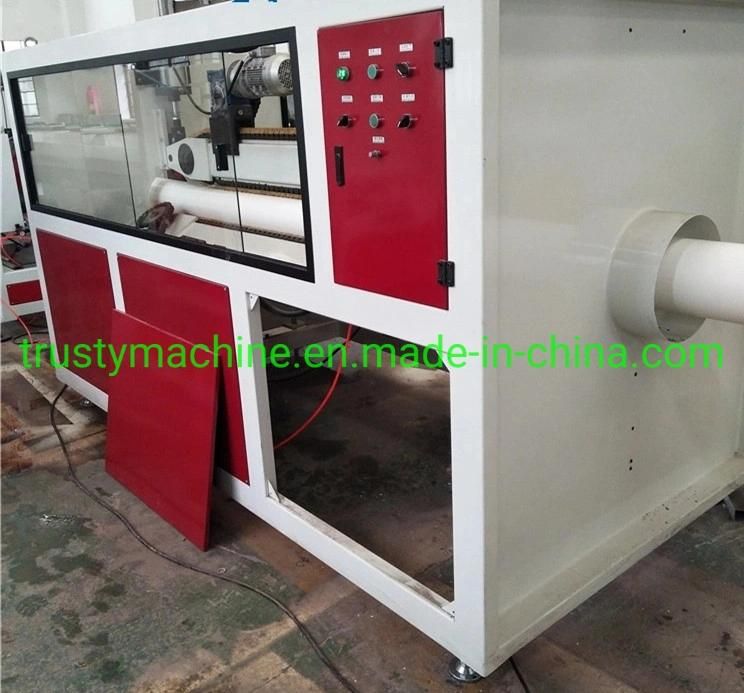

3)PVC 3 caterpillars haul-off machine

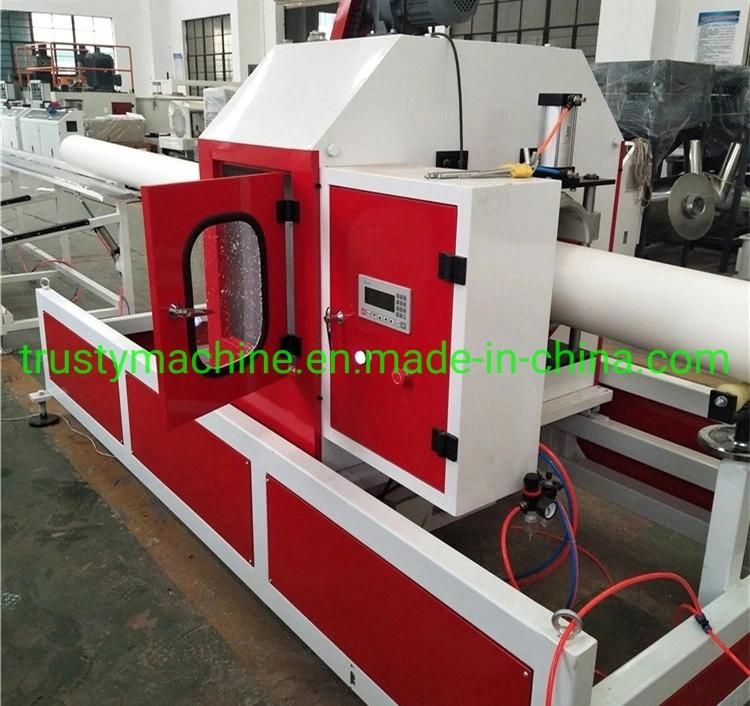

4)PVC pipe planetary cutter



 3.Production Process

Mix the material→Feed→Extrude→Customize→Haul off→Cut→Stack the material →Crush→Mill

4.After sales service

(1)After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine, we will test the machines and send the sample to buyer.
(2)After shipment, the seller will send one or two technicians to the buyer' s factory to help the buyer install the machine and train workers for buyer.
(3)We will supply all electricity drawing, machine installation drawing.
(4)When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays, and other items which is easier broken.
