200m Multi-Functional Crawler Water Well Drilling Rig (S200)

=== Base Info ===

=== Description ===

Basic Info.

Model NO. S200 Drilling Way Compound Type Drilling Machine Rig Type Crawler Type Drilling Depth 200m Drilling Diameter 90-300mm Weight 7100kg Mining Object Coal Machinery Usage Water Well Power Type Diesel Transport Package Seaworthy Packing Trademark Glorytek Origin China Production Capacity 20 Sets/Month

Product Description

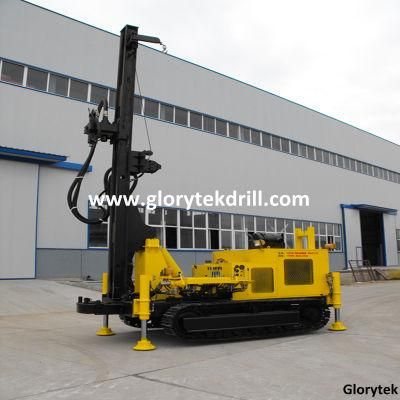

Multi-Functional Crawler Water Well Drilling Rig

S200 Multi-functional crawler well drill rig is a new, highly-effective, energy-saving and multi-functional hydraulic drill and it is specialized in drilling well, monitoring well, geothermal air-conditioning hole, grouting hole of the hydropower cofferdam, grouting hole for dyke seepage control and grouting hole for base enforcement, surface mining, anchorage, national defense project and other drilling operations; In addition, it adopts the process of down-the-hole impact and breast wall drilling with casing following, which can effectively solve the technical problem of difficult hole-forming in the unconsolidated layer, the drill is equipment with hydraulic motor rotation with a high power, propulsion and lifting of cylinder and down-the-hole hammer with high blast pressure, to realize high effectiveness of drilling footage and low energy consumption.


Drilling diameter	Φ 90-Φ 300mm	Min. terrain clearance	300mm
Drilling depth	200m	Speed of turn-aroud machine	0-100rpm
Moving speed	2km/h	Max. turn-aroud	5400N. m
Applicable rock hardness	F=6-20	Max. lifting force	80000N
Working air pressure	1.2-3.0Mpa	Lifting speed	17m /min
Air consumption	11-35M3/min	Climbing angle	21°
Max. dip of sliding framework	95°	Outer size (L*W*H)	6000*2100*3200
Sliding framework stroke	3400mm	Weight	7100kg
