High-Speed PE Film Extruder with Rotary Die Head

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SJ-65 Automation Automatic Computerized Non-Computerized Machine Weight 3.5t Certification CE, ISO9001:2008 6600mm*3500mm*5200mm Capacity: 100kg/H Transport Package in Wooden Box Specification CE Trademark Chuangli Origin Ruian, China HS Code 8477209000 Production Capacity 30sets/Month

Product Description

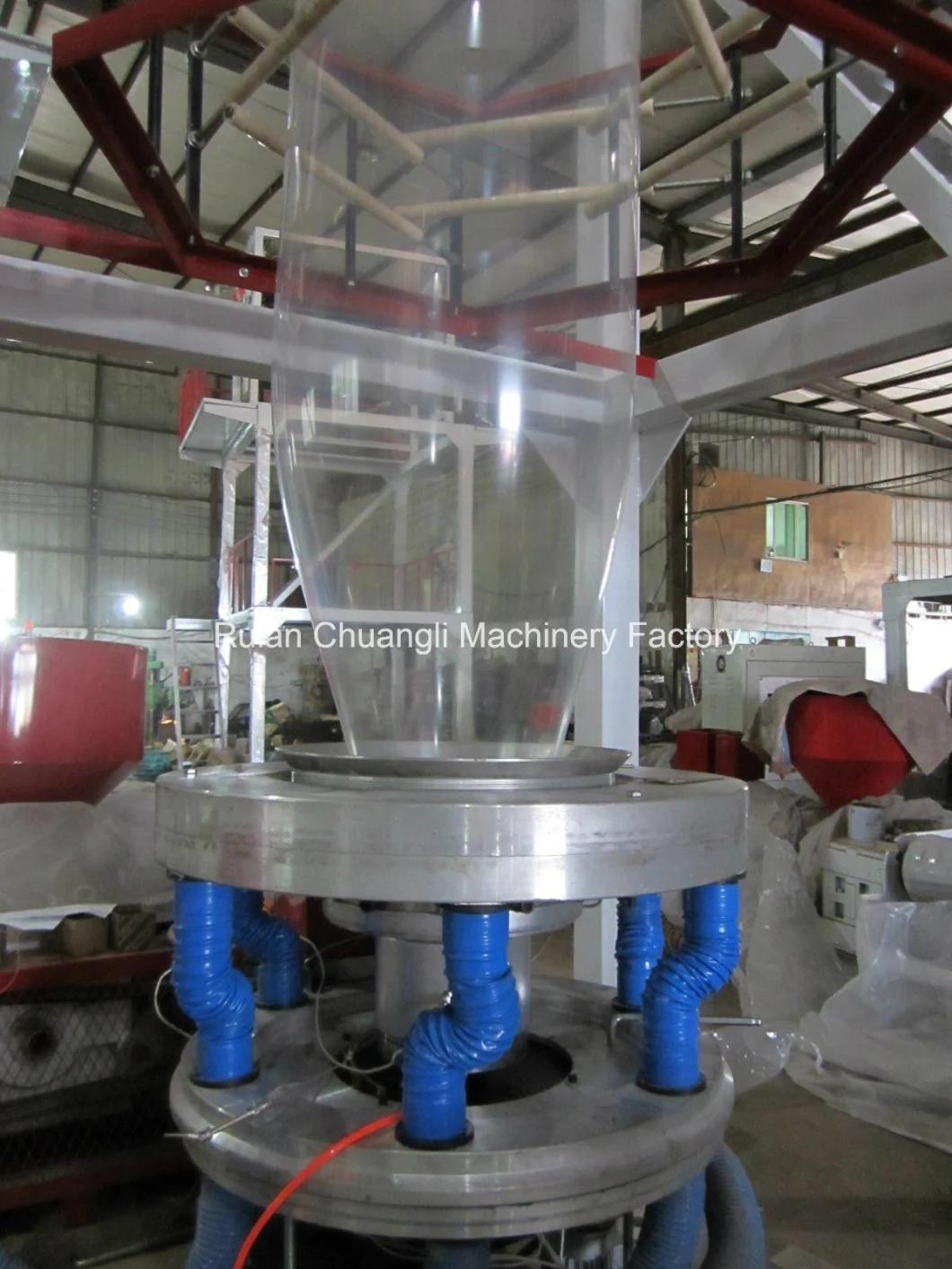

High-Speed PE Film Extruder with Rotary Die Head is used to produce HDPE/LDPE film with high speed.
Main technical parameters:

Model	SJ-H50	SJ-H55	SJ-H65
Screw Diameter	50mm	55mm	65mm
Screw Ratio(L/D)	30:1	30:1	32:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min
Power of Main Motor	18.5Kw	30Kw	37Kw
Main Output	60kg/h	80kg/h	100kg/h
Max. Folding Width of Film	600mm	800mm	1200mm
Single-sided Thickness of Film	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Total Power	38Kw	45Kw	52Kw
Weight of Machine	2.3T	2.8T	3.5T
Overall Dimensions	5200*2100*4500mm	5500*2500*5000mm	6200*3200*5500mm
