- After-sales Service:Online Service
- Warranty:1 Year ,2year
- Process:Frozen and Chilled
- Power Source:Electric
- Certification:CE, ISO9001
- Automatic Grade:Automatic
=== Base Info ===
- Model NO.:KQ
- Application:Milk, Yogurt, Milk Powder, Cheese
- Name:Stainless Steel 1000L 2000L 3000L 4000L Milk Chil
- Capacity:100L to 10000L
- Materials:Stainless Steel 304 ,316
- Air Compressor:Copeland , Maneurop
- Refrigerant:R404 ,R22
- Function:Cooling and Storage Fresh Milk
- Cleaning:CIP Cleaning Ball
- Surface Treatment:Mirror Polished
- Mixer Speed:36rpm
- CIP Cleaning Ball:Provided
- Milk Cooling Tank Working Life:More Than 10years
- Motor Brand:Siemens ,ABB,China Brand
- Packing:Wooden Box
- Working Life:More Than 10 Years
- MOQ:1set
- Transport Package:Wooden Box
- Specification:SANITARY, FOOD GRADE
- Trademark:KQ
- Origin:Shanghai, China
- HS Code:8479820090
- Production Capacity:1000 to 10000L
=== Description ===
Basic Info.
Model NO.
KQ
Application
Milk, Yogurt, Milk Powder, Cheese
Name
Stainless Steel 1000L 2000L 3000L 4000L Milk Chil
Capacity
100L to 10000L
Materials
Stainless Steel 304 /316
Air Compressor
Copeland / Maneurop
Refrigerant
R404 /R22
Function
Cooling and Storage Fresh Milk
Cleaning
CIP Cleaning Ball
Surface Treatment
Mirror Polished
Mixer Speed
36rpm
CIP Cleaning Ball
Provided
Milk Cooling Tank Working Life
More Than 10years
Motor Brand
Siemens /ABB/China Brand
Packing
Wooden Box
Working Life
More Than 10 Years
MOQ
1set
Transport Package
Wooden Box
Specification
SANITARY, FOOD GRADE
Trademark
KQ
Origin
Shanghai, China
HS Code
8479820090
Production Capacity
1000 to 10000L
Product Description

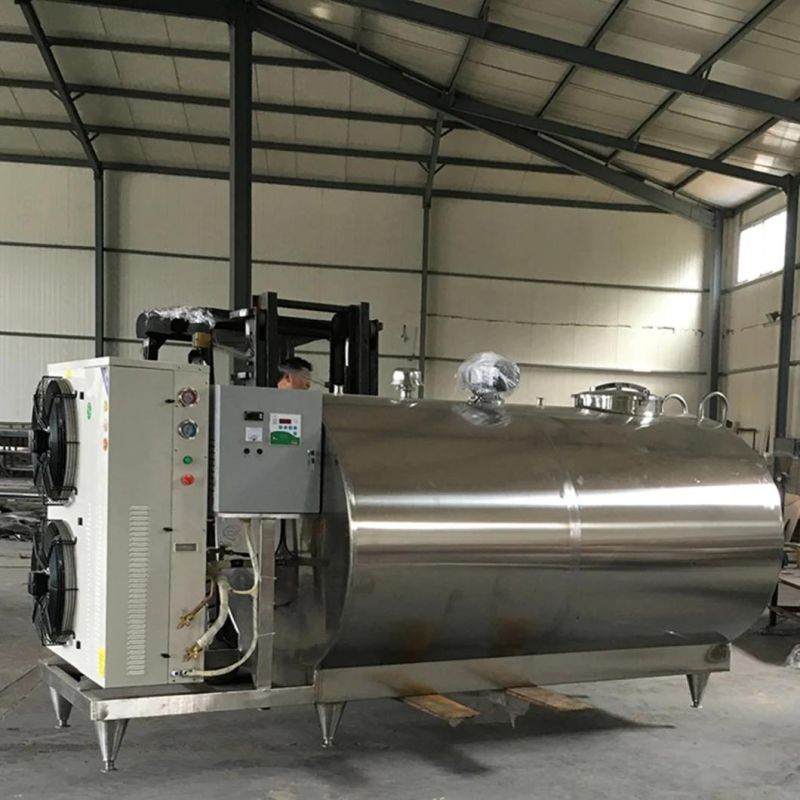

Stainless Steel 1000L 2000L 3000L 4000L Milk Chilling Cooling Vat
design for milk cooler price for milk industry
MIlk chiller tank 500L to 10000Litres.
milk directly cooling tank for cow farms
MILK COOLER
USA COPELAND COMPRESSOR:
Type | KQ-1T Vertical type | KQ-2T Laying type | KQ-3T Laying type | KQ-5T Laying type | KQ-6T Laying type | KQ-8T Laying type | KQ-10T Laying type |
Capacity( L) | 1000 | 2000 | 3000 | 5000 | 6000 | 8000 | 10000L |
Refrigerating Output (W) | 9000 | 15000 | 22000 | 37000 | 38000 | 55000 | 74000 |
Refrigerating Fluid(R) | R404/R22 | R404/R22 | R404/R22 | R404/R22 | R404/R22 | R404/R22 | R404/R22 |
Insulating Property | ≤ 1C/4h | ≤1C/4h | ≤1 C /5h | ≤1 C /5h | ≤1 C /5h | ≤1 C /5h | ≤1 C /6h |
Agitator Speed | 36r/min | 36r/min | 36r/min | 36r/min | 36r/min | 36r/min | 36r/min |
Power (Kw) | 3.8 | 5.9 | 7.5 | 10.5 | 11 | 13 | 19.2 |
Voltage | 380V/50Hz,3phases | 380V/50Hz,3phases | 380V/50Hz,3phases | 380V/50Hz, 3phases | 380V/50Hz, 3phases | 380V/50Hz, 3phases | 380V/50Hz, 3phases |
Dimension(mm) | 1800*1200*1500 | 3400*1550*1750 | 3600*1700*1900 | 3900*2050*2150 | 4500*2050*2150 | 6300*2050*2250 | 8000 * 2100 * 2400 |
Weight(Approximately) | 0.6T | 0.75T | 0.9T | 1.1T | 1.3T | 1.8T |
Milk Chilling Tank, You Can Buy Various High Quality Milk Chilling TankProducts from
Milk cooling & storage. Milk cooling & storage cooling tank and control unit. Rapid and efficient milk cooling is essential for preserving milk qualityrefrigerant tank
Milk Vat from Milk Cooling Tank
Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.
The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device.
Stainless Steel 1000L 2000L 3000L 4000L Milk Chilling Cooling Vat
