20L Plastic Blowing Machine Barrel Pet Bottle Blowing Mold Machine with CE

=== Base Info ===

=== Description ===

1.Bottle making machine JS-600D With touch screen, Use Festo ( German brand) , SMC (Japan brand ) & Parker ( U.S.A Brand) pneumatic components. PLC use Mitsubishi (Japan brand)

2.Nontoxic conveyor belt to carry preforms
3.Produce PET Bottles ( such as: wine, beverage, soybean, vinegar bottles and so on)
4. Easy to maintain
5. Infrared lamps
6.High safety. high speed with high efficiency.
7.Manual saving, one man is enough for operation the machine.
8.Stable performing with easy maintaining.
9.Imported PLC controlling and man-machine interface computer.
10.Japan Omron inspection sensor.
11.Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
12.Power saving design that can increase your profits.
13.Segregate type air controlling system, which is designed for avoiding waste pollution.

Technical Reference Machine Modle  JS600 JS600JJS600B  JS600C JS600D PCS/H  600-900 600-900 500-900 350-700 300-500 BOTTLE VOLUME L 0.2-5 0.2-5 0.2-5 1-10 10-20 PREFORM INNER DIAMETER MM 15-120 15-120 63 55 110 MAX.BOTTLE DIAMETER MM 20-180 20-180 20-180 20-210 110 MAX.BOTTLE HEIGHT MM 350 350 350 450 300 CAVITY PC 1 1 1 1 1 MAIN MACHINE SIZE M 2.5*1.5*2 2.5*1.5*2 2.5*1.5*2 2.5*1.5*2 3.6*1.7*2.5 WEIGHT T 2.5 2.5 2.5 2.5 3.8

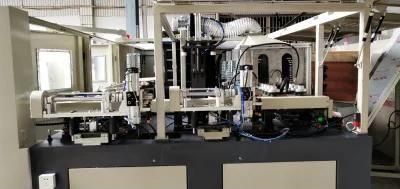

Internal details of the Machine
